1 Ton CM BatteryStar Portable Chain Hoist, Rigid Hook, 20' Lift, Part No BCC1008R201US

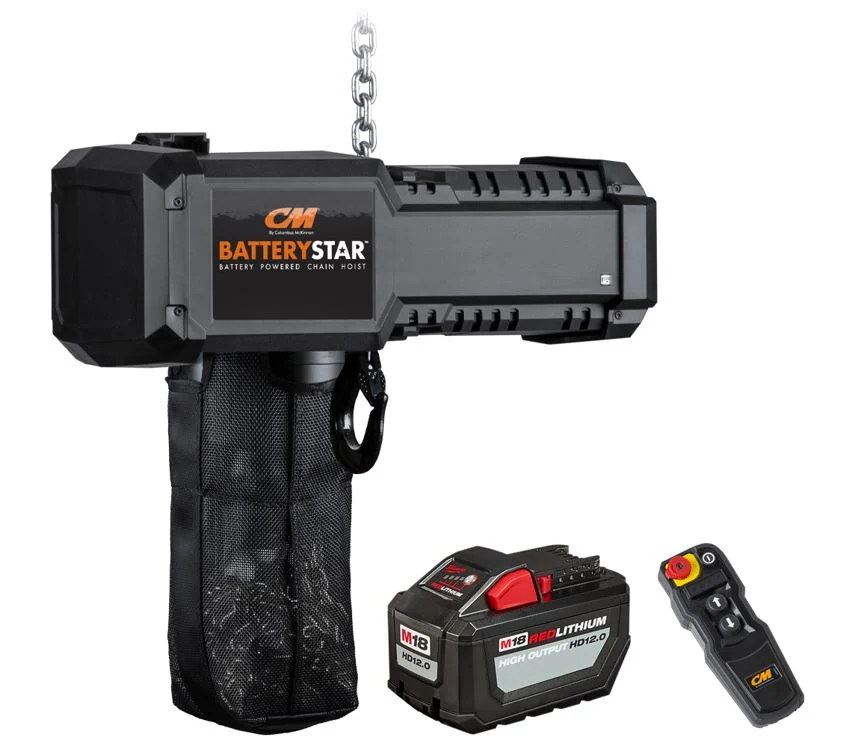

Battery-powered chain hoist combining electric hoist performance with portable design. Features wireless remote control, Milwaukee M18™ power system, and true variable speed operation for precise industrial lifting.

Manufacturer: CM (Columbus McKinnon)

Availability: In stock

SKU: BCC1008R201US

Manufacturer part number: BCC1008R201US

Lead Time (subject to change, call to verify): typically ships in 7-10 business days

Lift *

20 ft. / 6.096 m

Lifting Speed *

8 fpm

Hoist Suspension *

Rigid Top Hook

Chain Container *

Fabric Chain Container Included

$3,012.00

Qty:

Documents, Drawings, and Manuals

Brochure

CM BatteryStar Hoist Brochure

Manual

CM BatteryStar Hoist Manual

Spec Sheet

CM BatteryStar Hoist Spec Sheet

FAQ

CM BatteryStar Hoist FAQ Sheet

Products Specifications

Attribute name	Attribute value

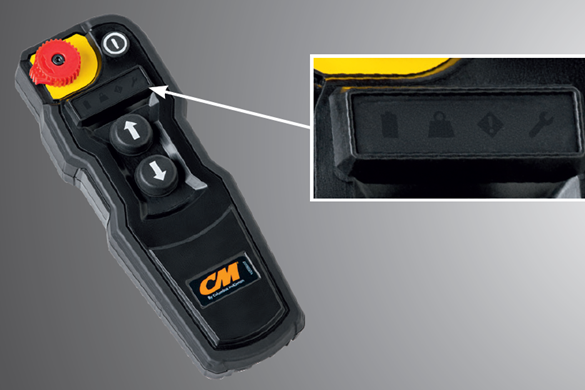

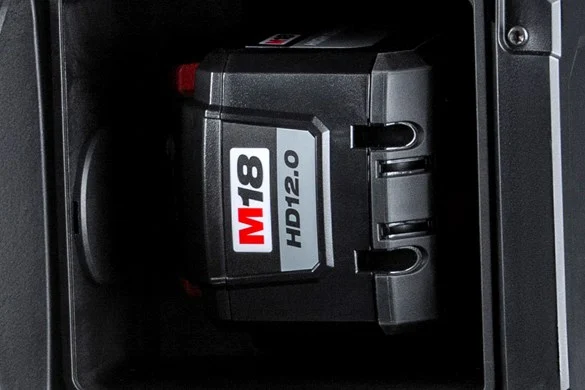

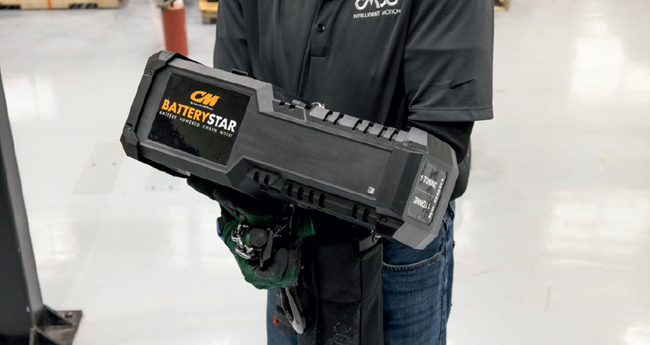

Features	Capacity: 1 Ton Headroom: 14.6 in. Approximate Weight: 47 lbs. Lift: 20 ft. Lift Speed: 8 FPM Suspension Type: Rigid Latch Type Hoist Rating: IP55 Pendant Rating: IP55 The CM BatteryStar is a battery-powered chain hoist engineered for maximum portability and lifting efficiency. Provides the lifting strength and speed of an electric hoist, combined with the flexibility of a manual hoist, without requiring a power cord. Ideal for temporary applications, maintenance, construction, and entertainment, among other uses. Features versatile mounting configurations supporting both standard and inverted installations for enhanced rigging flexibility. Battery Powered - Operates on a Milwaukee Tool® M18™ battery for cordless portability. Portable Design - Weighs under 50 lbs for easy transport and quick setup. Wireless Remote Control - Allows for safe operation up to 60 ft away, with indicators for battery, overload, and inspection needs. Variable Speed Lifting - Provides precise control of lifting and lowering speeds. Patent-Pending Brake System - Features a mechanical brake for controlled descent and easy brake wear inspection.
Warranty	5-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Made in the USA
