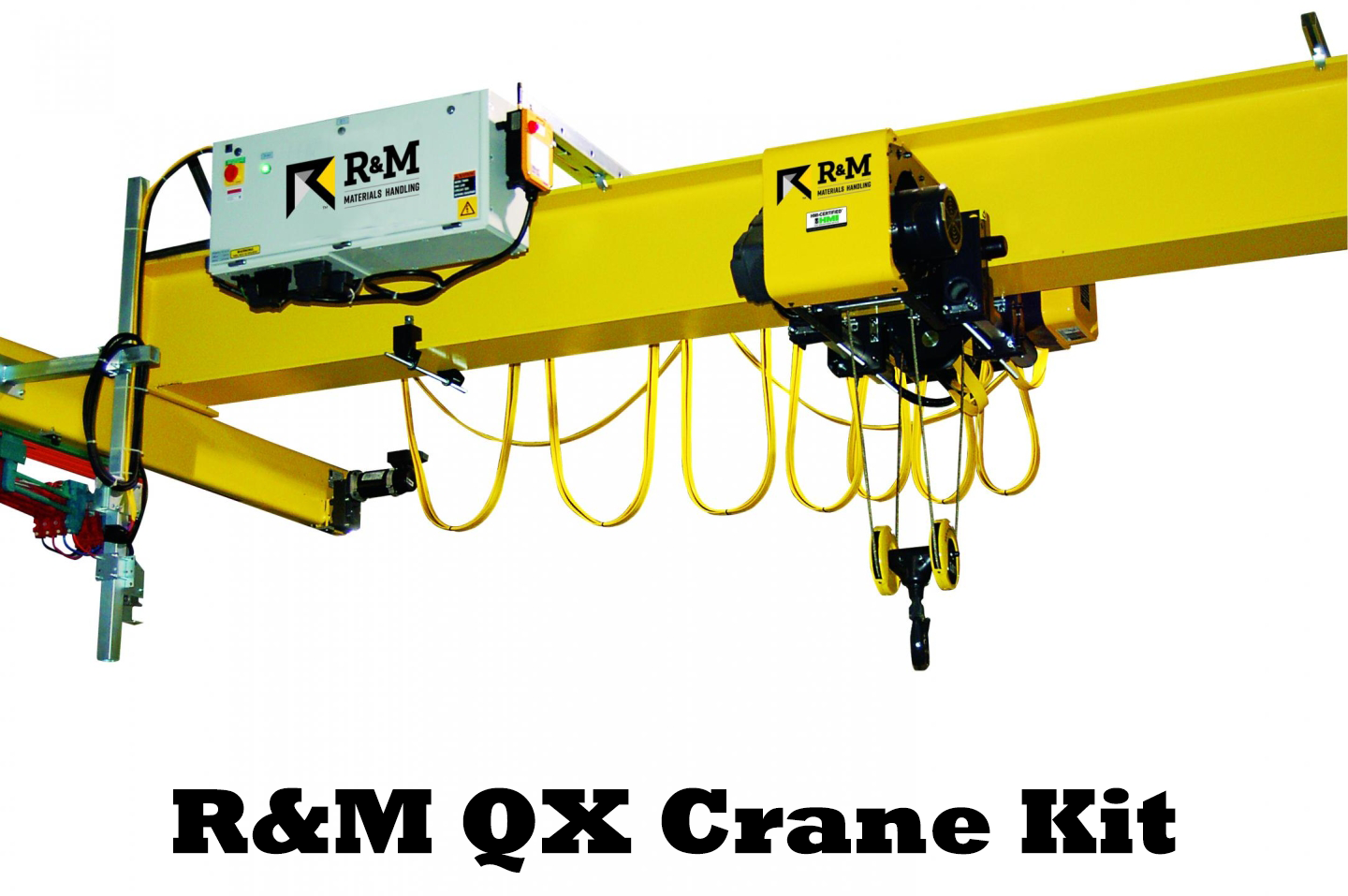

7 1/2 Ton R&M QX Overhead Crane Kit, 30 Foot Span

The QX Overhead Crane Kit is a complete crane system from R&M Materials Handling. It features their top-rated Spacemaster SX wire rope hoist and is designed to work as a complete system, with all components optimized together for your specific needs.
Manufacturer: R&M Materials Handling
Availability: In stock
SKU: RM-QX-7.5T-30F
Manufacturer part number: RM-QX-7.5T-30F
Lead Time (subject to change, call to verify): typically ships in 20-25 business days
*
*
$31,709.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals
Products Specifications
Attribute nameAttribute value
Features
  • Specifications
    • Capacity: 7 1/2 Ton
    • Span: 30 ft
    • Available Lift: 29 ft 6 5/16 in
    • Hoisting Speed: 20.0/3.2 ft/min 2-speed
    • Traversing Speed: 65 ft/min Stepless
    • Traveling Speed: 100 ft/min Stepless
    • Weight of Trolley: 1,440 lbs
    • Runway Rail Size: ASCE30
    • Crane Classification: CMAA Class C
    • Hoist Group: ASME H4
    • Crane Drive Group: CMAA C
    • Main / Control Voltage: 460 / 115 V; 60 Hz
    • Supply Power: 16.64 Hp
  • Includes
    • Spacemaster SX Wire Rope Hoist with Motorized Trolley
    • Motorized End Trucks
    • C-track Festoon Electrification System with Flat Cables

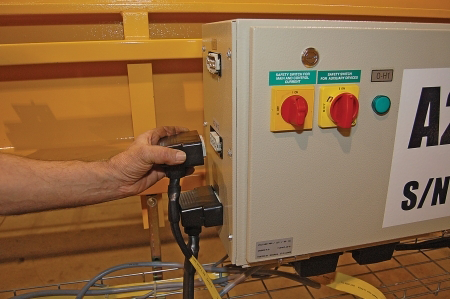

    • Bridge Panel
    • PRQ Push Button Station
  • Not included
    • Structural Steel - Main Girder, Crane Service Platform, Runway Rails etc.
    • Crane Runway Power Supply (unless otherwise stated in this offer)
    • Spare Part Package
  • Hoist is 2 speed contactor controlled.
  • VFD Bridge and trolley.
  • HoistMonitor or HoistWatch load monitoring system.
  • Standard inverter controls for trolley and bridge for reduced load swing.
  • NEMA 4 type rated control enclosures.

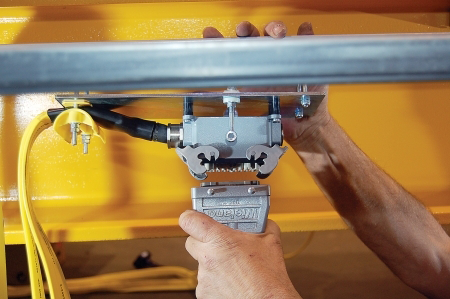

  • Plug-in connections for easy assembly and maintenance.
