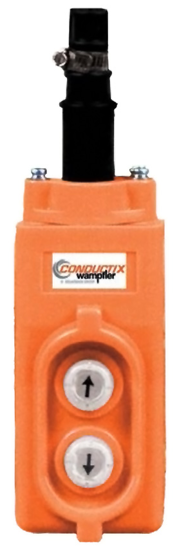

Conductix 20 Series 2-Button Pendant, for Direct Reversing Operation, Part No XA-35244

Manufacturer: Conductix-Wampfler
SKU: XA-35244
Manufacturer part number: XA-35244
Lead Time: typically ships in 2-3 business days
Documents, Drawings, and Manuals
Products specifications
  • Suited for one-hand operation.
  • Insulated for operator safety.
  • Standard "CBVS" stepped bushing is included. Cable Dia.: 0.31-0.62 in. (8 to 16 mm) / Optional "C18" one size bushing not included. Cable Dia.: 0.68-0.72 in. (17.2 to 18.3 mm)
  • Approximate Shipping Weight: 1.14 lbs.
  • Color: Safety Orange
  • Dimensions: 9.03" (229 mm) x 2.50" (64 mm) x 3.00" (76 mm)
  • UL/cUL Listed: File E193531
  • Clear button covers Part No: 304COBCV
  • Direct control ratings for 1HP max. @120 VAC (2HP @220 VAC)
  • Electrical rating 25A resistive, 120 VAC (intermittent duty)
  • Durable orange ABS pendant switch housing
  • NEMA 4 water-proof enclosure
  • Split case design for easy installation and wiring
  • Flexible cable boot selection to match size of cable prevents entry of debris
  • Two button switch with a wide range of legend markings
  • Clear button covers Part No: 304COBCV
