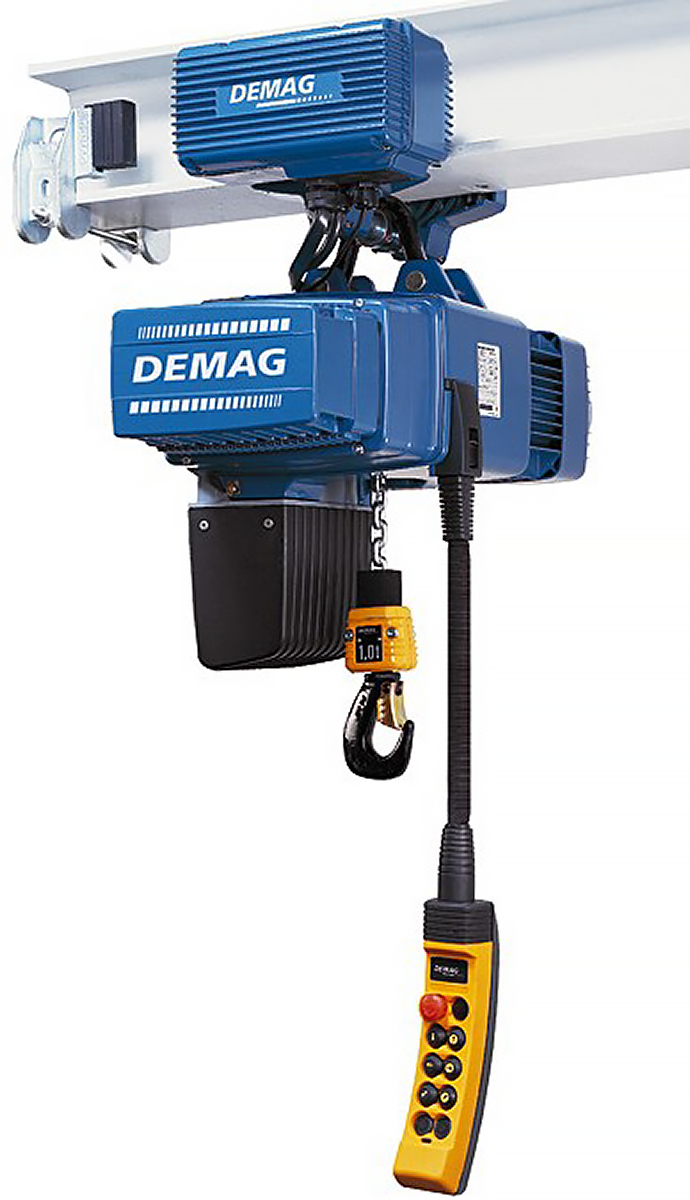

Demag DC Com Electric Chain Hoist, 1,100 lb. Capacity, Part No DC-COM-5-500

Manufacturer: Demag
Availability: In stock
SKU: DC-COM-5-500
Manufacturer part number: DC-COM-5-500
Lead Time (subject to change, call to verify): typically ships in 16-20 business days
*
*
*
*
$2,844.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals
Products Specifications
Attribute nameAttribute value
Features
  • Capacity: 1,100 lbs.
  • Weight: 62 lbs.
  • Headroom: 15.29 in.
  • Lift Speed: 4.5/18 fpm
  • 24V contactor control
  • IP55 enclosure
  • Upper and lower limit switches
  • Two lifting speeds as standard with smooth starting and braking.
  • High-quality powder-coated surfaces for improved protection and longer service life.
  • Entire chain drive can be quickly replaced without having to remove the motor or gear parts.
  • Brake arranged in front of the slipping clutch for added safety.
  • Maintenance monitoring thanks to a standard elapsed operating time counter and IDAPSY diagnostics interface.
  • Ergonomic pushbutton pendant station with DSC and DSE 10-C for fatigue-free operation.
  • Height adjustable control cable allows the pendant to always be in the right working position for you.
  • Reliable operation temperatures range from -4 °F to +113 °F (-20 °C to +45 °C) without any reduction in the duty factor (maximum of up to 140 °F / 60 °C).
  • Service Cover Allows Direct Access to: Key plug-and-socket electrical connections - Control pendant height adjustment - Chain lubrication port
Warranty1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of OriginGermany
