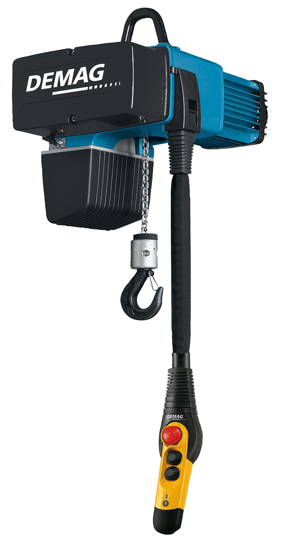

Demag DC Com Electric Chain Hoist, 2,200 lb. Capacity, Part No DC-COM-10-1000

Manufacturer: Demag

Availability: In stock

SKU: DC-COM-10-1000

Manufacturer part number: DC-COM-10-1000

Lead Time (subject to change, call to verify): typically ships in 16-20 business days

Lift *

Voltage *

Lifting Speed *

Hoist Suspension *

Chain Container

$3,356.00

Qty:

Documents, Drawings, and Manuals

Brochure

Demag DC-COM Brochure

Manual

Demag DC-COM Manual

Products Specifications

Attribute name	Attribute value
Features	Capacity: 2,200 lbs. Weight: 106 lbs. Headroom: 19.42 in. Lift Speed: 4/16 fpm 24V contactor control IP55 enclosure Upper and lower limit switches Two lifting speeds as standard with smooth starting and braking. High-quality powder-coated surfaces for improved protection and longer service life. Entire chain drive can be quickly replaced without having to remove the motor or gear parts. Brake arranged in front of the slipping clutch for added safety. Maintenance monitoring thanks to a standard elapsed operating time counter and IDAPSY diagnostics interface. Ergonomic pushbutton pendant station with DSC and DSE 10-C for fatigue-free operation. Height adjustable control cable allows the pendant to always be in the right working position for you. Reliable operation temperatures range from -4 °F to +113 °F (-20 °C to +45 °C) without any reduction in the duty factor (maximum of up to 140 °F / 60 °C). Service Cover Allows Direct Access to: Key plug-and-socket electrical connections - Control pendant height adjustment - Chain lubrication port
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Germany
