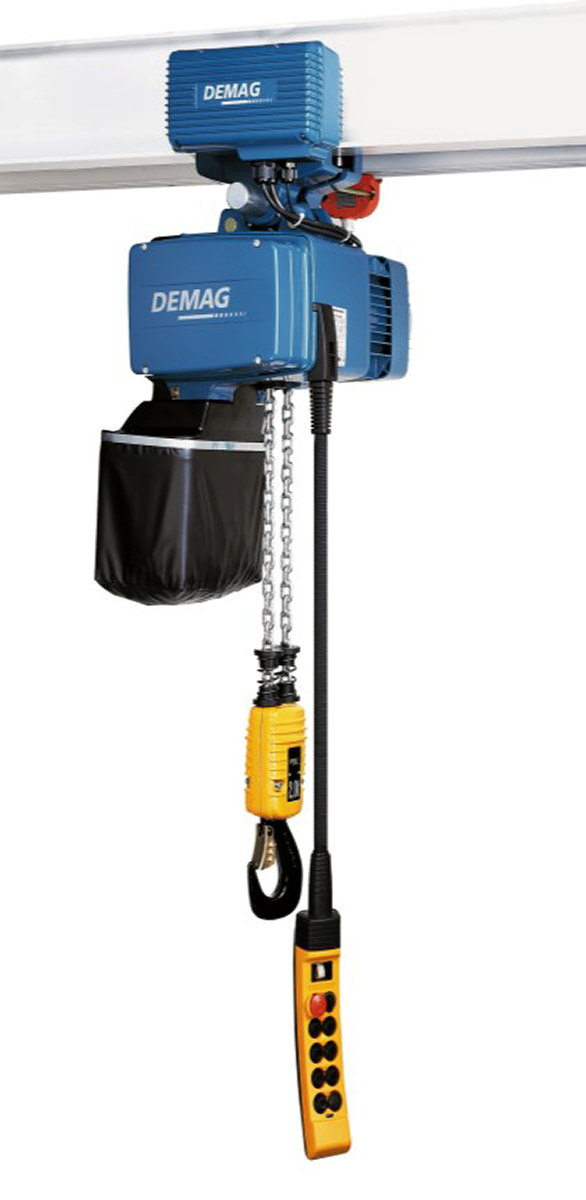

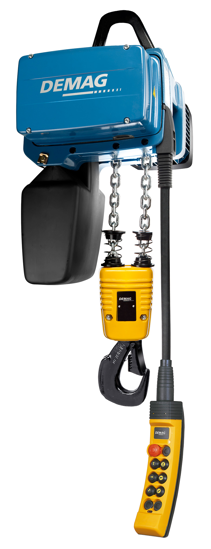

Demag DC Pro Electric Chain Hoist, 4,400 lb. Capacity, Part No DC-PRO-2000

Manufacturer: Demag
Availability: In stock
SKU: DC-PRO-CUST-2000
Manufacturer part number: DC-PRO-CUST-2000
Lead Time (subject to change, call to verify): typically ships in 16-20 business days
*
*
*
*
*
*
$5,670.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals
Products Specifications
Attribute nameAttribute value
Features
  • Capacity: 4,400 lbs.
  • Weight: 144 lbs.
  • Headroom: 22.2 in.
  • Lift Speed: 4:1 Standard
  • 24V contactor control
  • IP55 enclosure
  • Upper and lower limit switches
  • Two lifting speeds as standard with smooth starting and braking.
  • High-quality powder-coated surfaces for improved protection and longer service life.
  • Single-fall design for simple load handling of units up to 2,200 lbs.
  • Brake arranged in front of the slipping clutch for added safety.
  • Compact chain drive can be quickly replaced without having to remove any motor or gear parts.
  • Ergonomic pushbutton pendant station with DSC and DSE 10-C for fatigue-free operation.
  • Height adjustable control cable allows the pendant to always be in the right working position for you.
  • 1900 full load service hours give the hoist a 20% longer service life compared to conventional 2m FEM rated hoists.
  • Pivoting suspension bracket and adjustable flange width allow for easy install.
  • Read operating time counter or call up operating status information with external diagnostic readout.
  • Reliable operation temperatures range from -4 °F to +113 °F (-20 °C to +45 °C) without any reduction in the duty factor (maximum of up to 140 °F / 60 °C).
  • Service Cover Allows Direct Access to: Key plug-and-socket electrical connections - Control pendant height adjustment - Chain lubrication port - Chain Guide
Warranty1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of OriginGermany
