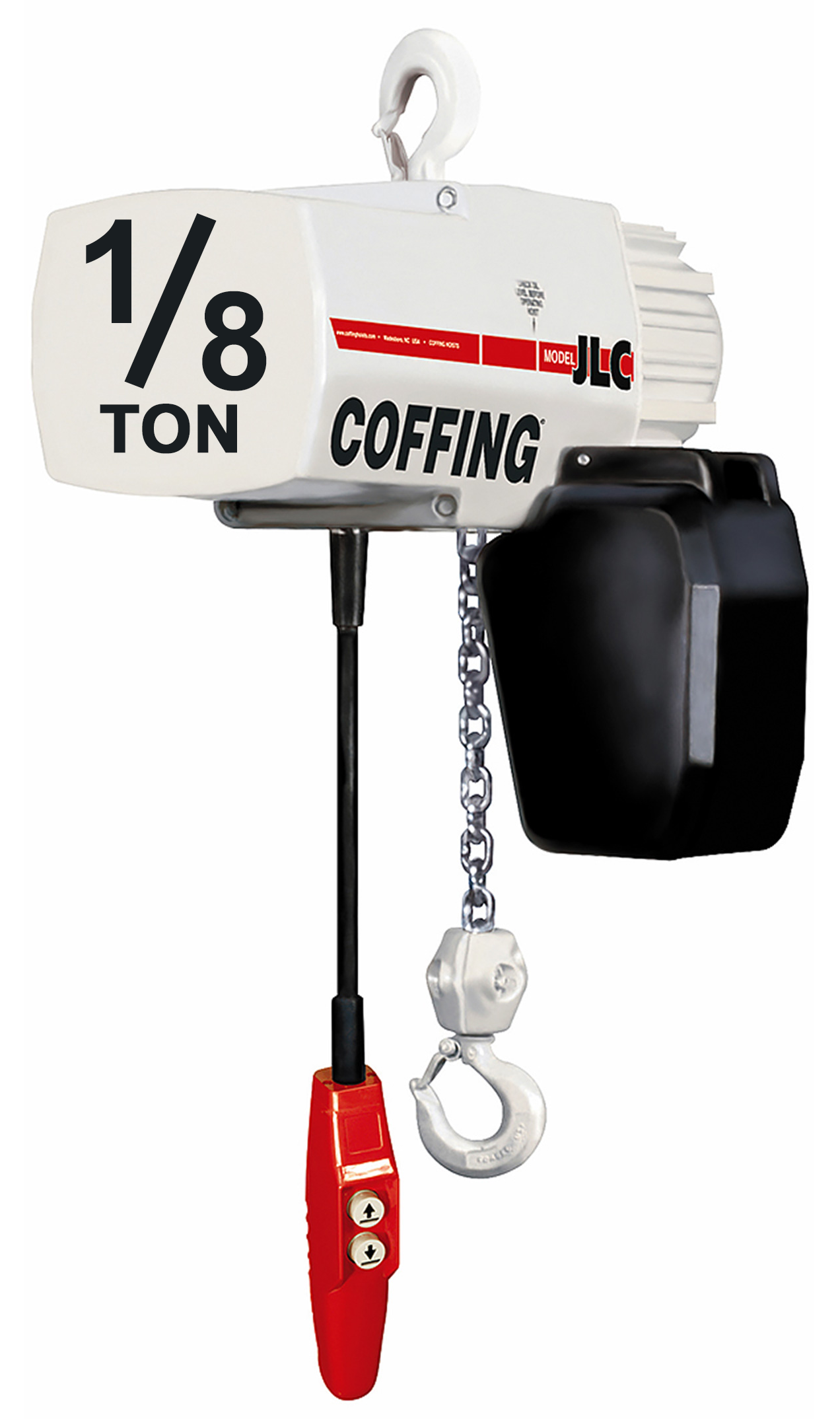

1/8 Ton Coffing JLC Electric Chain Hoist, Part No JLC0232

Manufacturer: Coffing Hoists
Availability: In stock
SKU: JLC0232-CUST
Manufacturer part number: JLC0232-CUST
Lead Time (subject to change, call to verify): typically ships in 13-16 business days
*
*
*
*
*
$2,396.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products Specifications
Attribute nameAttribute value
Features
  • Capacity: 1/8 Ton (125 kg)
  • Headroom:
    • 18-1/8 in. without trolley

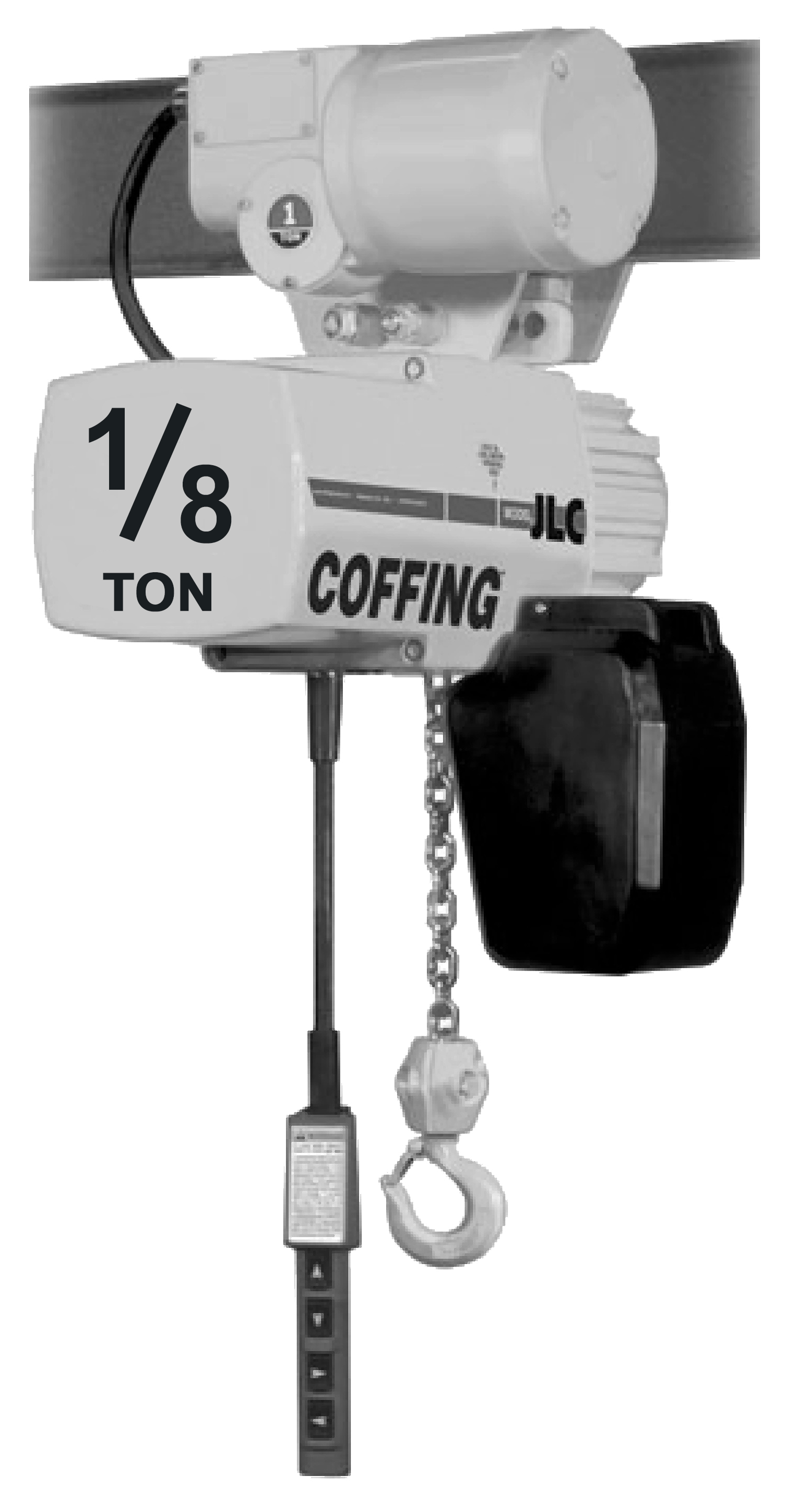

    • 17-5/16 in. with trolley
  • Mfg Model No.:
    • JLC0232 - 32 fpm
  • No. of Load Chains: 1
  • Hoist Motor Horsepower:
    • 1/2 hp for single phase, 1/4 hp for three phase
  • Ship Weight:
    • 65 lbs. without trolley
    • 89 lbs. with plain trolley
    • 175 lbs. with motorized trolley
  • H4 duty rating is ideal for heavy-duty industrial applications.
  • The hoist enclosure is a compact aluminum housing for portability and ease of installation. The finned aluminum motor housing provides cooling and is Class F insulated for longer life.
  • Hoist electrical panel, provides easy access to controls and motor leads with numbered connection wires for changing voltage on dual voltage motors or performing routine hoist maintenance.
  • Limit switches are adjustable to regulate upper and lower load travel. Brass nuts are standard for improved repeatability and chain positioning.
  • Mechanical overload device is factory-calibrated to protect the hoist, operator and supporting structures from damaging overloads, chain jamming, and reverse phasing.
  • Hoist motor brake is a heavy duty multiple disc type, direct acting design for positive load spotting and holding.
  • 5-pocket load sheave increases chain and sheave engagement 25% over hoists with conventional four-pocket sheaves. Provides smoother lifting and reduces chain wear over four-pocket sheaves.
  • Push button station is ergonomically designed to fit the operator's hand for left or right single-handed thumb operation. NEMA 3R rated (weather resistant) with 24 volt control is standard.
  • Hoists transmission has precision machined alloy steel gears that run in an oil bath for longer, quieter operation.
  • CSA Approved Option (NOTE: must call or email TSOC sales to request CSA compliant hoist before you place your order).
WarrantyLifetime Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of OriginMade in the USA
