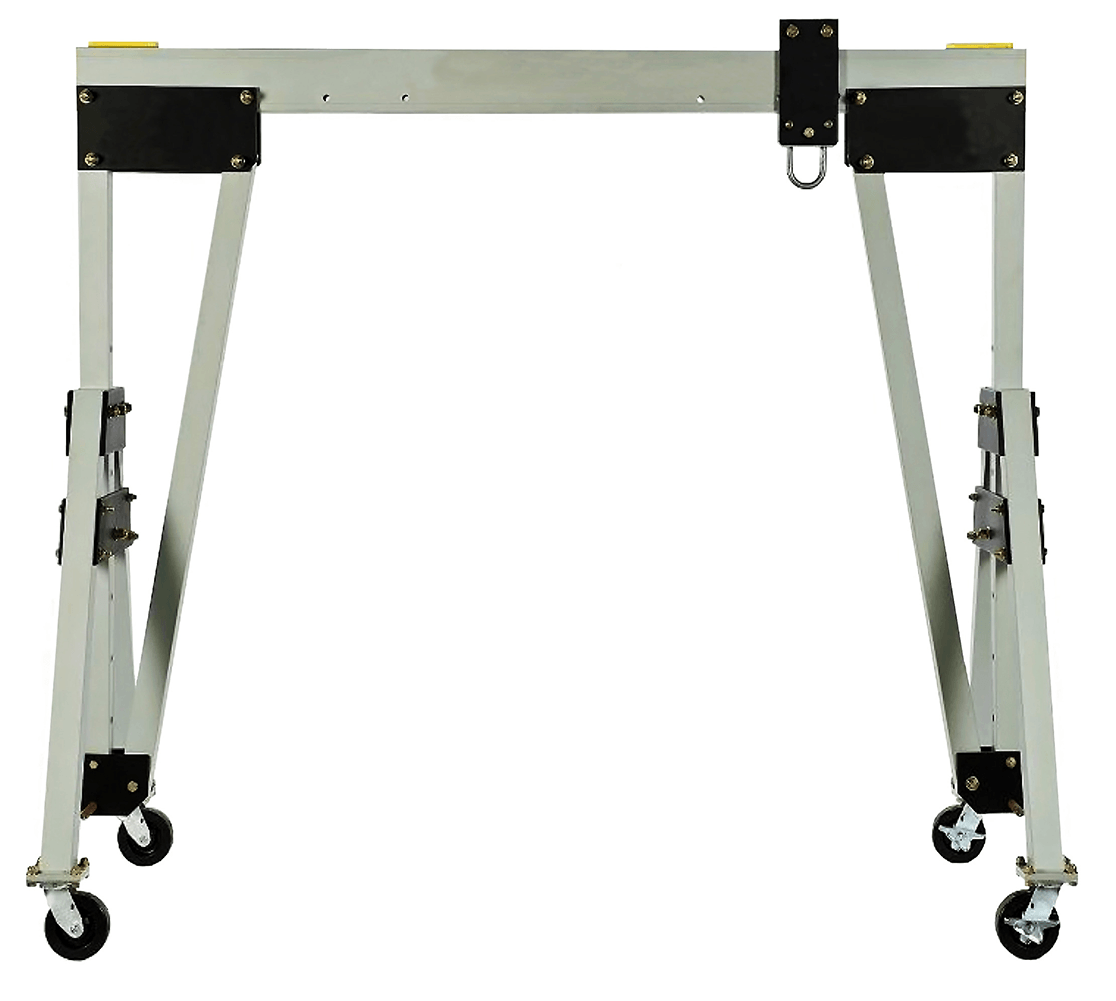

eme Aluminum Gantry Crane, 1 Ton Capacity, 66-90 in. Height, Span 8 ft, Model 2200R

Manufacturer: eme
SKU: 2200R
Manufacturer part number: 2200R
Lead Time: typically ships in 13-16 business days
Products specifications
  • Capacity: 1-ton, (2,200 lbs. / 1,000 kg.) Proof tested to 3,300 lbs. / 1,500 kg.
  • Span: 8 ft.
  • Clear Span: 5 ft.
  • Overall Height: 106 in.
  • Adjustable Height Range: 66-90 in. (8 in. increments)
  • Weight: 220 lbs.
  • Crosby shackles, master links.
  • Adjustable clear span in 8 inch increments.
  • ALL aluminum-alloy construction (Legs, Beam, Beam Trolley).
  • Simple two-bolt height adjustment with operator-friendly handles.
  • Custom spans from 6 to 30 feet, and custom heights are available.
  • Made in Canada with North American parts; built for North American conditions.
  • Supplied with engineer's stamped drawing – specific to model series or custom model.
  • Quick and easy two-wrench, two-person assembly from the ground up – no rigging equipment required.
  • Gantry can be rolled under load on clean, smooth surface under the direction of a competent/knowledgeable person.
  • Includes locking 'surround-beam' top riding trolley with rubber rollers (can't damage beam; can't derail; low rolling resistance).

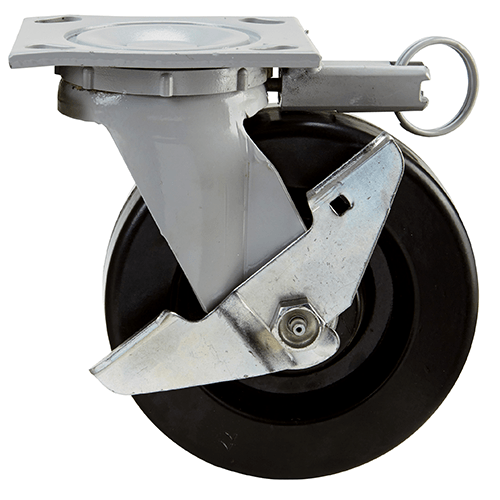

  • Locking casters (independently for swivel/roll), sized to gantry lift capacity (crane can be steered and rolled under load). Colson, Albion, and affiliated company casters.

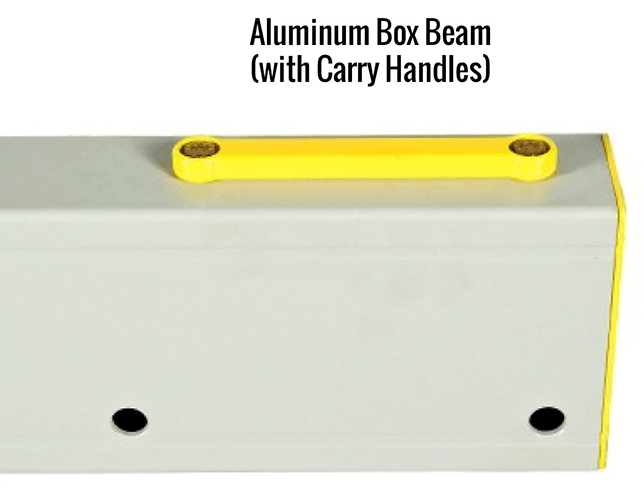

  • 3x6" or 3x12" engineered extruded hollow aluminum box beam – proprietary design, stronger and lighter than 'I' beams. All beams include aluminum billet carry handles make it easy and safe to carry beams.
  • Bolted construction (gr. 9 plated (chromate) fasteners, end plates bolted for a solid leg structure; legs tied to beam with 18-in. cheek plates, 8 bolts. no pins) allows gantry crane to be rolled when under full load!
  • Proof load tested to 150% of lift capacity with a certificate of test: leg, strut extrusions sized to fit gantry crane capacity, lift height, beam length shows lift capacity, proof load, date of certificate, serial number – all performed before shipment to end user Operations Manual.
Warranty5-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
