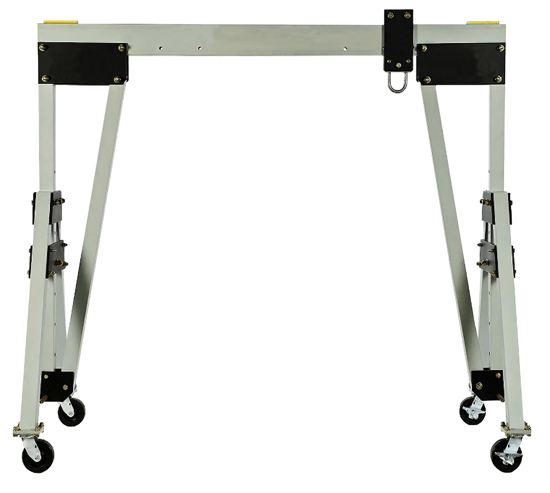

| Features | - Capacity: 2-ton, (4,400 lbs. / 2,000 kg.) Proof tested to 6,600 lbs. / 3,000 kg.
- Span: 15 ft.
- Clear Span: 12 ft.
- Overall Height: 153 in.
- Adjustable Height Range: 98-138 in. (8 in. increments)
- Weight: 380 lbs.
- Crosby shackles, master links.
- Adjustable clear span in 8 inch increments.
- ALL aluminum-alloy construction (Legs, Beam, Beam Trolley).
- Simple two-bolt height adjustment with operator-friendly handles.
- Custom spans from 6 to 30 feet, and custom heights are available.
- Made in Canada with North American parts; built for North American conditions.
- Supplied with engineer's stamped drawing – specific to model series or custom model.
- Quick and easy two-wrench, two-person assembly from the ground up – no rigging equipment required.
- Gantry can be rolled under load on clean, smooth surface under the direction of a competent/knowledgeable person.

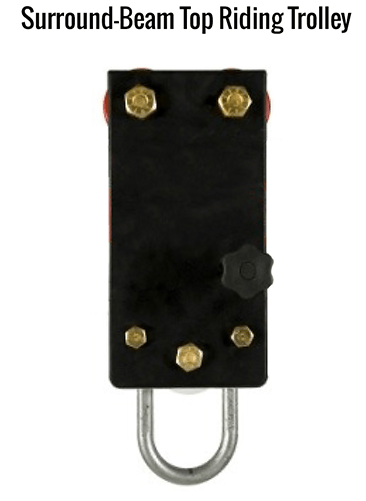

- Includes locking 'surround-beam' top riding trolley with rubber rollers (can't damage beam; can't derail; low rolling resistance).
- Locking casters (independently for swivel/roll), sized to gantry lift capacity (crane can be steered and rolled under load). Colson, Albion, and affiliated company casters.

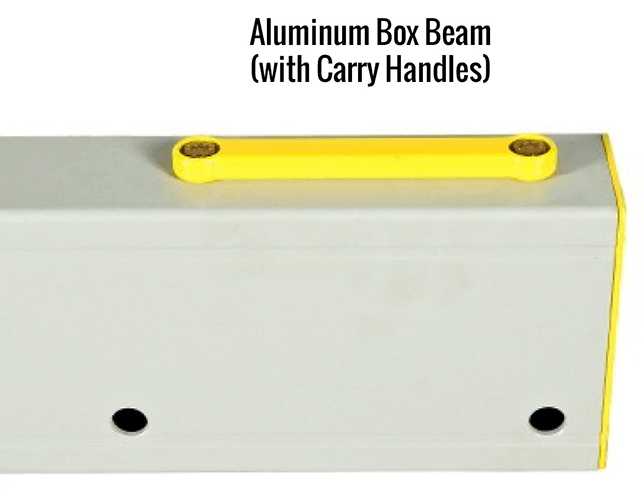

- 3x6" or 3x12" engineered extruded hollow aluminum box beam – proprietary design, stronger and lighter than 'I' beams. All beams include aluminum billet carry handles make it easy and safe to carry beams.

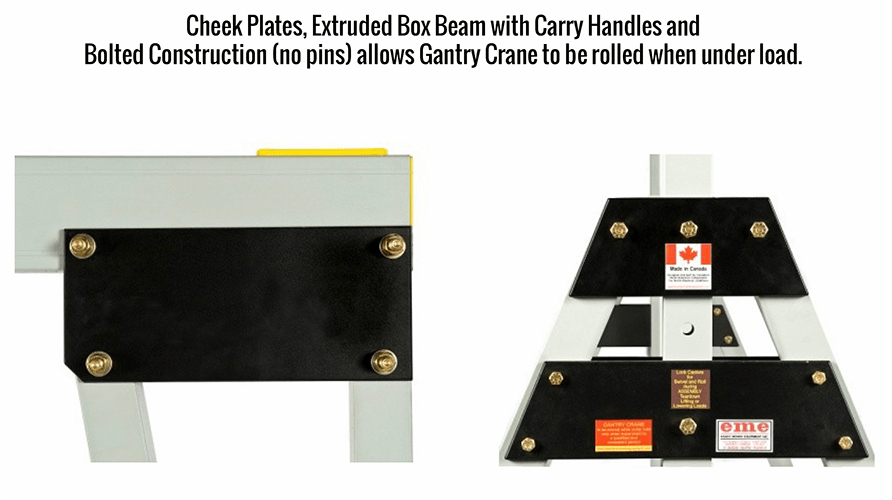

- Bolted construction (gr. 9 plated (chromate) fasteners, end plates bolted for a solid leg structure; legs tied to beam with 18-in. cheek plates, 8 bolts. no pins) allows gantry crane to be rolled when under full load!
- Proof load tested to 150% of lift capacity with a certificate of test: leg, strut extrusions sized to fit gantry crane capacity, lift height, beam length shows lift capacity, proof load, date of certificate, serial number – all performed before shipment to end user Operations Manual.
|
