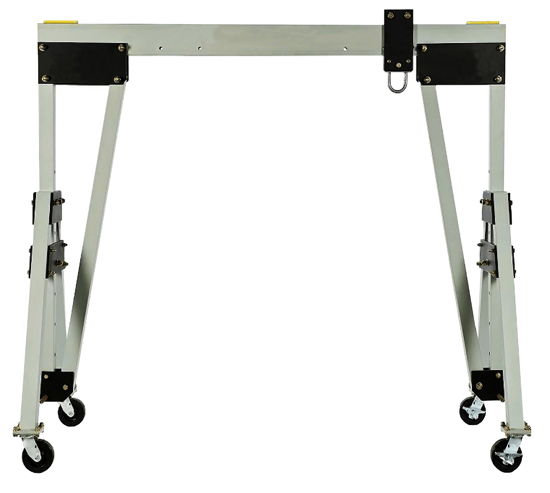

eme Aluminum Gantry Crane, 3 Ton Capacity, 106-154 in. Height, Span 15 ft, Model 6600R

Manufacturer: eme
Availability: In stock
SKU: 6600R
Manufacturer part number: 6600R
Lead Time (subject to change, call to verify): typically ships in 5-7 business days
$11,410.56
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals
Products Specifications
Attribute nameAttribute value
Features
  • Capacity: 3-ton, (6,600 lbs. / 3000 kg.) Proof tested to 9,900 lbs. / 4500 kg.
  • Span: 15 ft.
  • Clear Span: 12 ft.
  • Overall Height: 178 in.
  • Adjustable Height Range: 106-154 in. (8 in. increments)
  • Weight: 585 lbs.
  • Crosby shackles, master links.
  • Adjustable clear span in 8 inch increments.
  • ALL aluminum-alloy construction (Legs, Beam, Beam Trolley).
  • Simple two-bolt height adjustment with operator-friendly handles.
  • Custom spans from 6 to 30 feet, and custom heights are available.
  • Made in Canada with North American parts; built for North American conditions.
  • Supplied with engineer's stamped drawing – specific to model series or custom model.
  • Quick and easy two-wrench, two-person assembly from the ground up – no rigging equipment required.
  • Gantry can be rolled under load on clean, smooth surface under the direction of a competent/knowledgeable person.

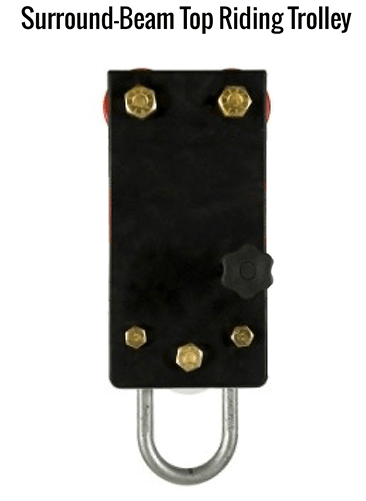

  • Includes locking 'surround-beam' top riding trolley with rubber rollers (can't damage beam; can't derail; low rolling resistance).

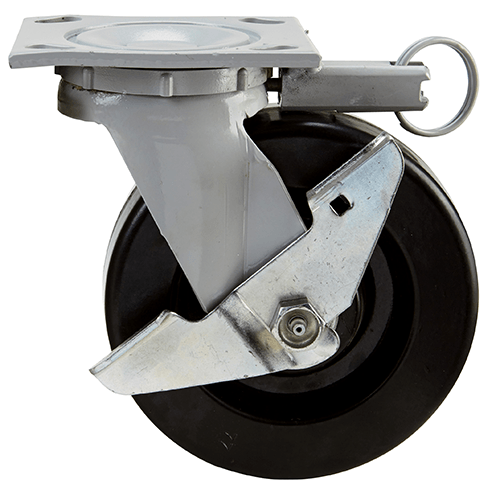

  • Locking casters (independently for swivel/roll), sized to gantry lift capacity (crane can be steered and rolled under load). Colson, Albion, and affiliated company casters.

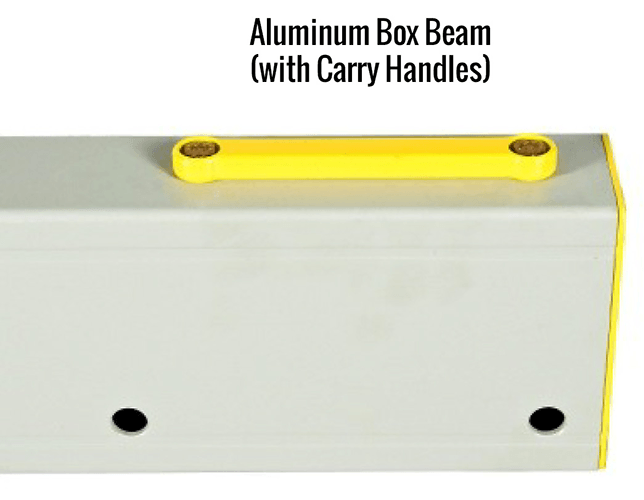

  • 3x6" or 3x12" engineered extruded hollow aluminum box beam – proprietary design, stronger and lighter than 'I' beams. All beams include aluminum billet carry handles make it easy and safe to carry beams.

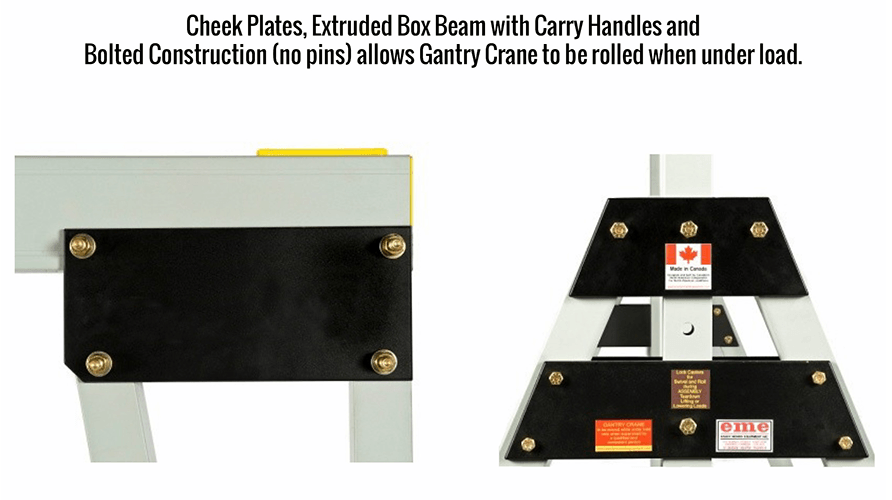

  • Bolted construction (gr. 9 plated (chromate) fasteners, end plates bolted for a solid leg structure; legs tied to beam with 18-in. cheek plates, 8 bolts. no pins) allows gantry crane to be rolled when under full load!
  • Proof load tested to 150% of lift capacity with a certificate of test: leg, strut extrusions sized to fit gantry crane capacity, lift height, beam length shows lift capacity, proof load, date of certificate, serial number – all performed before shipment to end user Operations Manual.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
