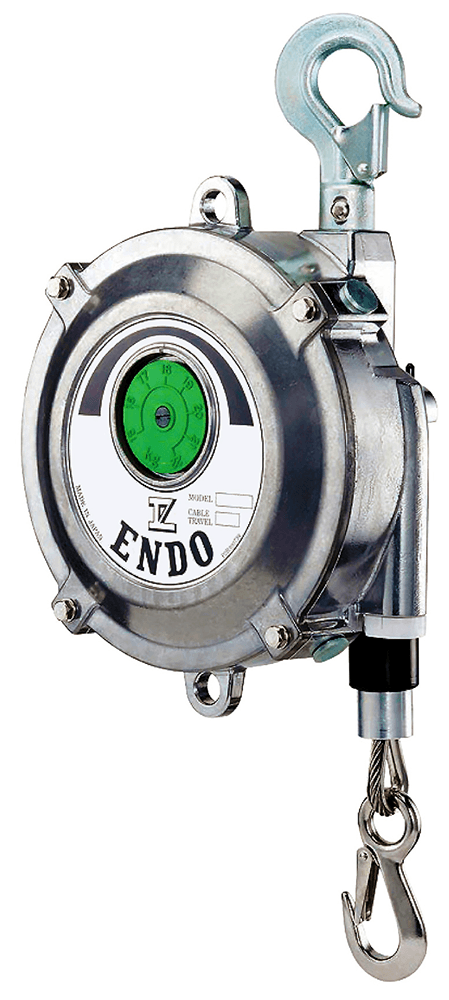

ENDO Food Grade Spring Balancer, Capacity 20.9 to 33.1 lbs, Stroke 5 ft, Model EWF-15X

Manufacturer: ENDO
Availability: In stock
SKU: XA-EWF-15X
Manufacturer part number: XA-EWF-15X
Lead Time (subject to change, call to verify): typically ships in 5-7 business days
*
$1,079.10
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products Specifications
Attribute nameAttribute value
Features
  • Manufacturer: ENDO
  • Model Number: EWF-15X
  • Capacity Range: 20.9 to 33.1 lbs. (9.5 to 15.0 kg)
  • Cable Travel: 4.93 ft. (1.5 m)
  • Cable Diameter: 0.157 in. (4.0 mm)
  • Cable Material: White Nylon
  • Unit Weight: 8.4 lbs. (3.8 kg)
  • Length (hook to hook I.D.): 13.4 to 64.6 in. (340 to 1640 mm)
  • Width: 6.9 in. (175 mm)
  • Depth: 5.4 in. (137 mm)
  • Color: Unpainted Aluminum
  • Buffed and barrel-polished aluminum casing and cover.
  • Synthetic food-grade grease (H1 grade) on the spring.
  • Top Hook: Zinc plated upper hook and pins.
  • Bottom Hook: Stainless steel lower hook, plug, rivet, bolts, and screws.
  • Secondary Support: Includes top and bottom support eyelets to accommodate safety chains
  • Drum Lock Mechanism: Available to lock the drum while replacing a tool.
  • Fall-Arrest Device: Prevents tool from dropping in the unlikely event the spring breaks.
  • Gauge: Front-facing spring tension gauge for easy operator indication and adjustment with respect to the suspended mass.
  • Cartridge Spring Assembly: Provides safe and easy spring replacement.
  • Plug Type Cable Set: Easy cable replacement without dismantling the balancer.
  • Endo spring tool balancers offer true zero gravity, with no drifting or strain.
  • Tapered drum, quality springs, and bearings provide smooth cable travel throughout the stroke.
  • Worm Gear Spring Tension Adjustment: Insert socket wrench in the back of the unit and turn clockwise to increase tension and counterclockwise to decrease tension (factory preset to the midrange of the rated capacity).
  • How to Choose the Right Spring Balancer: Size the balancer to carry the total weight to be balanced - tool plus all accessories. Use the upper end of the capacity range of the balancer when possible. (For example, if the total tool weight is 10.5 pounds a balancer that has a capacity range of 5.5-11.0 pounds would be a better choice than a balancer with a range of 9.9-19.8 pounds. Then choose the cable travel that best suits your application.
Warranty18-Month Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of OriginJapan
