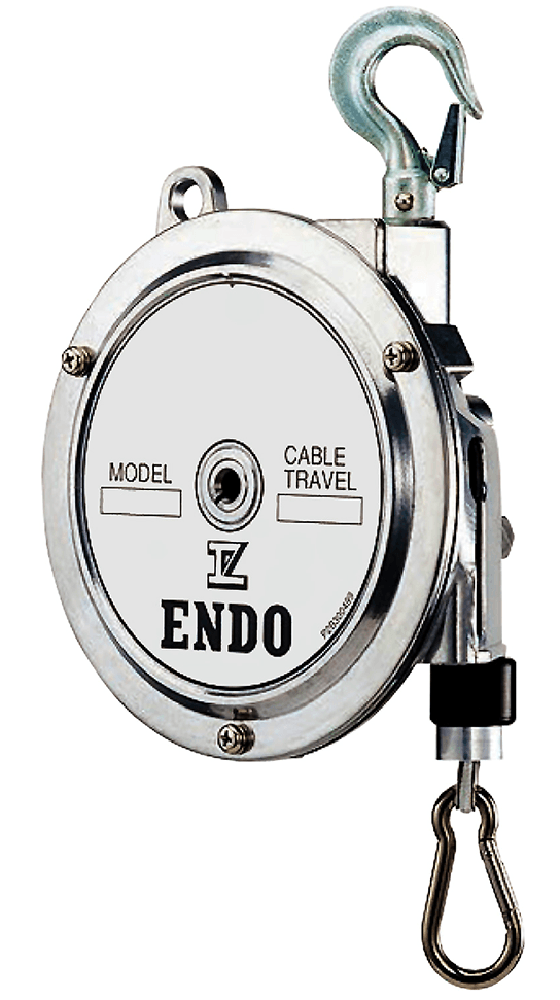

ENDO Food Grade Spring Balancer, Capacity 3.3 to 6.6 lbs, Stroke 4 ft, Model EWS-3X

Manufacturer: ENDO
SKU: XA-EWS-3X
Manufacturer part number: XA-EWS-3X
Lead Time: typically ships in 5-7 business days
*
$545.00
Documents, Drawings, and Manuals
Products specifications
Features
  • Manufacturer: ENDO
  • Model Number: EWS-3X
  • Capacity Range: 3.3 to 6.6 lbs. (1.50 to 3.0 kg)
  • Cable Travel: 4.27 ft. (1.3 m)
  • Cable Diameter: 0.12 in. (3.0 mm)
  • Cable Material: White Nylon
  • Unit Weight: 4.2 lbs. (1.9 kg)
  • Length (hook to hook I.D.): 11.4 to 62.6 in. (289 to 1590 mm)
  • Width: 6.29 in. (160 mm)
  • Depth: 3.5 in. (89 mm)
  • Color: Unpainted Aluminum

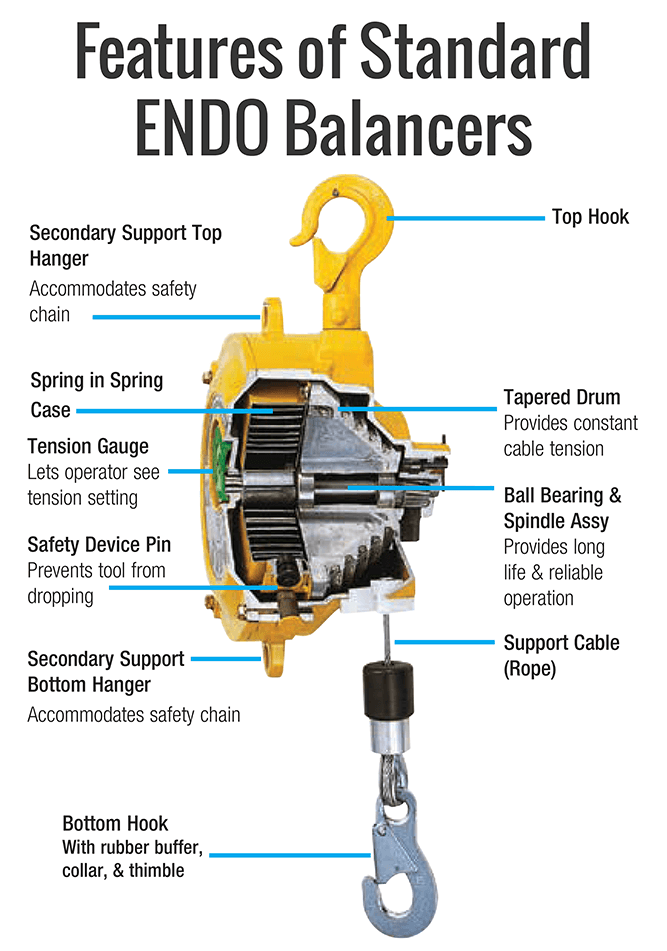

  • Buffed and barrel-polished aluminum casing and cover.
  • Synthetic food-grade grease (H1 grade) on the spring.
  • Top Hook: Zinc plated upper hook and pins.
  • Bottom Hook: Stainless steel lower hook, plug, rivet, bolts, and screws.
  • Secondary Support: Includes a top support eyelet to accommodate a safety chain.
  • Drum Lock Mechanism: Available to lock the drum while replacing a tool.
  • Fall-Arrest Device: Prevents tool from dropping in the unlikely event the spring breaks.
  • Plug Type Cable Set: Easy cable replacement without dismantling the balancer.
  • Endo spring tool balancers offer true zero gravity, with no drifting or strain.
  • Tapered drum, quality springs, and bearings provide smooth cable travel throughout the stroke.
  • Worm Gear Spring Tension Adjustment: Insert socket wrench in the back of the unit and turn clockwise to increase tension and counterclockwise to decrease tension (factory preset to the midrange of the rated capacity).
  • How to Choose the Right Spring Balancer: Size the balancer to carry the total weight to be balanced - tool plus all accessories. Use the upper end of the capacity range of the balancer when possible. (For example, if the total tool weight is 10.5 pounds a balancer that has a capacity range of 5.5-11.0 pounds would be a better choice than a balancer with a range of 9.9-19.8 pounds. Then choose the cable travel that best suits your application.
Warranty18-Month Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of OriginJapan
