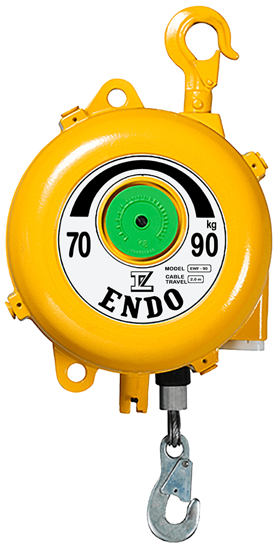

ENDO Spring Balancer, Capacity 154.3 to 198.4 lbs, Stroke 6.5 ft, Model EWF-90

Manufacturer: ENDO
SKU: XA-EWF-90
Manufacturer part number: XA-EWF-90
Lead Time: typically ships in 40-50 business days
*
$1,349.00
Products specifications
Features
  • Manufacturer: ENDO
  • Model Number: EWF-90
  • Capacity Range: 154.3 to 198.4 lbs. (70.0 to 90.0 kg)
  • Cable Travel: 6.56 ft. (2.0 m)
  • Cable Diameter: 0.187 in. (4.76 mm)
  • Cable Material: Wire Rope (steel)
  • Unit Weight: 48.5 lbs. (22.0 kg)
  • Length (hook to hook I.D.): 19.4 to 98.1 in. (492.7 to 2492 mm)
  • Width: 10.5 in. (266 mm)
  • Depth: 10.2 in. (259 mm)
  • Color: Safety Yellow
  • High impact cast fully enclosed aluminum housing.
  • Top Hook: Aluminum forged swivel top hook with safety latch.
  • Bottom Hook: Steel bottom hook with safety latch and rubber buffer collar.
  • Secondary Support: Includes top and bottom support eyelets to accommodate safety chains.
  • Drum Lock Mechanism: Available to lock the drum while replacing a tool.
  • Fall-Arrest Device: Prevents tool from dropping in the unlikely event the spring breaks.
  • Gauge: Front-facing spring tension gauge for easy operator indication and adjustment with respect to the suspended mass.
  • Cartridge Spring Assembly: Provides safe and easy spring replacement.
  • Plug Type Cable Set: Easy cable replacement without dismantling the balancer.
  • Endo spring tool balancers offer true zero gravity, with no drifting or strain.
  • Tapered drum, quality springs, and bearings provide smooth cable travel throughout the stroke.
  • CE mark available (European Conformity)
  • Worm Gear Spring Tension Adjustment: Insert socket wrench in the back of the unit and turn clockwise to increase tension and counterclockwise to decrease tension (factory preset to the midrange of the rated capacity).
  • How to Choose the Right Spring Balancer: Size the balancer to carry the total weight to be balanced - tool plus all accessories. Use the upper end of the capacity range of the balancer when possible. (For example, if the total tool weight is 10.5 pounds a balancer that has a capacity range of 5.5-11.0 pounds would be a better choice than a balancer with a range of 9.9-19.8 pounds. Then choose the cable travel that best suits your application.
Warranty18-Month Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of OriginJapan
