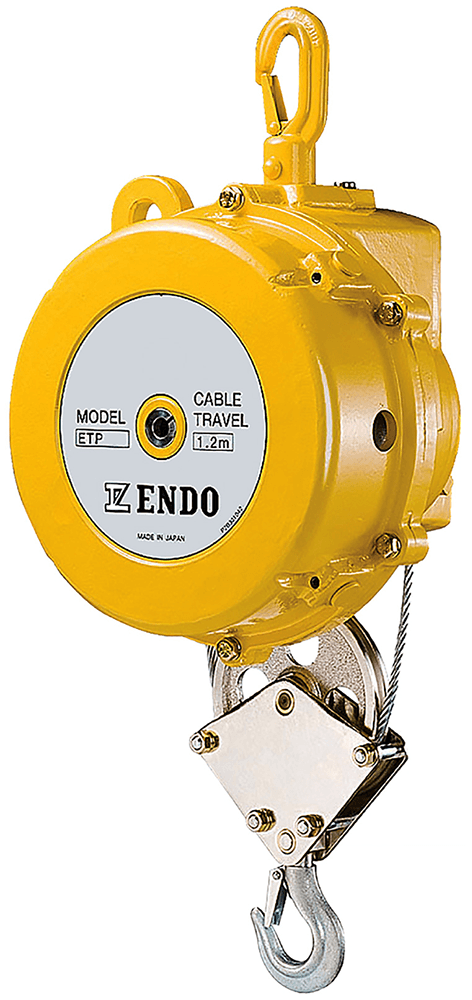

ENDO Spring Balancer, Capacity 264.5 to 308.6 lbs, Stroke 4 ft, Model ETP-14

Manufacturer: ENDO
SKU: XA-ETP-14
Manufacturer part number: XA-ETP-14
Lead Time: typically ships in 40-50 business days
*
$1,604.00
Documents, Drawings, and Manuals
Products specifications
Features
  • Manufacturer: ENDO
  • Model Number: ETP-14
  • Capacity Range: 264.5 to 308.6 lbs. (120.0 to 140.0 kg)
  • Cable Travel: 3.9 ft. (1.2 m)
  • Cable Diameter: 0.236 in. (6.0 mm)
  • Cable Material: Wire Rope (steel)
  • Unit Weight: 53.1 lbs. (24.1 kg)
  • Length (hook to hook I.D.): 24.5 to 71.8 in. (623 to 1823 mm)
  • Width: 10.86 in. (276 mm)
  • Depth: 10.86 in. (276 mm)
  • Color: Safety Yellow
  • High impact cast fully enclosed aluminum housing.
  • Top Hook: Aluminum forged top hook with safety latch.
  • Bottom Block: Steel bottom hook with safety latch. The bottom sheave is double reeved.
  • Secondary Support: Includes top support eyelet to accommodate a safety chain.
  • Fall-Arrest Device: Prevents tool from dropping in the unlikely event the spring breaks.
  • Endo spring tool balancers offer true zero gravity, with no drifting or strain.
  • Tapered drum, quality springs, and bearings provide smooth cable travel throughout the stroke.
  • CE mark available (European Conformity)
  • Worm Gear Spring Tension Adjustment: Insert socket wrench in the back of the unit and turn clockwise to increase tension and counterclockwise to decrease tension (factory preset to the midrange of the rated capacity).
  • How to Choose the Right Spring Balancer: Size the balancer to carry the total weight to be balanced - tool plus all accessories. Use the upper end of the capacity range of the balancer when possible. (For example, if the total tool weight is 10.5 pounds a balancer that has a capacity range of 5.5-11.0 pounds would be a better choice than a balancer with a range of 9.9-19.8 pounds. Then choose the cable travel that best suits your application.
Warranty18-Month Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of OriginJapan
