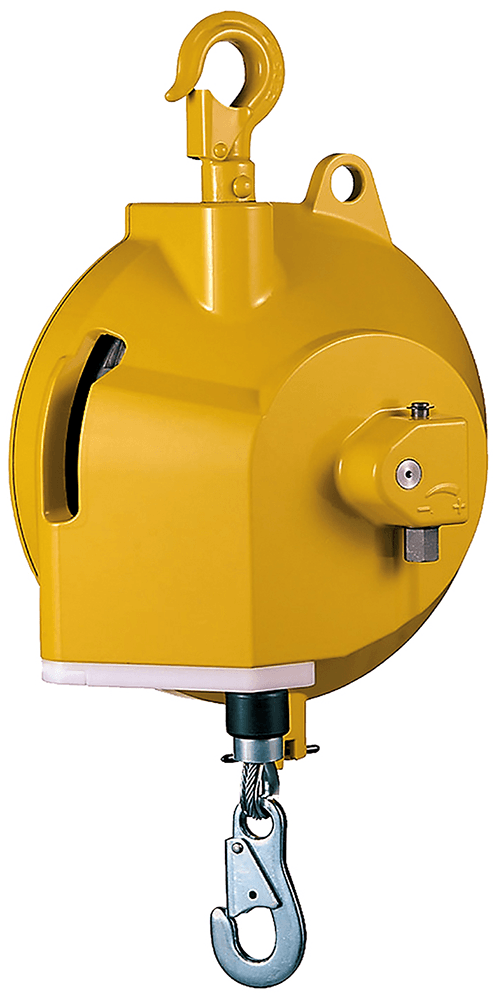

ENDO Spring Balancer, Capacity 3.3 to 6.6 lbs, Stroke 8 ft, Model ELF-3

Manufacturer: ENDO
Manufacturer part number: XA-ELF-3
Lead Time: typically ships in 5-7 business days
Products specifications
  • Manufacturer: ENDO
  • Model Number: ELF-3
  • Capacity Range: 3.3 to 6.6 lbs. (1.5 to 3.0 kg)
  • Cable Travel: 8.2 ft. (2.5 m)
  • Cable Diameter: 0.16 in. (4.0 mm)
  • Cable Material: Wire Rope (steel)
  • Unit Weight: 10.1 lbs. (4.6 kg)
  • Length (hook to hook I.D.): 13.7 to 112.1 in. (347 to 2847 mm)
  • Width: 7.8 in. (198 mm)
  • Depth: 4.7 in. (119 mm)
  • Color: Safety Yellow
  • High impact cast fully enclosed aluminum housing.
  • Top Hook: Aluminum forged swivel top hook with safety latch.
  • Bottom Hook: Steel bottom hook with safety latch and rubber buffer collar.
  • Secondary Support: Includes a top support eyelet to accommodate a safety chain.
  • Drum Lock Mechanism: Available to lock the drum while replacing a tool.
  • Fall-Arrest Device: Prevents tool from dropping in the unlikely event the spring breaks.
  • Plug Type Cable Set: Easy cable replacement without dismantling the balancer.
  • Endo spring tool balancers offer true zero gravity, with no drifting or strain.
  • Tapered drum, quality springs, and bearings provide smooth cable travel throughout the stroke.
  • CE mark available (European Conformity)
  • Worm Gear Spring Tension Adjustment: Insert socket wrench in the back of the unit and turn clockwise to increase tension and counterclockwise to decrease tension (factory preset to the midrange of the rated capacity).
  • How to Choose the Right Spring Balancer: Size the balancer to carry the total weight to be balanced - tool plus all accessories. Use the upper end of the capacity range of the balancer when possible. (For example, if the total tool weight is 10.5 pounds a balancer that has a capacity range of 5.5-11.0 pounds would be a better choice than a balancer with a range of 9.9-19.8 pounds. Then choose the cable travel that best suits your application.
Warranty18-Month Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of OriginJapan
