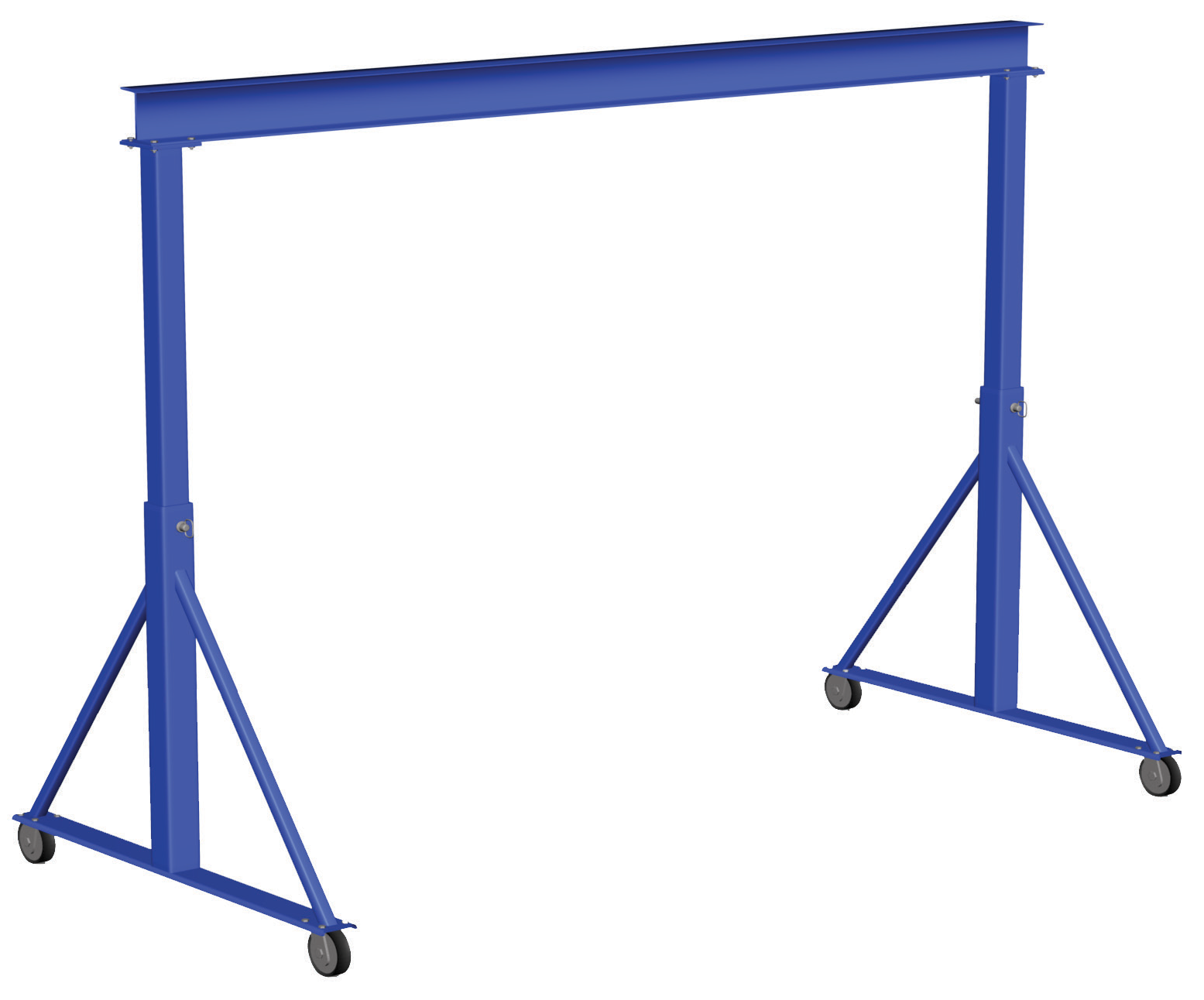

Gorbel Adjustable Height Gantry Crane, 3 Ton Capacity, 15 to 18 ft. HUB, 20 ft. Span, Model No. AG-3-15/18-20

Manufacturer: Gorbel
Availability: In stock
SKU: AG-3-15/18-20
Manufacturer part number: AG-3-15/18-20
Lead Time (subject to change, call to verify): typically ships in 13-16 business days
*
*
$11,666.84
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products Specifications
Attribute nameAttribute value
Features
  • Capacity: 3-Ton
  • Span: 20 ft.
  • Height Under Boom (HUB): 15 to 18 ft. (adjustable)
  • Overall Height: 19 ft. 4-1/8 in. (max)
  • I-Beam Size: W16 @ 45 lbs/ft
  • I-Beam Depth: 16-1/8 in.
  • I-Beam Flange Width: 7-1/16 in.
  • Clear Span: 18 ft. 5-1/2 in.
  • Gantry Tread: 6 ft. 6 in.
  • Crane Material: Steel
  • Shipping Weight (Overall Weight): 1,973 lbs.
  • Provides the most flexible lifting solution of any style gantry crane.
  • Easily adjusted to provide different lifting heights.
  • Bolted beam to upright connection ensures safety.
  • Molded phenolic casters are standard and allow for easy movement.
  • Square tubing uprights, knee braces, and channel base provides stable lifting and movement.
  • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
  • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of OriginMade in the USA
