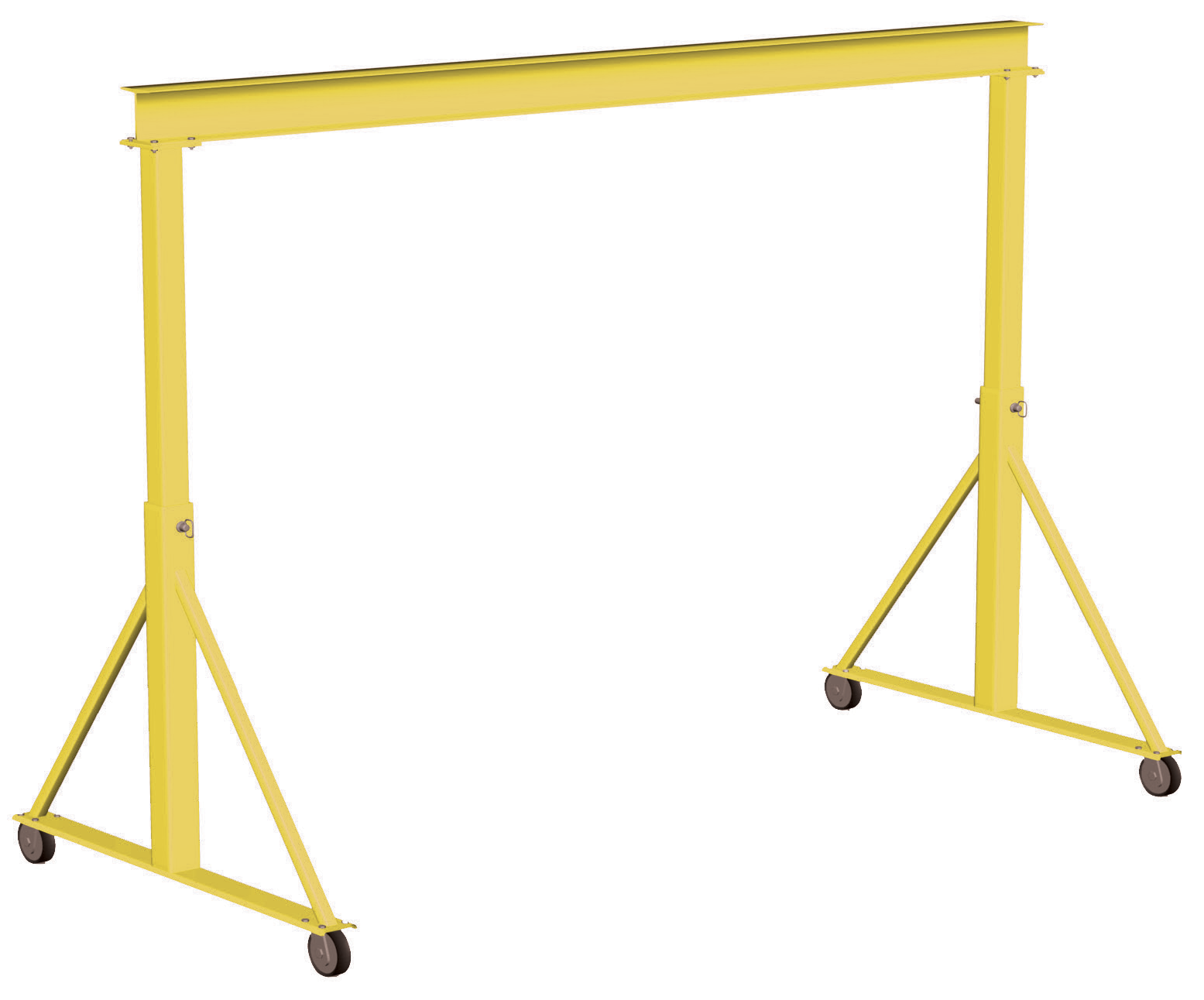

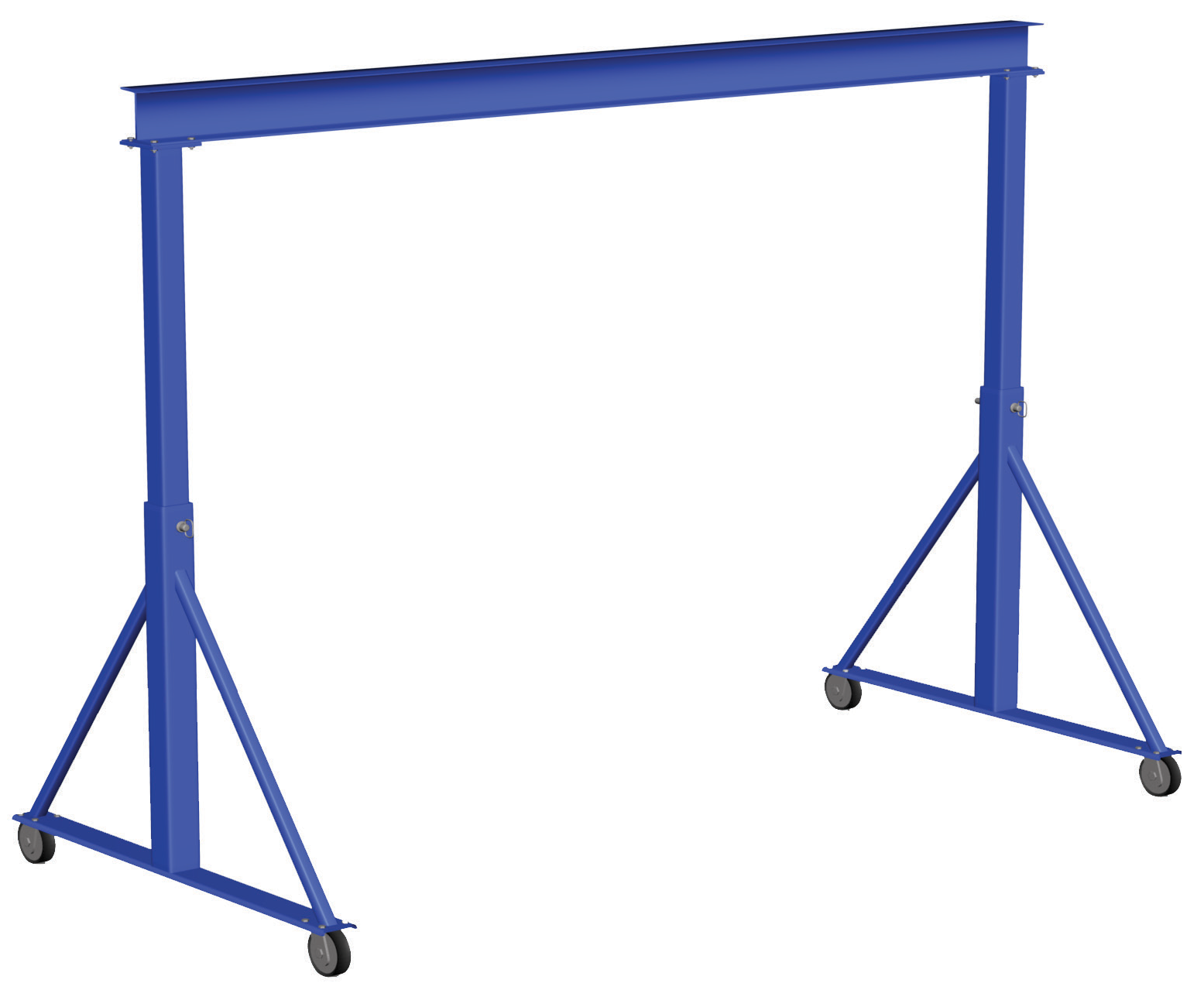

Gorbel Adjustable Height Gantry Crane, 5 Ton Capacity, 17 to 20 ft. HUB, 8 ft. Span, Model No. AG-5-17/20-8

Manufacturer: Gorbel
SKU: AG-5-17/20-8
Manufacturer part number: AG-5-17/20-8
Lead Time: typically ships in 13-16 business days
*
*
$6,917.00
Products specifications
Features
  • Capacity: 5-Ton
  • Span: 8 ft.
  • Height Under Boom (HUB): 17 to 20 ft. (adjustable)
  • Overall Height: 21 ft. 4-1/8 in. (max)
  • I-Beam Size: W16 @ 45 lbs/ft
  • I-Beam Depth: 16-1/8 in.
  • I-Beam Flange Width: 7-1/16 in.
  • Clear Span: 5 ft. 10-1/2 in.
  • Gantry Tread: 6 ft. 6 in.
  • Crane Material: Steel

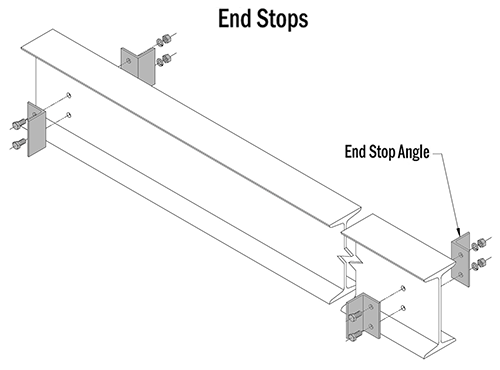

  • Bolted beam to upright connection ensures safety.

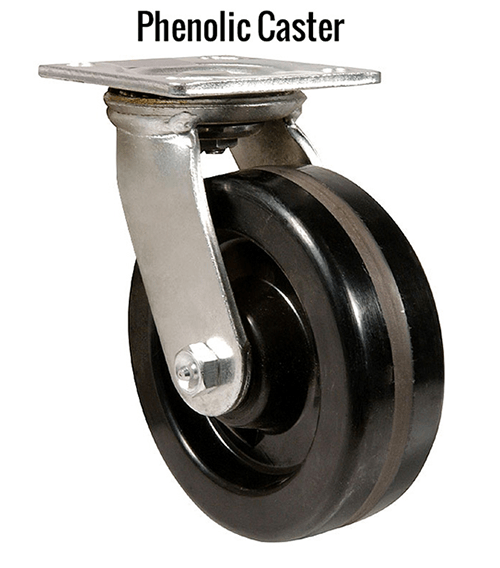

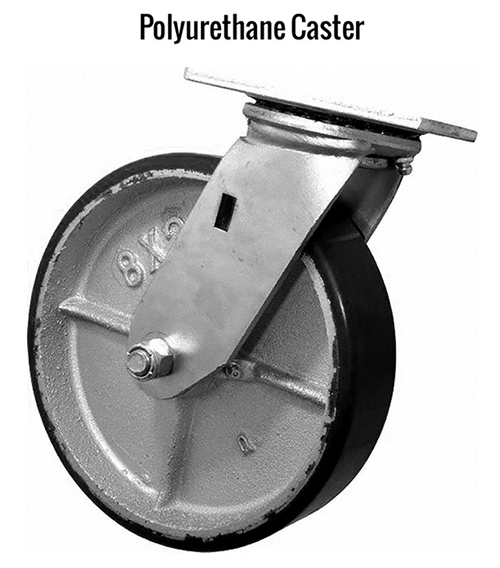

  • Molded phenolic casters are standard and provide for easy movement.
  • Square tubing uprights, knee braces, and channel base provide for stable lifting and movement.
  • All Gorbel Gantry Cranes are structurally designed in accordance with the AISC Steel Construction Manual.
  • All Gorbel Gantry Cranes are in accordance with OSHA Specification 1910.179 and ANSI Specification B30.11, as they apply to Gantry and Overhead Cranes.
  • All Gorbel Cranes meet or exceed the requirements of MMA MH27.2 specification for enclosed track systems.
  • All Work Station Cranes are in accordance with the following Canadian Standards as they apply to Overhead Cranes: CSA Standard B167-96 and CSA Standard C22.2 No.33-M1984 (reaffirmed 2004).
  • All Gorbel Gantry Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
  • Fabrication Standards: All welding is in accordance with AWS D14.1, and is performed by certified welders.
  • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
  • Material Standards: All structural shapes used by Gorbel are a minimum of ASTM A-36 designation. All pipes are structural grade ASTM A-53 and all tubing is ASTM A-500. All plate and round bar has minimum yield strength of 36 KSI.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of OriginMade in the USA
