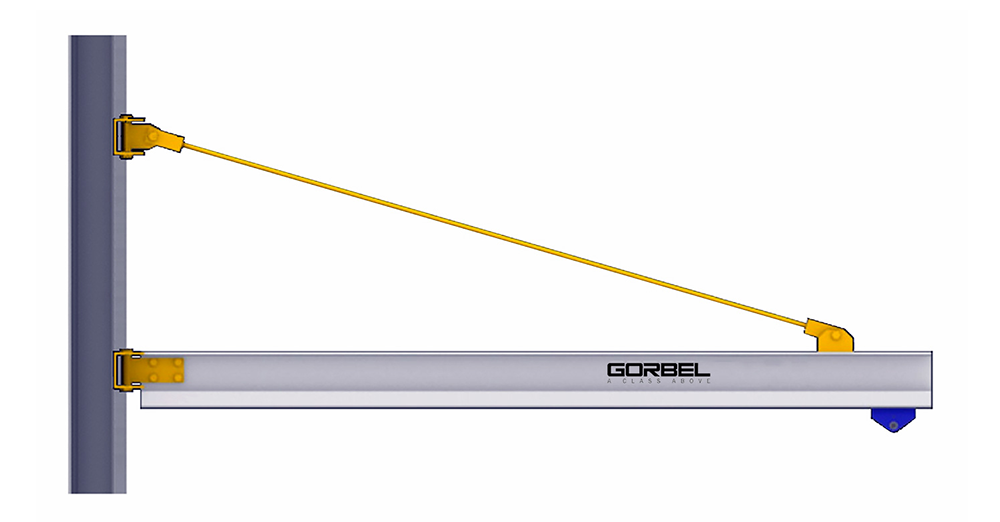

Gorbel Aluminum Wall Bracket Jib Crane, 150 lb. Cap., 16 ft. Span, Model No. AL100-G1-150-16

Manufacturer: Gorbel
SKU: AL100-G1-150-16
Manufacturer part number: AL100-G1-150-16
Lead Time (subject to change, call to verify): typically ships in 10-13 business days
*
$2,490.18
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products Specifications
Attribute nameAttribute value
Features
  • Capacity: 150 lbs.
  • Span: 16 ft.
  • Enclosed Track Series: 250
  • Fitting Size: G1
  • Bracket Centers: 3 ft. 0 in.
  • Overturning Moment: 3.767 K-Ft
  • Axial Load: 0.279 Kips
  • Thrust and Pull: 1.256 Kips
  • Hoist Trolley Included: 1 ea.
  • Hoist Allowance: 22.5 lbs.
  • Tie Rod Diameter: 1 in.
  • Tie Rod Pitch: 8 unc
  • Tie Rod Length: 149 3/8 in.
  • T1 Dimension: 2 3/4 in.
  • Coverage: 200° Semi-Circular Rotation
  • Shipping Weight (Overall Weight): 233 lbs.
  • Utilizes Gorbel's patented lightweight aluminum track which rotates up to 40% easier than the traditional I-Beam jib.
  • Reduced deadweight of boom assembly.
  • Tie rod minimizes deflection for more precise positioning.
  • Designed to support tool balancers, air balancers, vacuum lifters, and hoists.
  • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
  • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of OriginMade in the USA
