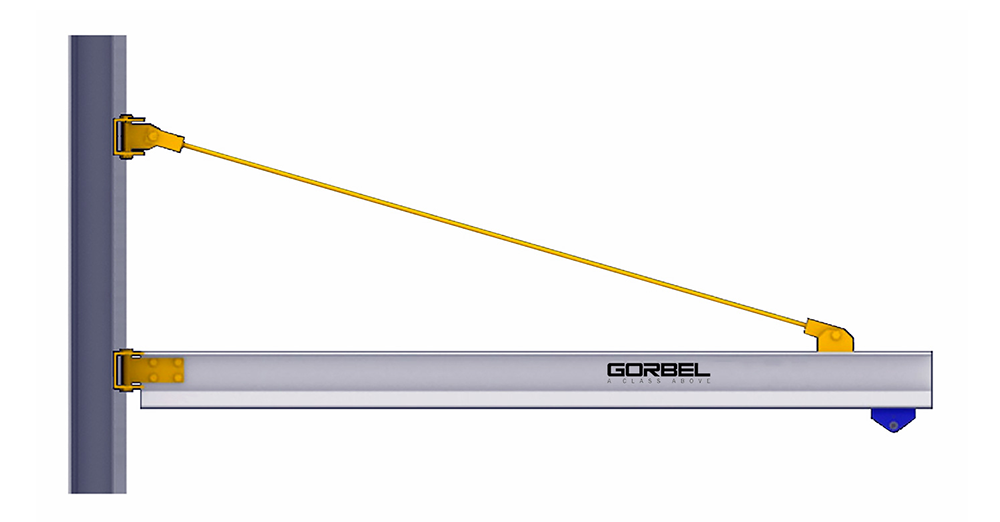

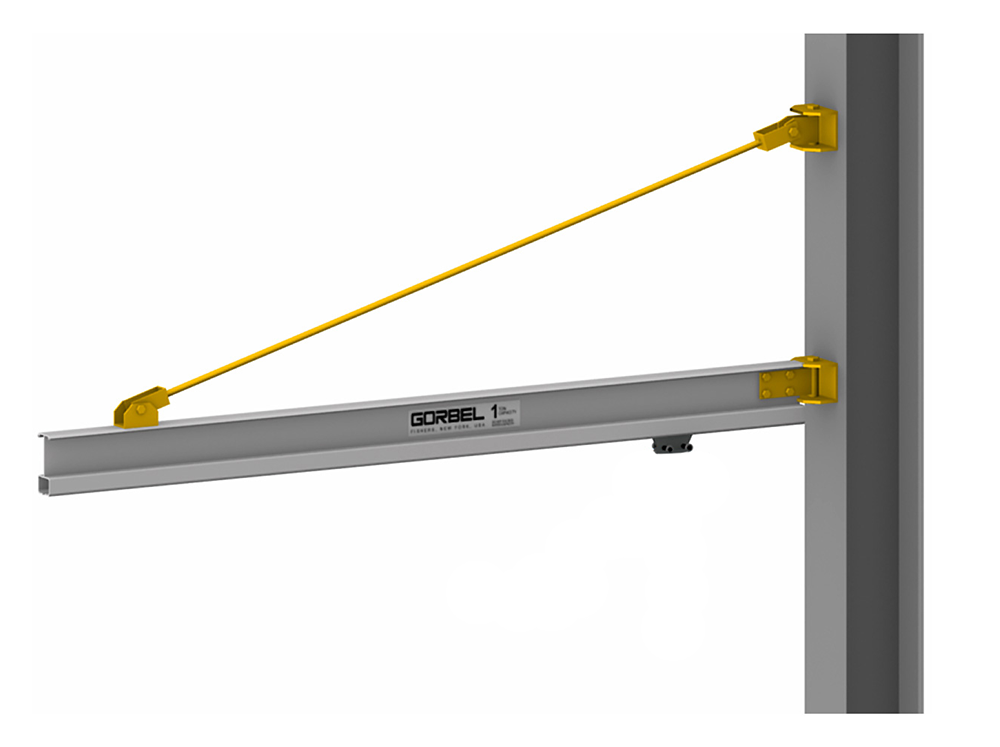

Gorbel Aluminum Wall Bracket Jib Crane, 150 lb. Cap., 20 ft. Span, Model No. AL100-G1-150-20

Manufacturer: Gorbel
SKU: AL100-G1-150-20
Manufacturer part number: AL100-G1-150-20
Lead Time: typically ships in 10-13 business days
*
$1,679.00
Products specifications
Features
  • Capacity: 150 lbs.
  • Span: 20 ft.
  • Enclosed Track Series: 250
  • Fitting Size: G1
  • Bracket Centers: 3 ft. 6 in.
  • Overturning Moment: 4.895 K-Ft
  • Axial Load: 0.2879 Kips
  • Thrust and Pull: 1.399 Kips
  • Hoist and Trolley Allowance: 22.5 lbs.
  • Tie Rod Diameter: 1 in.
  • Tie Rod Pitch: 8 unc
  • Tie Rod Length: 191 13/16 in.
  • Includes hoist trolley (1 ea.)
  • Can be mounted to a wall or column
  • Coverage: semi-circular
  • 200 degree rotation
  • Reduced deadweight of boom
  • Aluminum enclosed track make it 40% easier to move than a comparable I-Beam Jib
  • Designed to support tool balancers, air balancers, vacuum lifters, and hoists
  • All Gorbel Jib Cranes are structurally designed in accordance with the AISC Steel Construction Manual.
  • All Gorbel Jib Cranes are in accordance with OSHA Specification 1910.179 and ANSI Specification B30.11, as they apply to Jib and Overhead Cranes.
  • All Gorbel Cranes meet or exceed the requirements of MMA MH27.2 specification for enclosed track systems.
  • All Work Station Cranes are in accordance with the following Canadian Standards as they apply to Overhead Cranes: CSA Standard B167-96 and CSA Standard C22.2 No.33-M1984 (reaffirmed 2004)
  • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
  • Fabrication Standards: All welding is in accordance with AWS D14.1, and is performed by certified welders.
  • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
  • Material Standards: All structural shapes used by Gorbel are a minimum of ASTM A-36 designation. All pipes are structural grade ASTM A-53 and all tubing is ASTM A-500. All plate and round bar has minimum yield strength of 36 KSI.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of OriginMade in the USA
