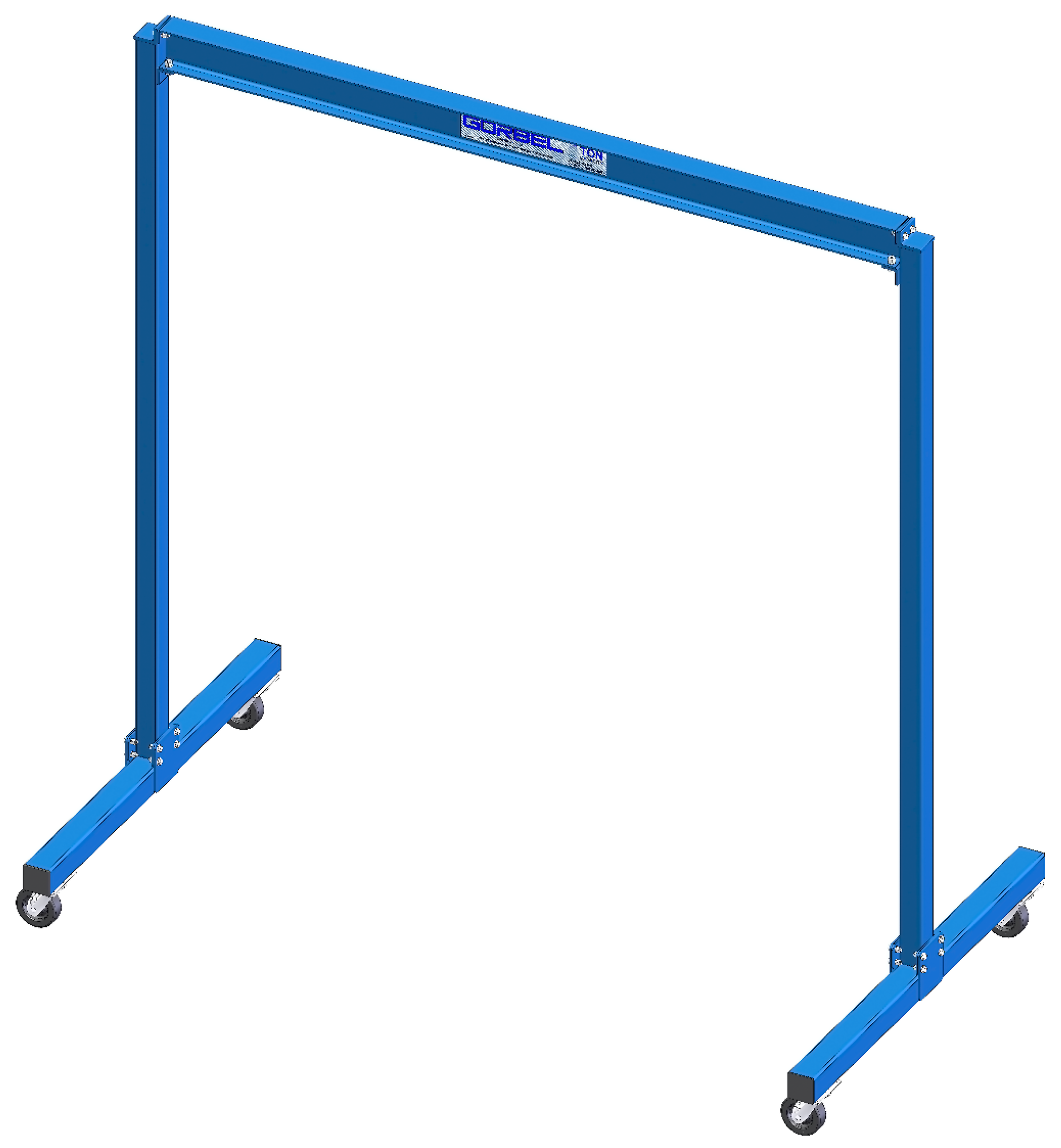

Gorbel Fixed Height Gantry Crane, 1 Ton Capacity, 12 ft. HUB, 20 ft. Span, Model No. FGM-1-12-20

Manufacturer: Gorbel

Availability: In stock

SKU: FGM-1-12-20

Manufacturer part number: FGM-1-12-20

Lead Time (subject to change, call to verify): typically ships in 13-16 business days

Color *

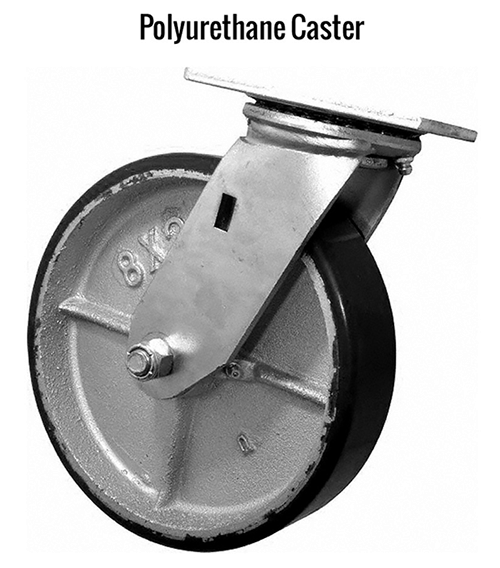

Caster Type *
Crane Accessories *

$4,832.37

Qty:

Documents, Drawings, and Manuals

Brochure

Gorbel Gantry Crane Brochure

Manual

Gorbel Gantry Crane Manual

Design Standards

Gorbel Crane Design Standards

Warranty

Gorbel 10-year Crane Warranty

Products Specifications

Attribute name	Attribute value

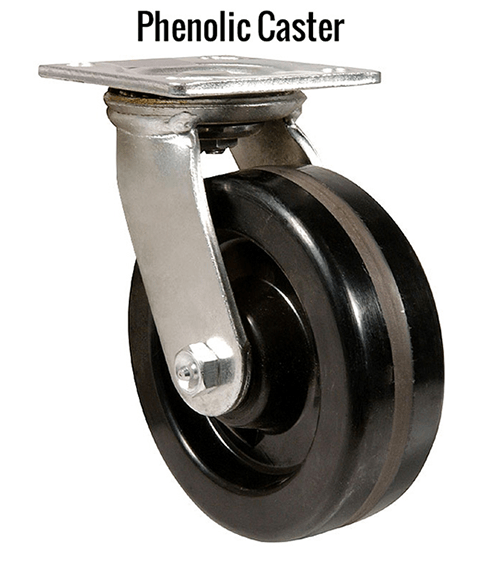

Features	Capacity: 1-Ton Span: 20 ft. Height Under Boom (HUB): 12 ft. Overall Height: 12 ft. 8-5/8 in. I-Beam Size: W8 @ 18 lbs/ft I-Beam Depth: 8-1/8 in. I-Beam Flange Width: 5-1/4 in. Clear Span: 19 ft. Gantry Tread: 5 ft. 5 in. Crane Material: Steel Movable under load. Bolted beam to upright connection ensures safety. Molded phenolic casters are standard and provide for easy movement. Square tubing uprights, knee braces, and channel base provide for stable lifting and movement. All Gorbel Gantry Cranes are structurally designed in accordance with the AISC Steel Construction Manual. All Gorbel Gantry Cranes are in accordance with OSHA Specification 1910.179 and ANSI Specification B30.11, as they apply to Gantry and Overhead Cranes. All Gorbel Cranes meet or exceed the requirements of MMA MH27.2 specification for enclosed track systems. All Work Station Cranes are in accordance with the following Canadian Standards as they apply to Overhead Cranes: CSA Standard B167-96 and CSA Standard C22.2 No.33-M1984 (reaffirmed 2004). All Gorbel Gantry Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact. Fabrication Standards: All welding is in accordance with AWS D14.1, and is performed by certified welders. All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications. Material Standards: All structural shapes used by Gorbel are a minimum of ASTM A-36 designation. All pipes are structural grade ASTM A-53 and all tubing is ASTM A-500. All plate and round bar has minimum yield strength of 36 KSI.
Warranty	10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Made in the USA
