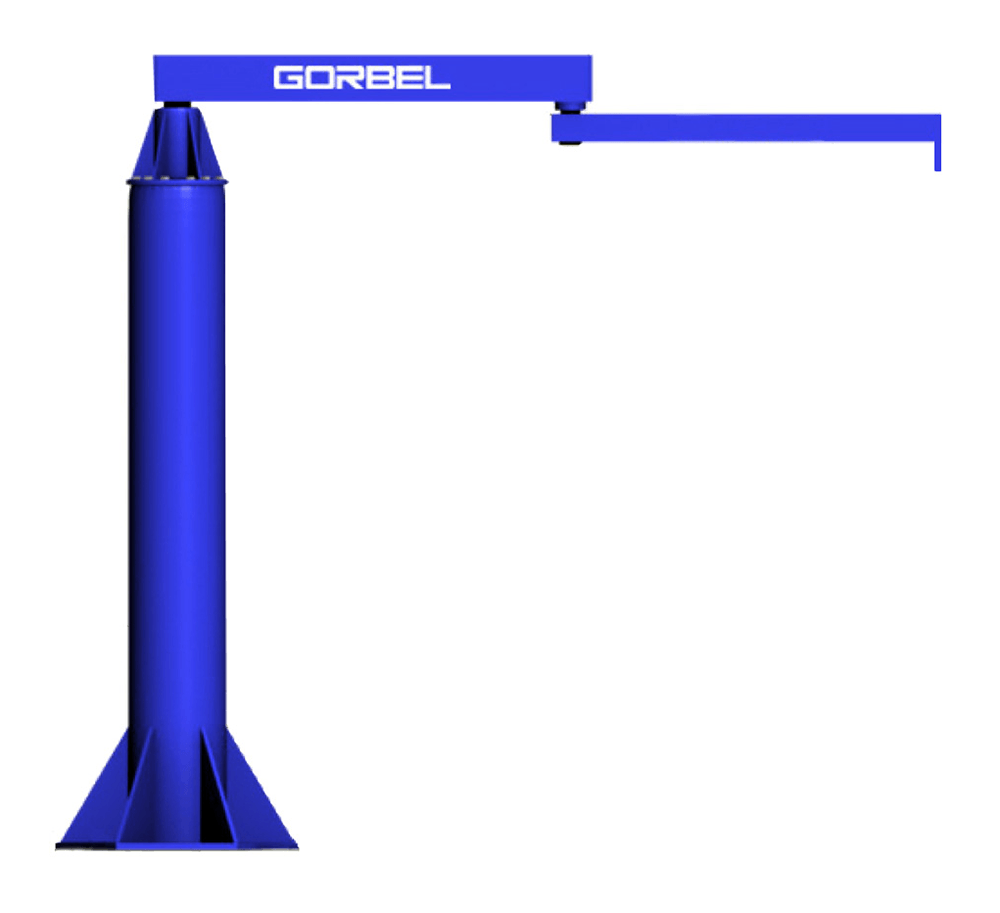

Gorbel Foundationless, Free Standing Articulating Jib Crane, 150 lb. Capacity, 8 ft. HUB, 8 ft. Span, Model No. AJ360-F-NP6-150-8-8

Manufacturer: Gorbel

Availability: In stock

SKU: AJ360-F-NP6-150-8-8

Manufacturer part number: AJ360-F-NP6-150-8-8

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Call For Festoon Options - 314-869-7200

Crane Accessories

Includes *

$9,370.52

Qty:

Documents, Drawings, and Manuals

Brochure

Gorbel Articulating Jib Cranes Brochure

Manual

Gorbel Articulating Jib Cranes Manual

Standards

Gorbel Crane Design Standards

Warranty

Gorbel 10-year Crane Warranty

Products Specifications

Attribute name	Attribute value
Features	Capacity: 150 lbs. Span: 8 ft. Height Under Boom (HUB): 8 ft. Overall Height (Crane Only): 9.0938 ft. Trolley Saddle Height: 7.7917 ft. Pipe Size: 8.625 in. Overturning Moment: 2.23 K-Ft Axial Load: 0.73 Kips Anchor Bolt Load: 0.33 Kips Overall Deflection Criteria: Span / 150 = 0.64 in. Bolt Circle Diameter: 24 in. Hoist Allowance: 22.5 lbs. Coverage: 360° Circular Rotation @ Pivot Points Shipping Weight (Overall Weight): 517 lbs. Offers effortless rotation and a consistent responsiveness when positioning loads in a work cell, into machines, through open doorways, around corners, or under obstructions. Easy to rotate when load is on inner half of the boom near the mast. Can be used with hook mounted lifting devices (electric, air, or vacuum). Special foundations may be required; crane drawing will have foundation requirements. All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications. All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty	10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Made in the USA
