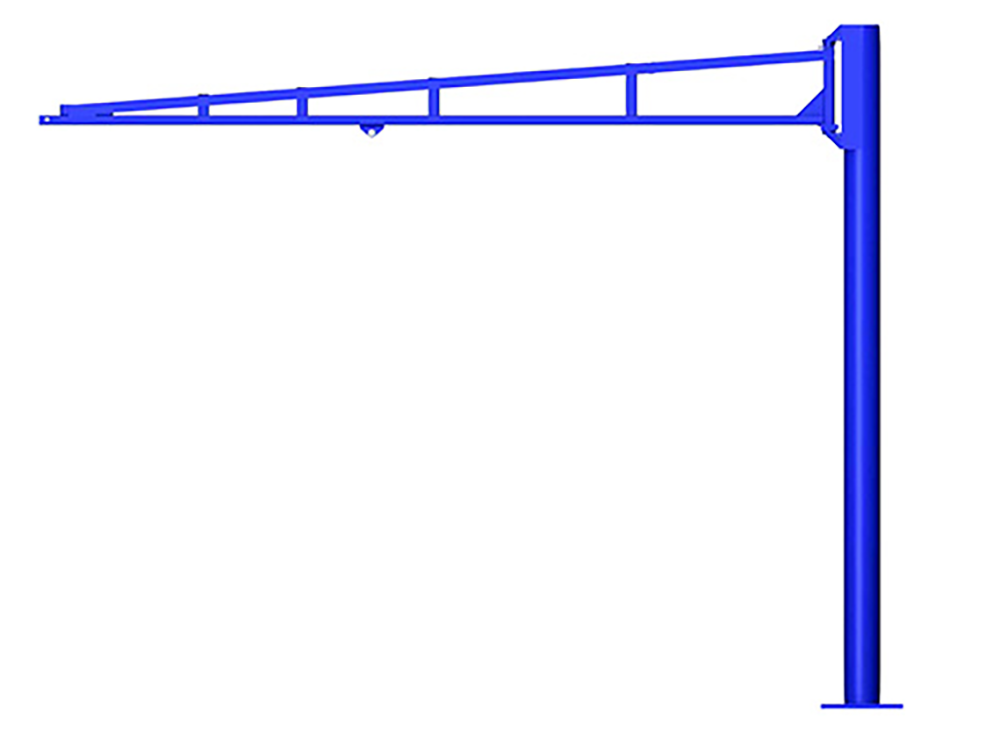

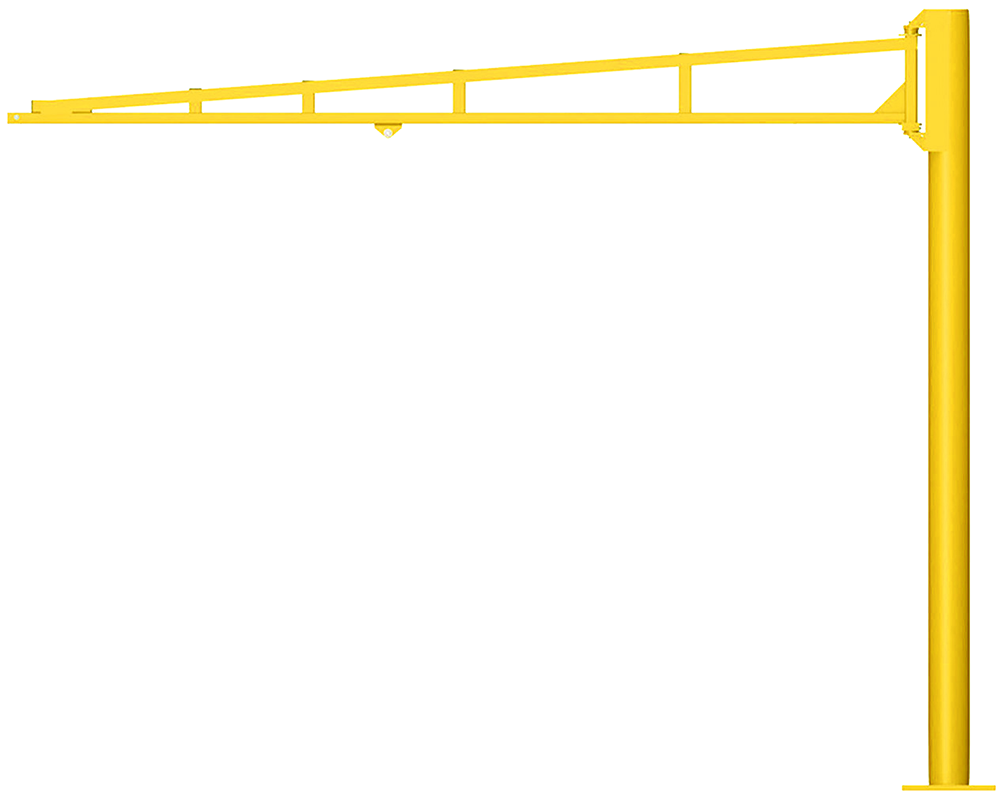

Gorbel Foundationless, Free Standing Tool Solutions Jib Crane, 150 lb. Capacity, 10 ft. HUB, 6 ft. Span, Model No. TSJ150-FS-150-10-6

Manufacturer: Gorbel
SKU: TSJ150-FS-150-10-6
Manufacturer part number: TSJ150-FS-150-10-6
Lead Time (subject to change, call to verify): typically ships in 10-13 business days
*
*
*
$2,587.20
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products Specifications
Attribute nameAttribute value
Features
  • Model: TSJ150-FS-150-10-6
  • Capacity: 150 lbs.
  • Span: 6 ft.
  • Height Under Boom (HUB): 10 ft.
  • Overall Height (Crane Only): 11.59 ft.
  • Mast Pipe Size: 6 in.
  • Enclosed Track Series: 250
  • Overturning Moment: 1,415.64 lbs-ft
  • Axial Load: 555.99 lbs.
  • Anchor Bolt Load: 611.33 lbs.
  • Anchor Bolt Size: 3/4 in. dia. (4 EA. REQ. - NOT INCLUDED WITH JIB CRANE)
  • Coverage: 200° Semi-Circular Rotation
  • Shipping Weight (Overall Weight): 399 lbs.

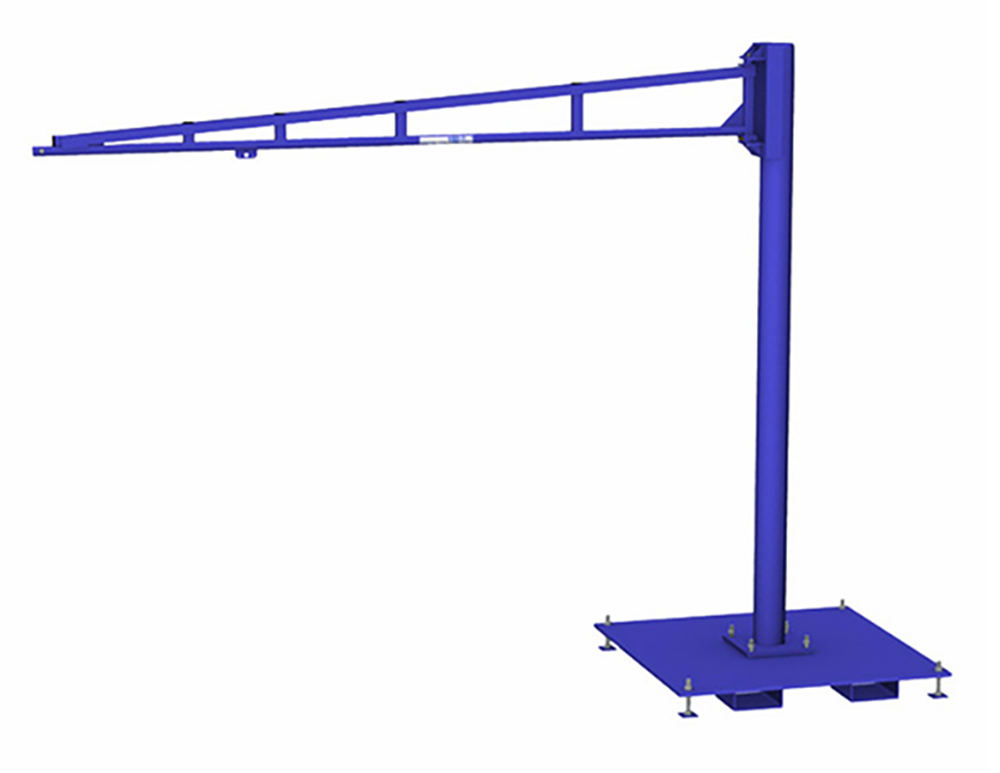

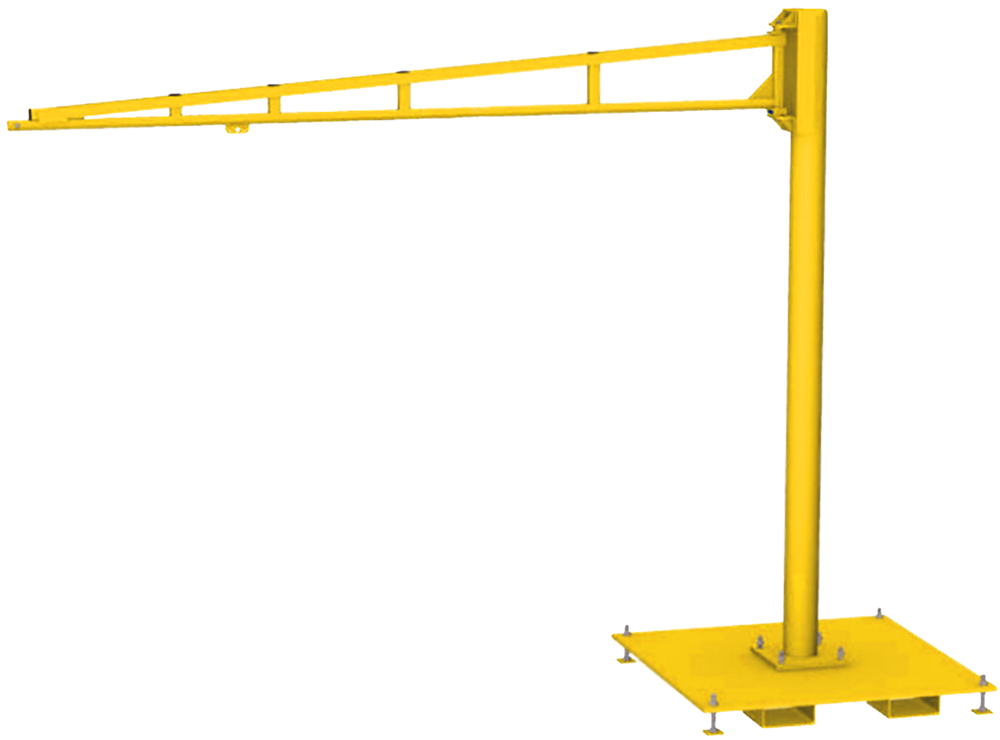

  • Portable Base Option: Includes base, fork pockets, leveling feet, and mast mounting hardware.
  • Lightweight design makes this higher capacity tool jib easy to use for applications involving heavier and high impact tools.
  • Slim profile features bracket centers of only 14 inches, making it ideal for low head room spaces.
  • Simple 4 bolt installation allows for easy adjustment of the height under boom.
  • No special foundation is required, making it easier to install in small areas where floor space may be limited.
  • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
  • Foundationless models are mounted to a 6 inch reinforced floor that require:
    • Centered placement on a square area that is free from cracks, seams, and walls.
    • Chemical anchor bolts that can withstand a minimum of 283.84 pounds of pull out force.
    • Concrete pressure of 3,000 psi that contains wire mesh reinforcement.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of OriginMade in the USA
