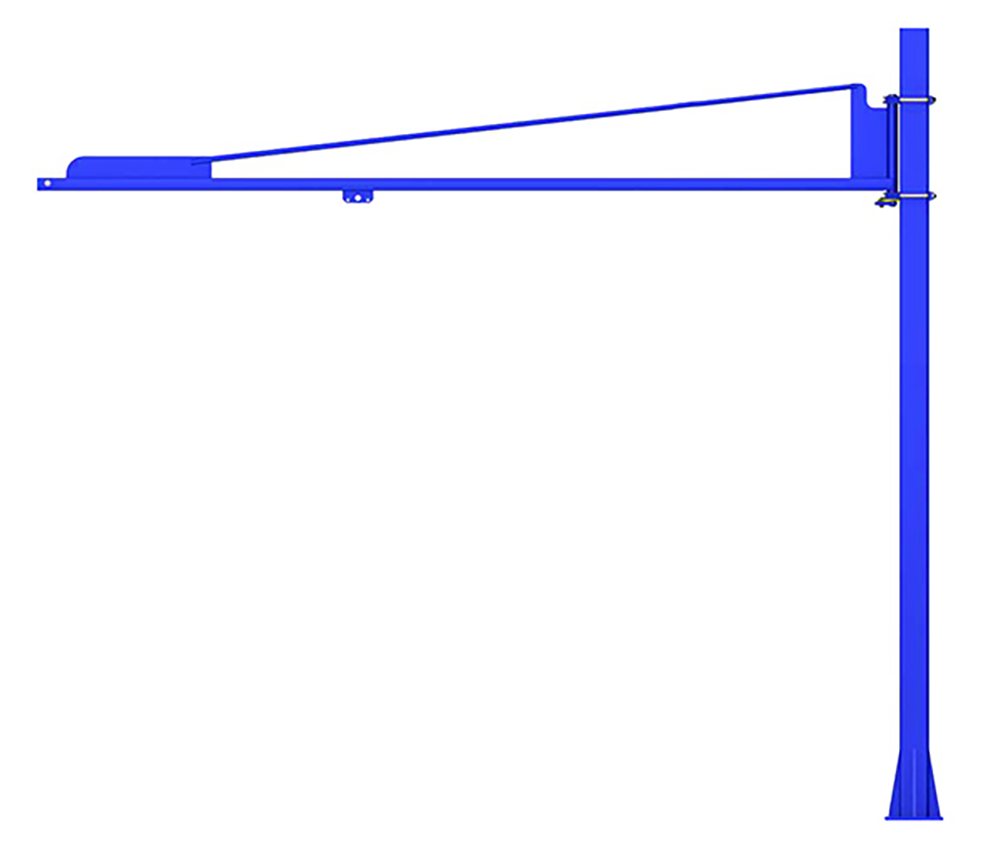

Gorbel Foundationless, Free Standing Tool Solutions Jib Crane, 50 lb. Capacity, 10 ft. HUB, 4 ft. Span, Model No. TSJ50-FS-50-10-4

Manufacturer: Gorbel
SKU: TSJ50-FS-50-10-4
Manufacturer part number: TSJ50-FS-50-10-4
Lead Time: typically ships in 10-13 business days
*
*
*
$1,116.00
Products specifications
Features
  • Mfg. Model No.: TSJ50-FS-50-10-4
  • Capacity: 50 lbs.
  • Span: 4 ft.
  • Height Under Boom (HUB): 10 ft.
  • Weight: 156 lbs. (jib crane only)
  • Overall Height: 11.22 ft.
  • Mast Width: 4 in.
  • Overall Length: 4.75 ft.
  • Overturning Moment: 339.22 lbs.-ft.
  • Axial Load: 221.51 lbs.
  • Anchor Bolt Load: 283.84 lbs.
  • Anchor Bolt Size: 1/2 in. dia. (4 EA. REQ. - NOT INCLUDED WITH JIB CRANE)

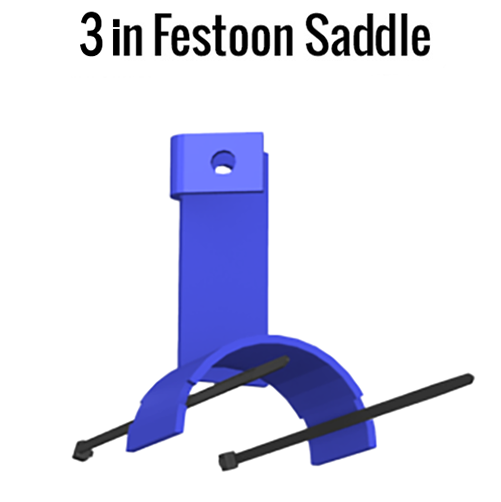

  • Uses 250 series enclosed track
  • Includes 75 lb. light tool trolley (1 ea.)
  • Coverage: semi-circular

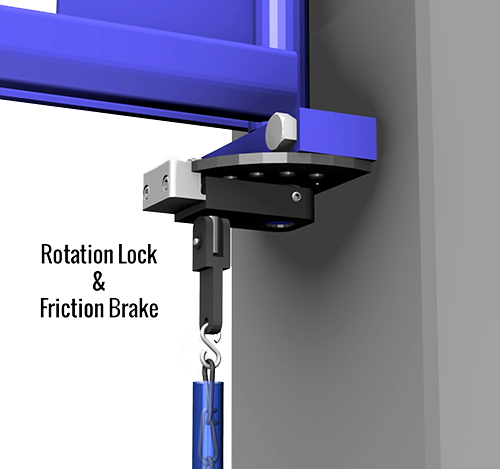

  • 180 degree rotation
  • Designed to be smaller, lighter and more cost effective for applications with suspended tools
  • No foundation required: crane drawing will have foundationless requirements
  • Simple 4 bolt installation allows for easy adjustment of the height under boom
  • Small bracket centers allow for reduced headroom requirements
  • For applications with suspended tooling or light duty lifting.
  • Slim 4 inch square mast allows installation without a foundation where floor space may be limited.
  • The four-bolt mounting brackets allow for easy adjustment of the boom height, and make conversion to wall or column mounting a simple task.
  • The small footprint of these cranes makes installation possible in small areas, such as between machines.
  • All Gorbel Jib Cranes are structurally designed in accordance with the AISC Steel Construction Manual.
  • All Gorbel Jib Cranes are in accordance with OSHA Specification 1910.179 and ANSI Specification B30.11, as they apply to Jib and Overhead Cranes.
  • All Gorbel Cranes meet or exceed the requirements of MMA MH27.2 specification for enclosed track systems.
  • All Work Station Cranes are in accordance with the following Canadian Standards as they apply to Overhead Cranes: CSA Standard B167-96 and CSA Standard C22.2 No.33-M1984 (reaffirmed 2004)
  • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
  • Fabrication Standards: All welding is in accordance with AWS D14.1, and is performed by certified welders.
  • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
  • Material Standards: All structural shapes used by Gorbel are a minimum of ASTM A-36 designation. All pipes are structural grade ASTM A-53 and all tubing is ASTM A-500. All plate and round bar has minimum yield strength of 36 KSI.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of OriginMade in the USA
