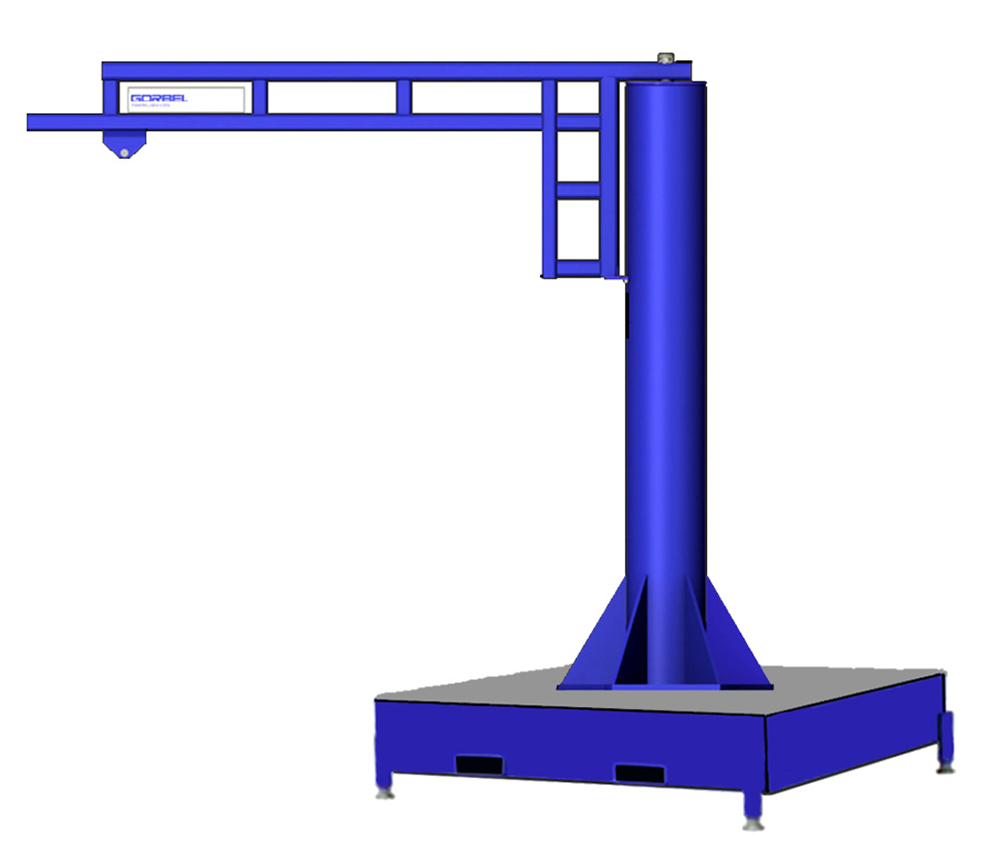

Gorbel Foundationless, Free Standing Work Station Jib Crane, 250 lb. Capacity, 12 ft. HUB, 14 ft. Span, Model No. WSJ360-NP6-250-12-14

Manufacturer: Gorbel
SKU: WSJ360-NP6-250-12-14
Manufacturer part number: WSJ360-NP6-250-12-14
Lead Time (subject to change, call to verify): typically ships in 10-13 business days
*
*
*
$3,901.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products Specifications
Attribute nameAttribute value
Features
  • Capacity: 250 lbs.
  • Overall Height (Crane Only): 13.51 ft.
  • Height Under Boom (HUB): 12 ft.
  • Span: 14 ft.
  • Pipe Size: 8.63 in.
  • Enclosed Track Series: 500
  • Overturning Moment: 5.8 K-Ft
  • Axial Load: 0.79 Kips
  • Anchor Bolt Load: 1.12 Kips
  • Thickness at Anchor Bolt: 1/2 in.
  • Hoist Trolley Included: 1 ea.
  • Hoist Allowance: 38 lbs.
  • Coverage: Circular 360 degree rotation
  • Shipping Weight (Overall Weight): 711 lbs.
  • NP6 Foundationless models are mounted to a 6 inch reinforced floor that require:
    • Centered placement on a square area that is free from cracks, seams, and walls.
    • Chemical anchor bolts that can withstand a minimum of 3,470 pounds of pull out force.
    • Concrete pressure of 3,000 psi that contains wire mesh reinforcement.
  • Designed to support tool balancers, air balancers, vacuum lifters, and hoists
  • Special foundations may be required: crane drawing will have foundation requirements
  • All Gorbel Jib Cranes are structurally designed in accordance with the AISC Steel Construction Manual.
  • All Gorbel Jib Cranes are in accordance with OSHA Specification 1910.179 and ANSI Specification B30.11, as they apply to Jib and Overhead Cranes.
  • All Gorbel Cranes meet or exceed the requirements of MMA MH27.2 specification for enclosed track systems.
  • All Work Station Cranes are in accordance with the following Canadian Standards as they apply to Overhead Cranes: CSA Standard B167-96 and CSA Standard C22.2 No.33-M1984 (reaffirmed 2004)
  • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
  • Fabrication Standards: All welding is in accordance with AWS D14.1, and is performed by certified welders.
  • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
  • Material Standards: All structural shapes used by Gorbel are a minimum of ASTM A-36 designation. All pipes are structural grade ASTM A-53 and all tubing is ASTM A-500. All plate and round bar has minimum yield strength of 36 KSI.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of OriginMade in the USA
