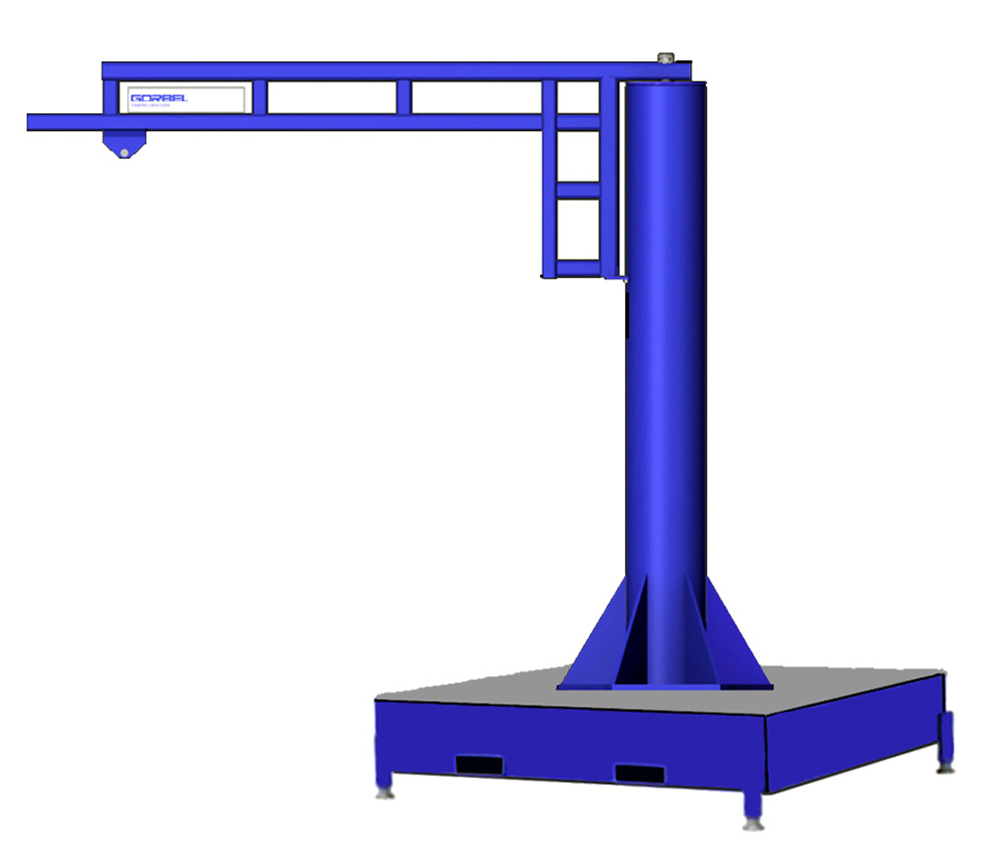

Gorbel Foundationless, Free Standing Work Station Jib Crane, 500 lb. Capacity, 14 ft. HUB, 12 ft. Span, Model No. WSJ360-NP6-500-14-12

Manufacturer: Gorbel

Availability: In stock

SKU: WSJ360-NP6-500-14-12

Manufacturer part number: WSJ360-NP6-500-14-12

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Festoon Conductor Type *

Festoon Options - Electrical *

Festoon Options - Pneumatic *

Hoist Trolley

1 Hoist Trolley Included

Crane Accessories

Extra Touch Up Paint [+$14.20]
Festoon Clamp (1 ea.) [+$33.55]
Festoon Clamps (2 ea.) [+$67.10]
Adjustable Bumper (1 ea.) [+$50.33]
Adjustable Bumpers (2 ea.) [+$100.65]
Rotation Stops (req. field welding) [+$203.88]
Portable Base (concrete not included + 25 day lead time) [+$5,486.63]

$4,579.52

Qty:

Documents, Drawings, and Manuals

Brochure

Gorbel Work Station Jib Crane Brochure

Manual

Gorbel Work Station Jib Crane Manual

Standards

Gorbel Crane Design Standards

Warranty

Gorbel 10-year Crane Warranty

Products Specifications

Attribute name	Attribute value
Features	Capacity: 500 lbs. Overall Height (Crane Only): 15.55 ft. Height Under Boom (HUB): 14 ft. Span: 12 ft. Pipe Size: 12.75 in. Enclosed Track Series: 500 Overturning Moment: 8.75 K-Ft Axial Load: 1.31 Kips Anchor Bolt Load: 1.66 Kips Thickness at Anchor Bolt: 1 1/4 in. Hoist Trolley Included: 1 ea. Hoist Allowance: 75 lbs. Coverage: Circular 360 degree rotation Shipping Weight (Overall Weight): 862 lbs. NP6 Foundationless models are mounted to a 6 inch reinforced floor that require: Centered placement on a square area that is free from cracks, seams, and walls. Chemical anchor bolts that can withstand a minimum of 3,470 pounds of pull out force. Concrete pressure of 3,000 psi that contains wire mesh reinforcement. Designed to support tool balancers, air balancers, vacuum lifters, and hoists Special foundations may be required: crane drawing will have foundation requirements All Gorbel Jib Cranes are structurally designed in accordance with the AISC Steel Construction Manual. All Gorbel Jib Cranes are in accordance with OSHA Specification 1910.179 and ANSI Specification B30.11, as they apply to Jib and Overhead Cranes. All Gorbel Cranes meet or exceed the requirements of MMA MH27.2 specification for enclosed track systems. All Work Station Cranes are in accordance with the following Canadian Standards as they apply to Overhead Cranes: CSA Standard B167-96 and CSA Standard C22.2 No.33-M1984 (reaffirmed 2004) All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact. Fabrication Standards: All welding is in accordance with AWS D14.1, and is performed by certified welders. All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications. Material Standards: All structural shapes used by Gorbel are a minimum of ASTM A-36 designation. All pipes are structural grade ASTM A-53 and all tubing is ASTM A-500. All plate and round bar has minimum yield strength of 36 KSI.
Warranty	10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Made in the USA
