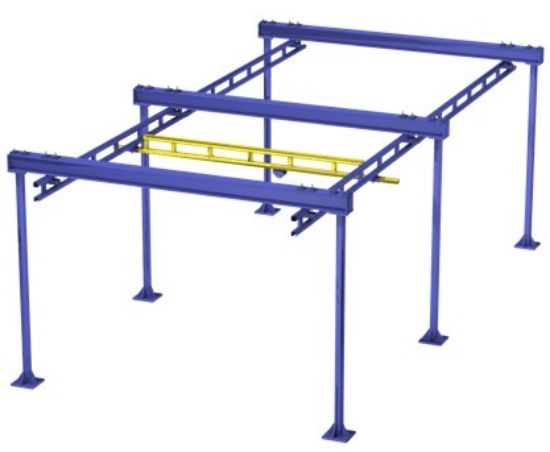

Gorbel Free Standing Work Station Bridge Crane, 4000 lb. Capacity, 15 ft. Bridge, 23 ft. Runway, Model No. GLCS-FS-4000-15-23

Products Specifications

Attribute name	Attribute value
Features	Capacity: 4000 lb. Clearance Width: 15 ft. 4 in. Overall Width: 10 ft trolley saddle: 17 ft. 12 ft trolley saddle: 17 ft. 14 ft trolley saddle: 17 ft. Overall Height: 10 ft trolley saddle: 12 ft. 11 7/8 in. 12 ft trolley saddle: 14 ft. 11 7/8 in. 14 ft trolley saddle: 16 ft. 11 7/8 in. Install Dimensions: Max Hanger Spacing: 20 ft. Splice Joint to Hanger: 48 in. Bridge Cantilever: 24 in. Max Runway Cantilever: 48 in. Review Gorbel Work Station Bridge Crane Dimensions Guide for additional specifications.
Key Benefits	*Ease of Movement* User-friendly manuvering of the bridge and trolleys without debris buildup ensures trolley wheel longevity. *Load Positioning* Frame-style assembly allows for superior load distribution as the bridge moves along the enclosed track. *Modular Design* Workflow expansion and relocation possible with the convenient addition/removal of support assembly components.
Warranty	10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Made in the USA
