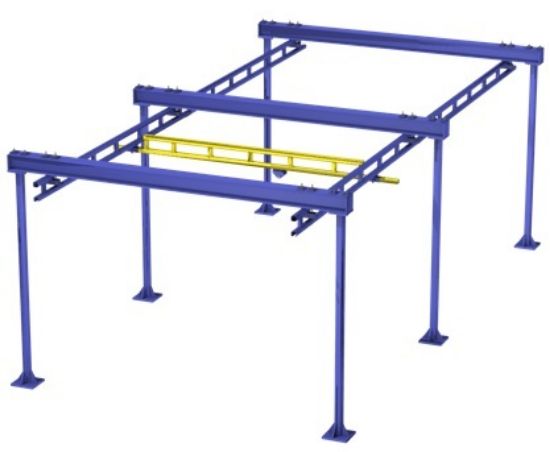

Gorbel Free Standing Work Station Bridge Crane
Gorbel Free Standing Work Station Bridge Crane Gorbel Enclosed Track Hoist Trolley Gorbel Enclosed Track Standard End Truck Gorbel Enclosed Track End Stop Bumper Gorbel Enclosed Track End Stop Gorbel Enclosed Track Festoon Glider Gorbel Enclosed Track Festoon Clamp Gorbel Enclosed Track Festoon Stack-Up Section Hanger for Trussed Steel Track

Gorbel Free Standing Work Station Bridge Crane, 500 lb. Capacity, 20 ft. Bridge, 28 ft. Runway, Model No. GLCSL-FS-500-20-28

Manufacturer: Gorbel
Availability: In stock
SKU: GLCSL-FS-500-20-28
Manufacturer part number: GLCSL-FS-500-20-28
Lead Time (subject to change, call to verify): typically ships in 16-20 business days
*
*
$13,117.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals

Brochure

Gorbel Brochure Image

Gorbel Free Standing Work Station Bridge Crane Brochure

Manual

Gorbel Manual Image

Gorbel Free Standing Work Station Bridge Crane Manual

Standards

Gorbel Crane Design Standards

Gorbel Crane Design Standards

Warranty

Gorbel 10-year Crane Warranty

Gorbel 10-year Crane Warranty

Products Specifications
Attribute nameAttribute value
Features
  • Capacity: 500 lb.
  • Clearance Width: 20 ft. 4 in.
  • Overall Width:
    • 10 ft trolley saddle: 21 ft. 4 in.
    • 12 ft trolley saddle: 21 ft. 6 in.
    • 14 ft trolley saddle: 21 ft. 6 in.
  • Overall Height:
    • 10 ft trolley saddle: 11 ft. 11 3/8 in.
    • 12 ft trolley saddle: 13 ft. 11 3/8 in.
    • 14 ft trolley saddle: 15 ft. 11 3/8 in.
  • Install Dimensions:
    • Max Hanger Spacing: 25 ft.
    • Splice Joint to Hanger: 48 in.
    • Bridge Cantilever: 24 in.
    • Max Runway Cantilever: 48 in.
  • Review Gorbel Work Station Bridge Crane Dimensions Guide for additional specifications.
Key Benefits
  • Ease of Movement
    • User-friendly manuvering of the bridge and trolleys without debris buildup ensures trolley wheel longevity.
  • Load Positioning
    • Frame-style assembly allows for superior load distribution as the bridge moves along the enclosed track.
  • Modular Design
    • Workflow expansion and relocation possible with the convenient addition/removal of support assembly components.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of OriginMade in the USA
