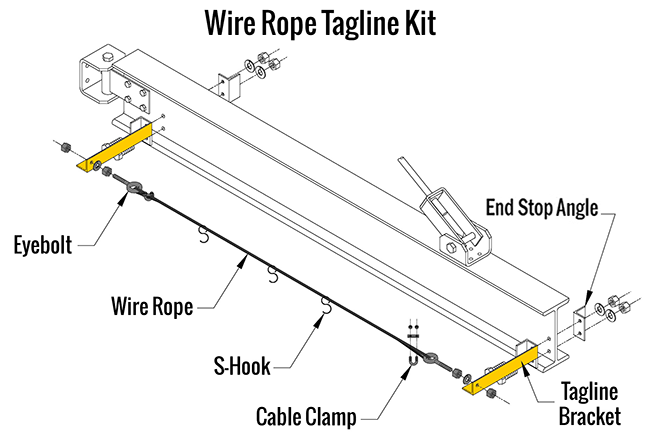

Gorbel Wall Bracket I-Beam Jib Crane, 1 Ton Cap., 8 ft. Span, Model No. WB100-G1-8-W6

Manufacturer: Gorbel
SKU: WB100-G1-8-W6
Manufacturer part number: WB100-G1-8-W6
Lead Time: typically ships in 10-13 business days
Products specifications
  • Capacity: 1 Ton
  • Span: 8 ft.
  • I-Beam Size: W6 @ 12 lbs/ft
  • I-Beam Flange Width: 4 in.
  • Bracket Centers: 2'-9"
  • Fitting Size: G1
  • Overturning Moment: 19.98 K-Ft
  • Axial Load: 2.96 Kips
  • Thrust and Pull: 7.267 Kips
  • Hoist and Trolley Allowance: 300 lbs.
  • Tie Rod Diameter: 1 in.
  • Tie Rod Pitch: 8 unc
  • Tie Rod Length: 70-5/16 in.
  • Coverage: semi-circular
  • 200 degree rotation
  • All Gorbel Jib Cranes are structurally designed in accordance with the AISC Steel Construction Manual.
  • All Gorbel Jib Cranes are in accordance with OSHA Specification 1910.179 and ANSI Specification B30.11, as they apply to Jib and Overhead Cranes.
  • All Gorbel Cranes meet or exceed the requirements of MMA MH27.2 specification for enclosed track systems.
  • All Work Station Cranes are in accordance with the following Canadian Standards as they apply to Overhead Cranes: CSA Standard B167-96 and CSA Standard C22.2 No.33-M1984 (reaffirmed 2004)
  • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
  • Fabrication Standards: All welding is in accordance with AWS D14.1, and is performed by certified welders.
  • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
  • Material Standards: All structural shapes used by Gorbel are a minimum of ASTM A-36 designation. All pipes are structural grade ASTM A-53 and all tubing is ASTM A-500. All plate and round bar has minimum yield strength of 36 KSI.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of OriginMade in the USA
