Gorbel Wall Bracket I-Beam Jib Crane, 5 Ton Cap., 10 ft. Span, Model No. WB100-G5-10-W10

Manufacturer: Gorbel
SKU: WB100-G5-10-W10
Manufacturer part number: WB100-G5-10-W10
Lead Time (subject to change, call to verify): typically ships in 10-13 business days
*
*
$5,950.82
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

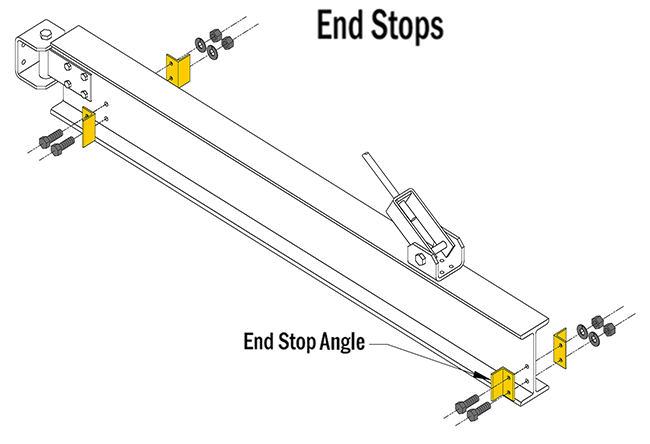

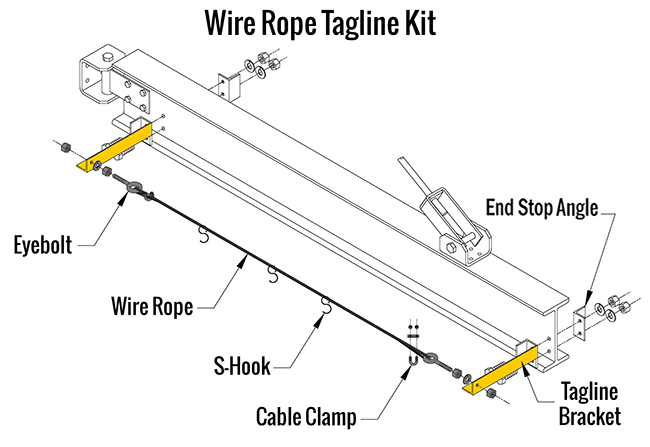

Products Specifications
Attribute nameAttribute value
Features
  • Capacity: 5 Ton
  • Span: 10 ft.
  • Beam Size: W10 @ 26 lbs/ft
  • Fitting Size: G5
  • Flange Width: 5.77 in.
  • Bracket Centers: 3 ft. 3 in.
  • Overturning Moment: 127.3 K-Ft
  • Axial Load: 14.9765 Kips
  • Thrust and Pull: 39.169 Kips
  • Hoist Allowance: 1,500 lbs.
  • Tie Rod Diameter: 2 in.
  • Tie Rod Pitch: 4.5 unc
  • Tie Rod Length: 7 ft. 9.5 in.
  • Coverage: 200° Semi-Circular Rotation
  • Shipping Weight (Overall Weight): 766 lbs.
  • The most economical means of providing hoist coverage for individual use in bays, along walls or columns of plants, or as a supplement to an overhead crane or monorail system.
  • Low dead weight of the boom combined with bronze bushings and oil-impregnated bronze thrust washers provide for easy rotation and superior load positioning.
  • Designed to support tool balancers, air balancers, vacuum lifters, and hoists.
  • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
  • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of OriginMade in the USA
