Gorbel Wall Bracket I-Beam Jib Crane, 1/2 Ton Cap., 12 ft. Span, Model No. WB100-G1-12-W6-1000

Manufacturer: Gorbel
SKU: WB100-G1-12-W6-1000
Manufacturer part number: WB100-G1-12-W6-1000
Lead Time: typically ships in 10-13 business days

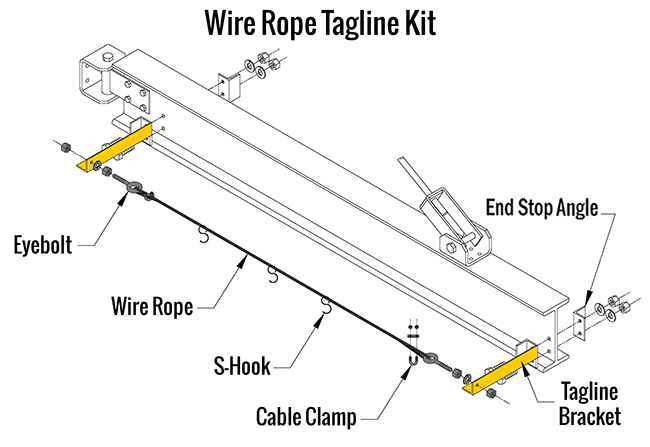

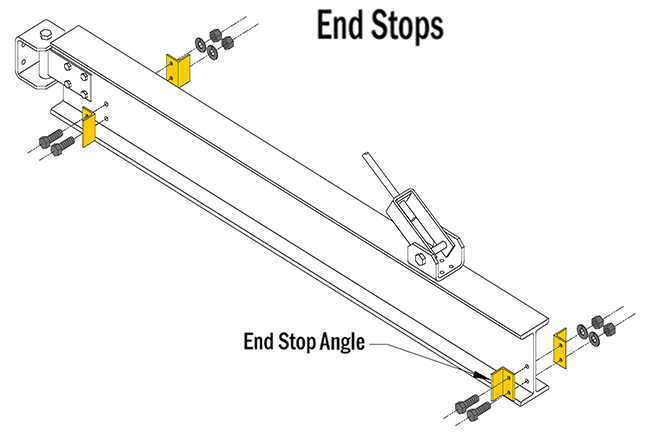

Products specifications
  • Capacity: 1/2 Ton
  • Span: 12 ft.
  • I-Beam Size: S6 @ 12.5 lbs/ft
  • I-Beam Flange Width: 3.332 in
  • Bracket Centers: 3'-9''
  • Fitting Size: G1
  • Overturning Moment: 16.3 K-Ft
  • Axial Load: 1.55 Kips
  • Thrust and Pull: 4.347 Kips
  • Hoist and Trolley Allowance: 150 lbs.
  • Tie Rod Diameter: 1 inch
  • Tie Rod Pitch: 8 unc
  • Tie Rod Length: 113-15/16 inches
  • Coverage: semi-circular
  • 200 degree rotation
  • All Gorbel Jib Cranes are structurally designed in accordance with the AISC Steel Construction Manual.
  • All Gorbel Jib Cranes are in accordance with OSHA Specification 1910.179 and ANSI Specification B30.11, as they apply to Jib and Overhead Cranes.
  • All Gorbel Cranes meet or exceed the requirements of MMA MH27.2 specification for enclosed track systems.
  • All Work Station Cranes are in accordance with the following Canadian Standards as they apply to Overhead Cranes: CSA Standard B167-96 and CSA Standard C22.2 No.33-M1984 (reaffirmed 2004)
  • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
  • Fabrication Standards: All welding is in accordance with AWS D14.1, and is performed by certified welders.
  • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
  • Material Standards: All structural shapes used by Gorbel are a minimum of ASTM A-36 designation. All pipes are structural grade ASTM A-53 and all tubing is ASTM A-500. All plate and round bar has minimum yield strength of 36 KSI.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of OriginMade in the USA
