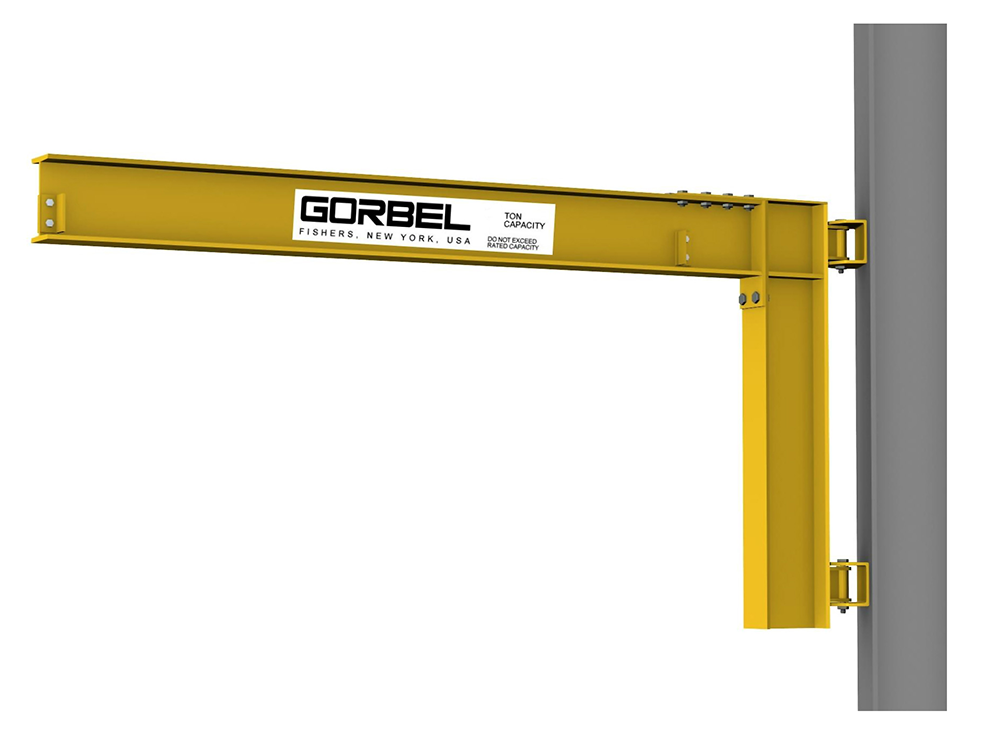

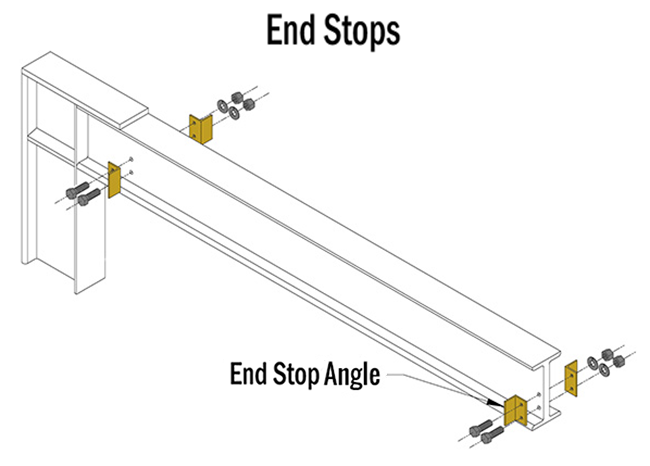

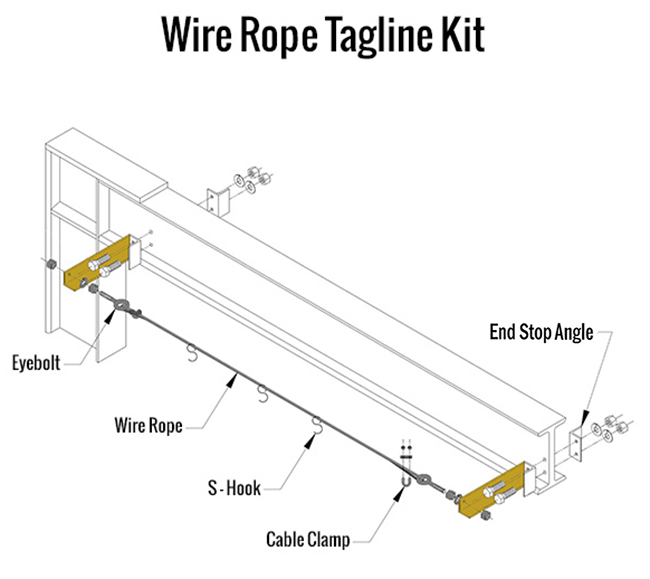

Gorbel Wall Cantilever I-Beam Jib Crane, 1/2 Ton Cap., 16 ft. Span, Model No. WC200-B1-16-W10

Manufacturer: Gorbel
SKU: WC200-B1-16-W10-1000
Manufacturer part number: WC200-B1-16-W10-1000
Lead Time (subject to change, call to verify): typically ships in 10-13 business days
*
*
$3,373.84
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products Specifications
Attribute nameAttribute value
Features
  • Capacity: 1/2 Ton
  • Span: 16 ft.
  • Beam Size: W10
  • Fitting Size: B1
  • Flange Width: 5.77 in.
  • Bracket Centers: 4 ft.
  • Thrust and Pull: 6.08 Kips
  • Overturning Moment: 24.33 K-Ft
  • Axial Load: 1.75 Kips
  • Hoist Allowance: 150 lbs.
  • Coverage: 200° Semi-Circular Rotation
  • Shipping Weight (Overall Weight): 647 lbs.
  • Ideal for individual use in bays, along walls or columns of plants, or as a supplement to an overhead crane or monorail system.
  • The jib has the advantage of providing maximum lift for the hoist, since it can be installed very close to the underside of the lowest ceiling obstruction.
  • When the bracket center dimension is 6 ft. or less, the mast/boom connection is welded. This provides the most economical means of installation.
  • When the bracket center is greater than 6 ft., a bolted mast/boom connection is used, which enables the larger cranes to be shipped disassembled for ease of handling during shipping and installation.
  • Grease fittings are provided for easy field lubrication.
  • Designed to support tool balancers, air balancers, vacuum lifters, and hoists.
  • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
  • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of OriginMade in the USA
