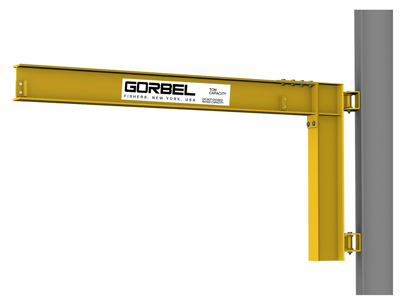

Gorbel Wall Cantilever I-Beam Jib Crane, 1/4 Ton Cap., 14 ft. Span, Model No. WC200-B1-14-W8

Manufacturer: Gorbel

SKU: WC200-B1-14-W8-500

Manufacturer part number: WC200-B1-14-W8-500

Lead Time: typically ships in 10-13 business days

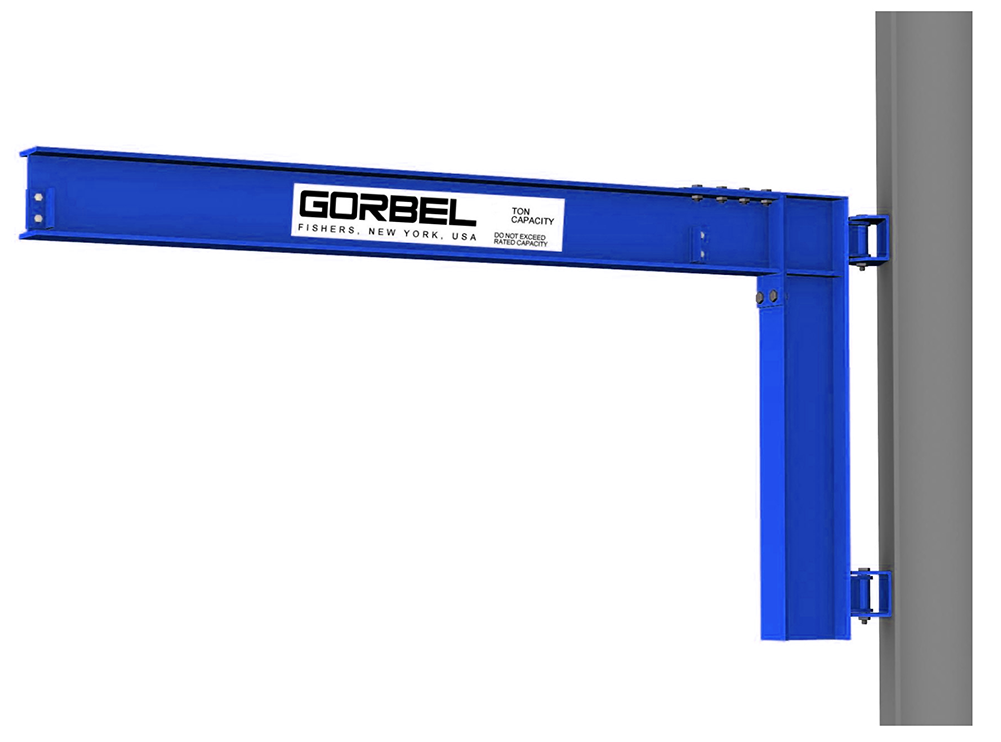

Color *

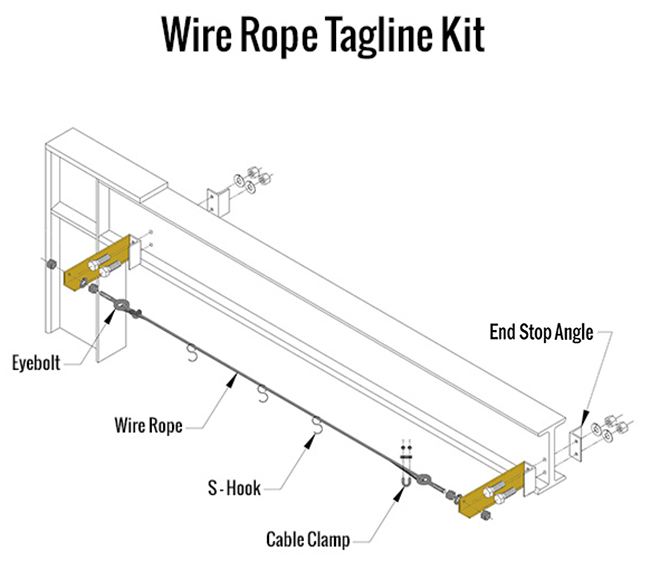

Festoon Conductor Type (Tagline Kit Included) *

Crane Accessories

Extra Touch Up Paint [+$10.00]

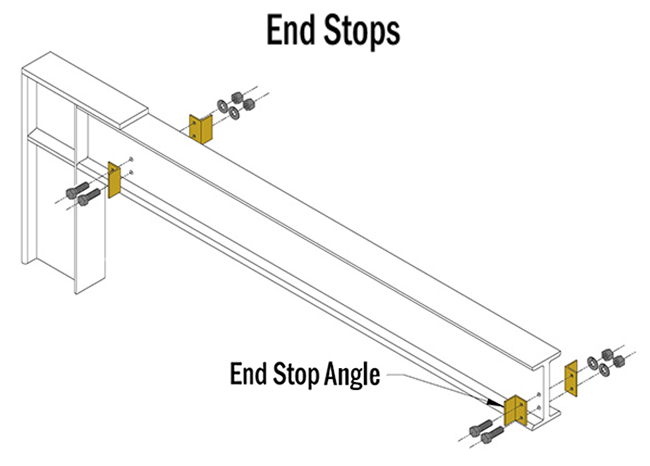

Rotation Stops (req. field welding) [+$44.00]

$1,463.00

Qty:

Documents, Drawings, and Manuals

Brochure

Gorbel Wall Mounted Jib Crane Brochure

Manual

Gorbel Wall Cantilever I-Beam Jib Crane Manual

Standards

Gorbel Crane Design Standards

Warranty

Gorbel 10-year Crane Warranty

Products specifications

Features	Capacity: 1/4 Ton Span: 14 ft. I-Beam Size: W8 I-Beam Flange Width: 5.25 in. Bracket Centers: 3 ft. Fitting Size: B1 Overturning Moment: 10.86 K-Ft Axial Load: 0.91 Kips Thrust and Pull: 3.62 Kips Hoist and Trolley Allowance: 75 lbs. Coverage: semi-circular 200 degree rotation Requires very little headroom, so it can be installed very close to the underside of ceilings to provide maximum lift for your hoist All Gorbel Jib Cranes are structurally designed in accordance with the AISC Steel Construction Manual. All Gorbel Jib Cranes are in accordance with OSHA Specification 1910.179 and ANSI Specification B30.11, as they apply to Jib and Overhead Cranes. All Gorbel Cranes meet or exceed the requirements of MMA MH27.2 specification for enclosed track systems. All Work Station Cranes are in accordance with the following Canadian Standards as they apply to Overhead Cranes: CSA Standard B167-96 and CSA Standard C22.2 No.33-M1984 (reaffirmed 2004) All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact. Fabrication Standards: All welding is in accordance with AWS D14.1, and is performed by certified welders. All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications. Material Standards: All structural shapes used by Gorbel are a minimum of ASTM A-36 designation. All pipes are structural grade ASTM A-53 and all tubing is ASTM A-500. All plate and round bar has minimum yield strength of 36 KSI.
Warranty	10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Made in the USA
