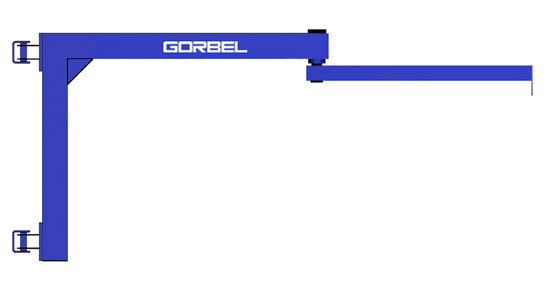

Gorbel Wall Mounted Articulating Jib Crane, 150 lb. Capacity, 10 ft. Span, Model No. AJ200-B1-150-10

Manufacturer: Gorbel
SKU: AJ200-B1-150-10
Manufacturer part number: AJ200-B1-150-10
Lead Time: typically ships in 10-13 business days
    Products specifications
    • Capacity: 150 lbs.
    • Span: 10 ft.
    • Thrust and Pull: 0.92 Kips
    • Hoist Allowance: 22.5 lbs.
    • Overall Deflection Criteria: Span / 200 = 0.6 in.
    • Coverage: semi-circular
    • 200 degree rotation in the primary boom and 360 degree in the secondary boom
    • Can be used with hook mounted lifting devices (electric, air, or vacuum)
    • Applications: circular coverage areas, moving loads around corners or through doorways, reaching loads into machines, swinging loads under obstructions
    • Effortless rotation
    • Designed to support tool balancers, air balancers, vacuum lifters, and hoists
    • All Gorbel Jib Cranes are structurally designed in accordance with the AISC Steel Construction Manual.
    • All Gorbel Jib Cranes are in accordance with OSHA Specification 1910.179 and ANSI Specification B30.11, as they apply to Jib and Overhead Cranes.
    • All Gorbel Cranes meet or exceed the requirements of MMA MH27.2 specification for enclosed track systems.
    • All Work Station Cranes are in accordance with the following Canadian Standards as they apply to Overhead Cranes: CSA Standard B167-96 and CSA Standard C22.2 No.33-M1984 (reaffirmed 2004)
    • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
    • Fabrication Standards: All welding is in accordance with AWS D14.1, and is performed by certified welders.
    • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
    • Material Standards: All structural shapes used by Gorbel are a minimum of ASTM A-36 designation. All pipes are structural grade ASTM A-53 and all tubing is ASTM A-500. All plate and round bar has minimum yield strength of 36 KSI.
    Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
    Country of OriginMade in the USA
