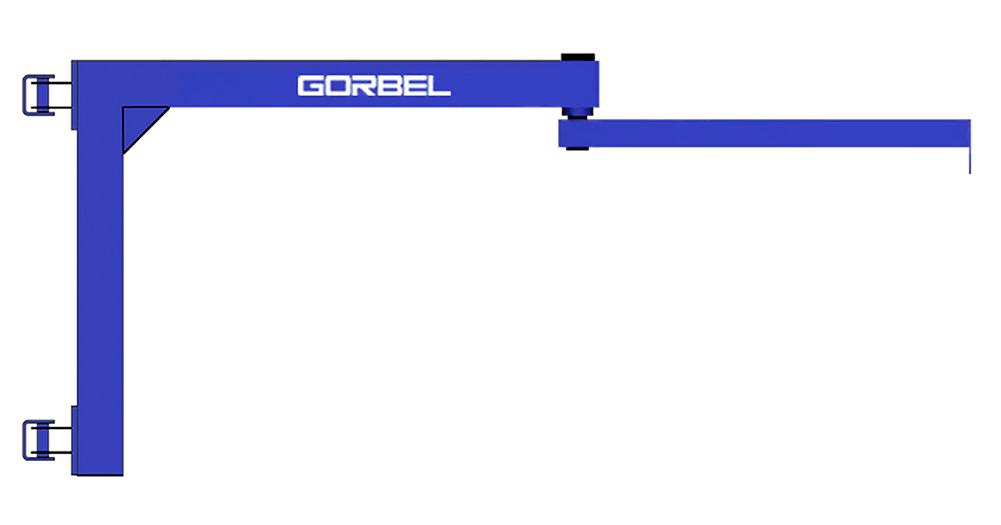

Gorbel Wall Mounted Articulating Jib Crane, 250 lb. Capacity, 10 ft. Span, Model No. AJ200-B1-250-10

Manufacturer: Gorbel
SKU: AJ200-B1-250-10
Manufacturer part number: AJ200-B1-250-10
Lead Time: typically ships in 10-13 business days
    $3,938.00
    Products specifications
    Features
    • Capacity: 250 lbs.
    • Span: 10 ft.
    • Bracket Centers: 36 in.
    • Thrust & Pull: 1.54 Kips
    • Overall Deflection Criteria: Span / 200 = 0.6 in.
    • Hoist Allowance: 37.5 lbs.
    • Primary Boom:
      • Arm Length: 6 ft. 1 in.
      • Pipe Size: 7 in.
      • Coverage: 200° Semi-Circular Rotation
    • Secondary Boom:
      • Arm Length: 3 ft. 11 in.
      • Pipe Size: 5 in.
      • Coverage: 360° Circular Rotation
    • Shipping Weight (Overall Weight): 421 lbs.
    • Perfect for applications that require maneuvering under obstructions or around obstacles where there is an adequate wall/column to support the crane.
    • Can be used with hook mounted lifting devices (electric, air, or vacuum).
    • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
    • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
    Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
    Country of OriginMade in the USA
