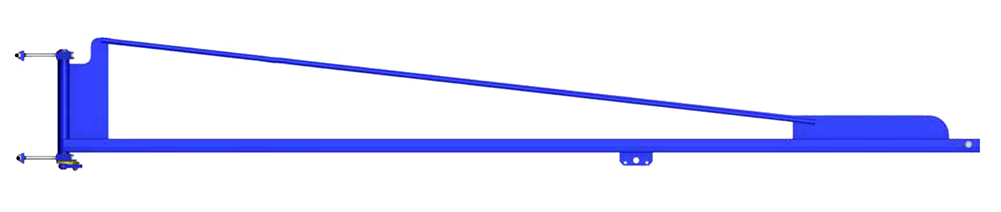

Gorbel Wall Mounted Tool Solutions Jib Crane, 50 lb. Capacity, 10 ft. Span, Model No. TSJ50-WM-50-10

Manufacturer: Gorbel

Availability: In stock

SKU: TSJ50-WM-50-10

Manufacturer part number: TSJ50-WM-50-10

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

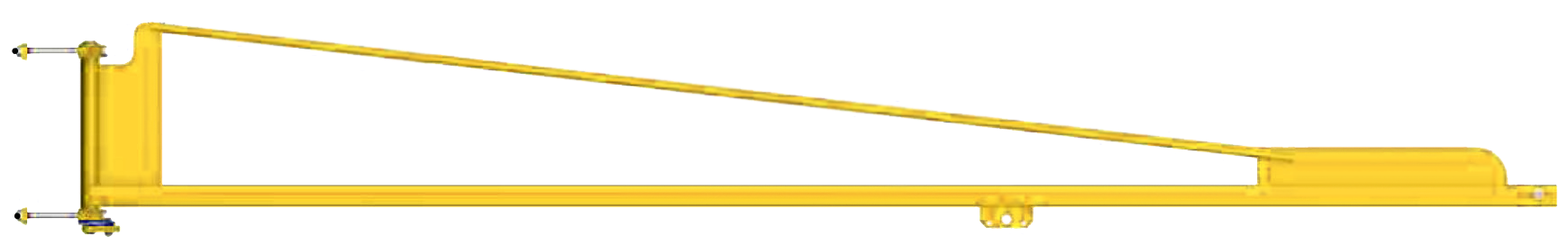

Color *

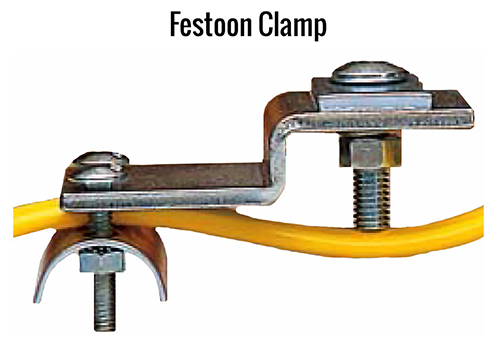

Festoon Conductor Type *

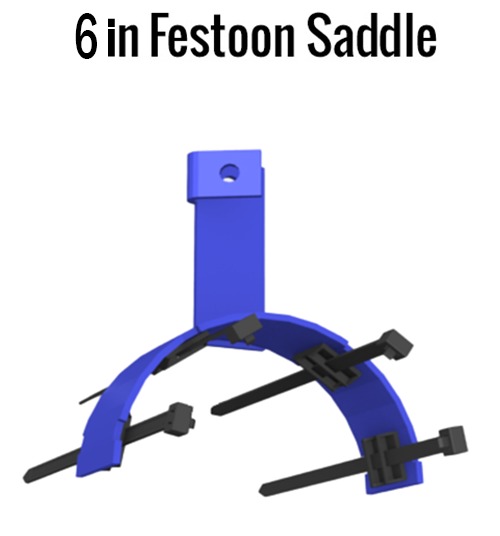

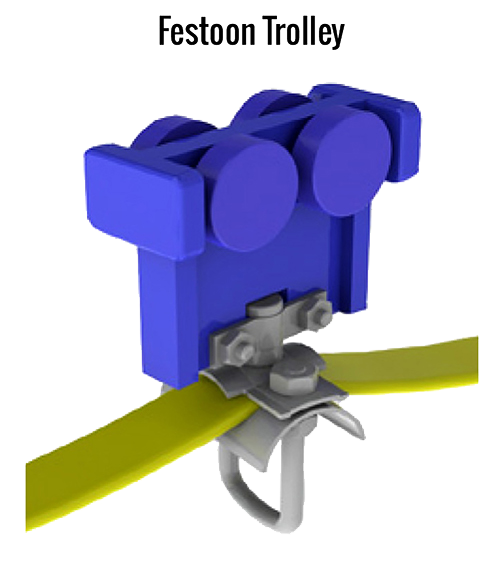

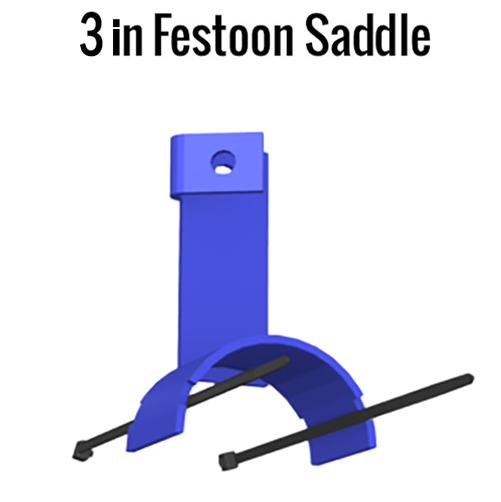

Festoon Carrier *

Hoist Trolley

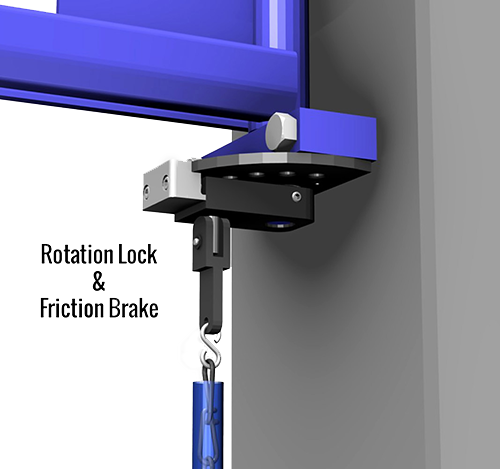

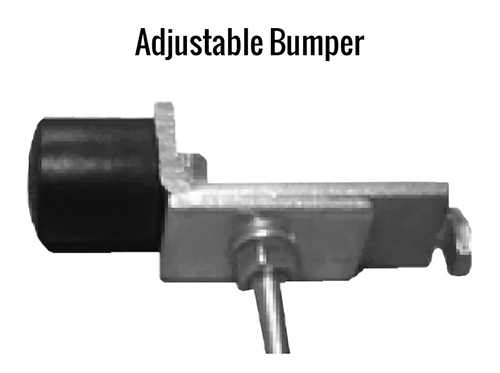

Crane Accessories

$1,035.41

Qty:

Documents, Drawings, and Manuals

Brochure

Tool Balancer Jib Cranes Brochure

Manual

Tool Balancer Jib Cranes Manual

Standards

Gorbel Crane
Design Standards

Warranty

Gorbel Cranes
10-Year Warranty

Products Specifications

Attribute name	Attribute value
Features	Model: TSJ50-WM-50-10 Capacity: 50 lbs. Span: 10 ft. Enclosed Track Series: 250 Thrust and Pull: 500 lbs. Anchor Bolt Size: 1/2 in. dia. (4 EA. REQ. - NOT INCLUDED WITH JIB CRANE) Coverage: 180° Semi-Circular Rotation Shipping Weight (Overall Weight): 157 lbs. Lightweight tie rod style ensures easy movement and high performance without giving you more crane than you need for low capacity applications. Designed to be smaller, lighter, and more cost effective for applications with suspended tooling or light duty lifting. Small bracket centers allow for reduced headroom requirements. All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty	10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Made in the USA
