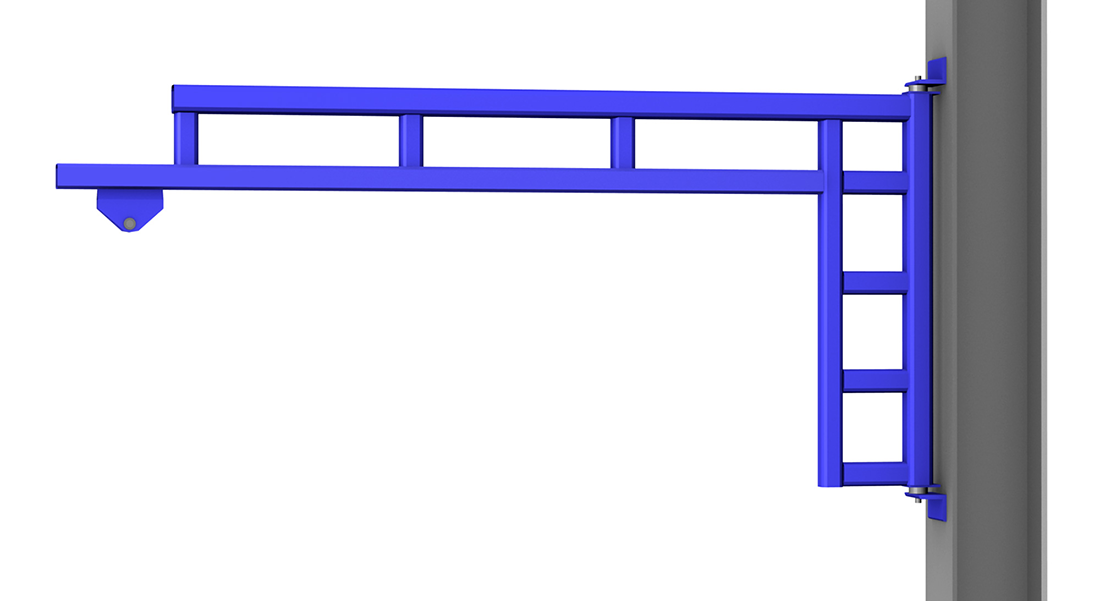

Gorbel Wall Mounted Work Station Jib Crane, 1000 lb. Capacity, 16 ft. Span, Model No. WSJ200-1000-16

Manufacturer: Gorbel
SKU: WSJ200-1000-16
Manufacturer part number: WSJ200-1000-16
Lead Time (subject to change, call to verify): typically ships in 10-13 business days
*
$3,136.20
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products Specifications
Attribute nameAttribute value
Features
  • Capacity: 1,000 lbs.
  • Span: 16 ft.
  • Enclosed Track Series: 2,000
  • Overturning Moment: 24.04 K-Ft
  • Axial Load: 1.69 Kips
  • Thrust and Pull: 4.007 Kips
  • Hoist Trolley Included: 1 ea.
  • Hoist Allowance: 150 lbs.
  • Coverage: 200° Semi-Circular Rotation
  • Shipping Weight (Overall Weight): 533 lbs.

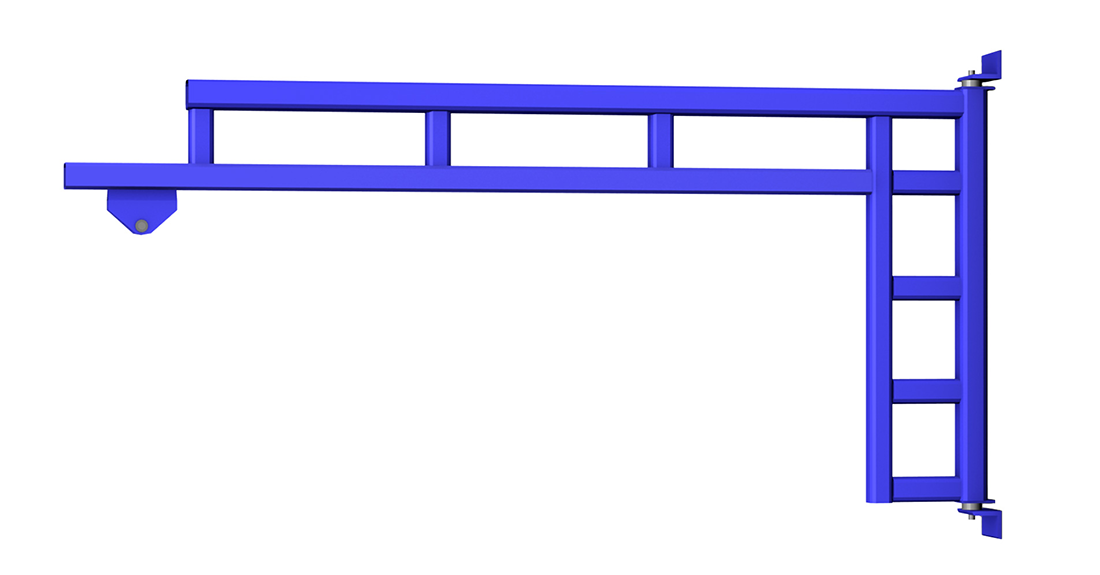

  • Boom assembly is designed to be mounted to a wall or column and comes with pivots at the top and bottom.
  • Designed to support tool balancers, air balancers, vacuum lifters, and hoists.
  • All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications.
  • All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of OriginMade in the USA
