LAC Crane Anti-Collision System, Lidar Sensor, 30 Meter Range (LAC-30) by Engineered Components Group

Features:

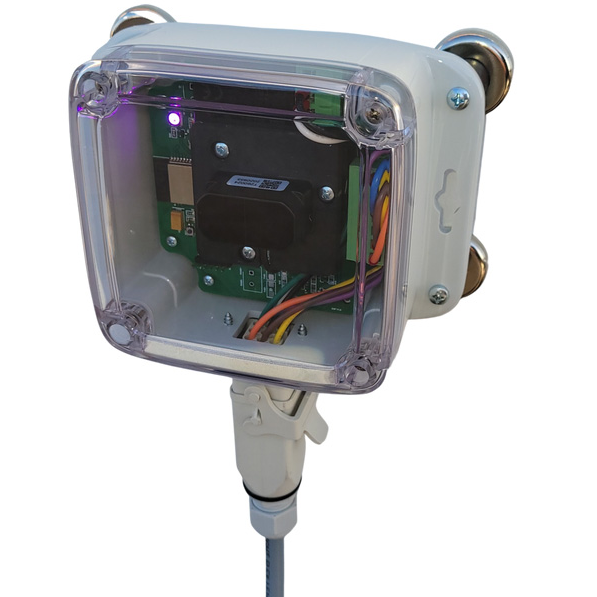

• Lidar sensor unit with 30-meter range
• Cable with connector for quick disconnect to sensor

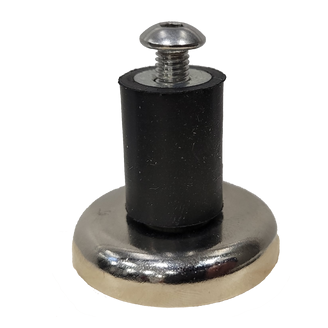

• Magnet mount kit (optional)
• Reflector-less operation: eliminates the need for reflective targets for detection
• Detects a wide range of objects, including crane girders, festoon loops, end truck walls, and electronic equipment
• Programmable slow down and stop limits from the floor via mobile device
• Two 240/120V relay outputs for slow down and stop functions
• One 120V input for bypass
• IP68-rated enclosure for dust and water resistance

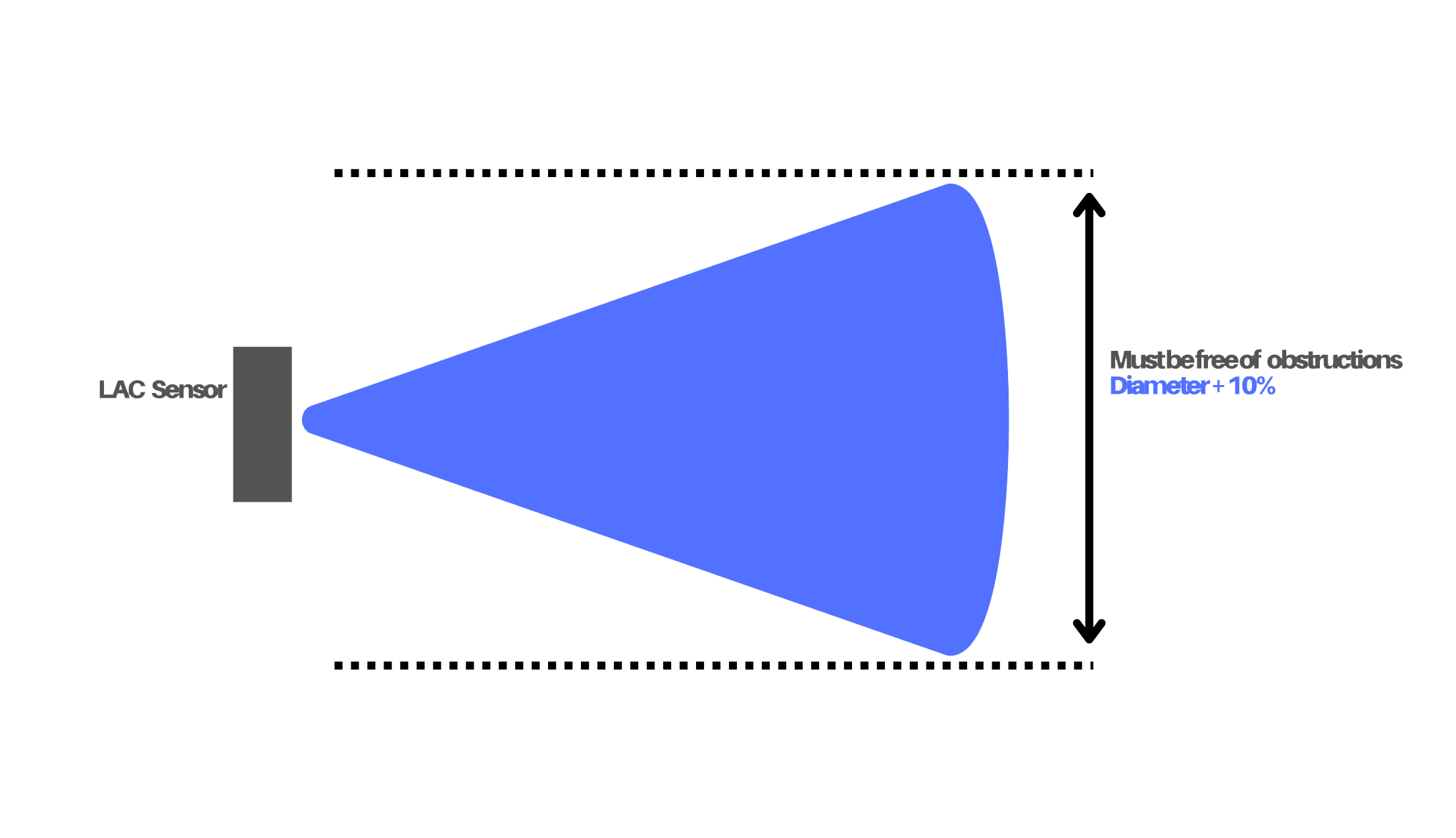

• 3-degree field of view
• Web app accessible via any Wi-Fi enabled mobile device for configuration and adjustments
• Adjustable bypass timer

Benefits:

• Improved safety for personnel and equipment by preventing collisions
• Increased productivity by reducing downtime from accidents
• Easy to install and set up – no need to mount or clean reflectors
• Configurable from the ground – no need to access the crane to make adjustments
• Versatile – wide range of object detection and multiple cable length options

Product Specifications:

• Sensor Range: 30 meters
• Enclosure Rating: IP68
• Field of View: 3°

Additional Information:

LAC cables are available in various lengths to suit your specific application needs. The cable length is indicated in the system part number. For more information on compatible cable lengths or other customization options, please contact Engineered Components Group.
