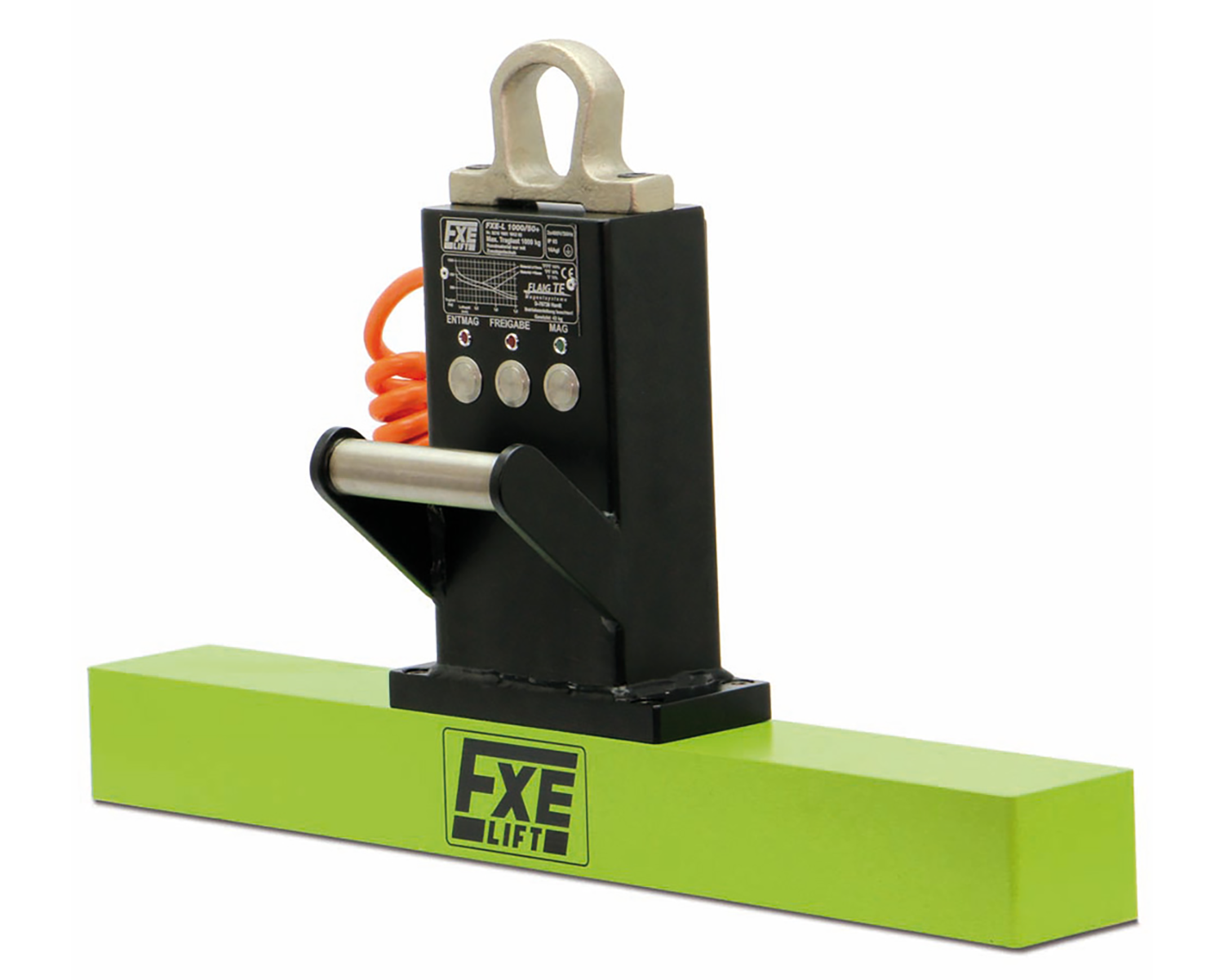

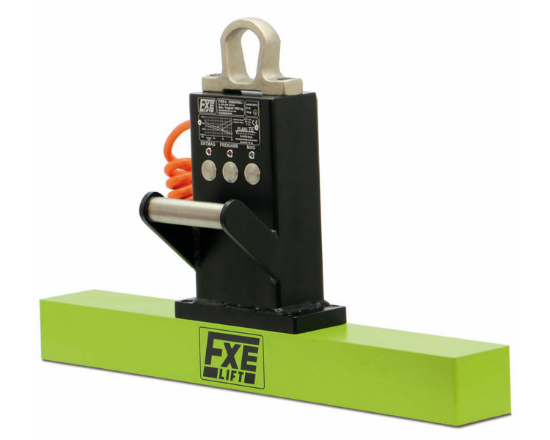

Mag-Mate FXE2200-50L Electro-Permanent Lifting Magnet, 2,200 lb Capacity, Actuated On/Off Control

The FXE 50L Series magnet is ideal for lifting long, narrow parts such as I-beams and C-channels. Its design allows for secure handling and easy orientation adjustments.
Availability: In stock
SKU: FXE2200-50L
Manufacturer part number: FXE2200-50L
Lead Time (subject to change, call to verify): typically ships in 7-10 business days
*
$10,085.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

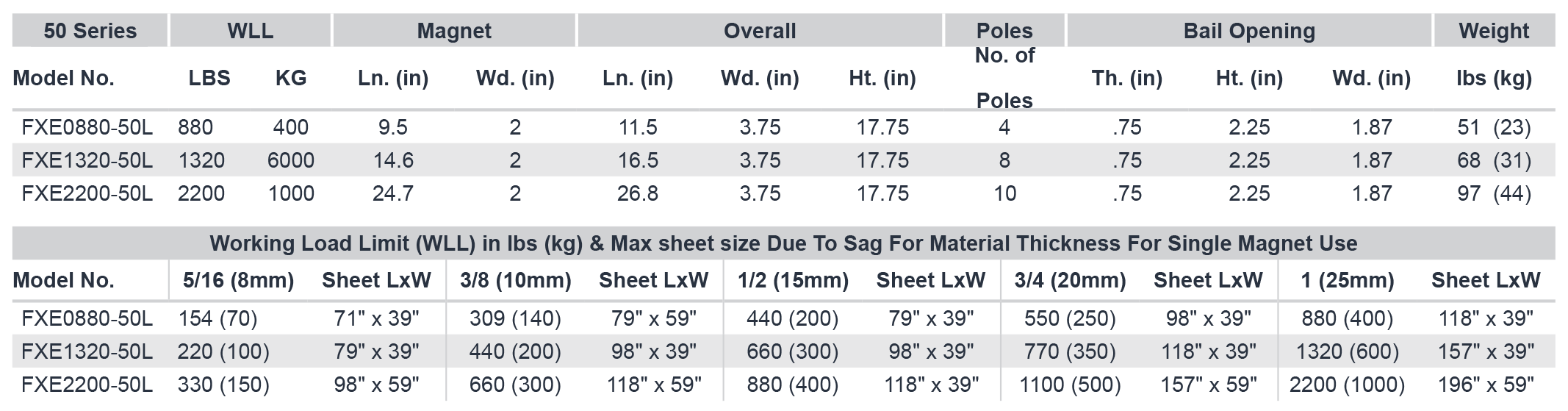

Products Specifications
Attribute nameAttribute value
Features
  • Model Number: FXE2200-50L
  • Working Load Limit: 2200 lb / 1000 kg
  • Overall Dimensions
    • Height: 17-3/4 in.
    • Width: 3-3/4 in.
    • Length: 26-3/4 in.
  • Magnet Dimensions
    • Width: 2 in.
    • Length: 24-11/16 in.
    • No. of Poles: 10
  • Bail Opening
    • Thickness: 3/4 in.
    • Height: 2-1/4 in.
    • Width: 1-7/8 in.
  • Weight: 97 lb.
Key Benefits
  • Smooth Surfaces:
    • Effectively lifts materials with smooth finishes.
  • Long Narrow Parts:
    • Tailored for handling elongated components.
  • C-Channel and I-Beam:
    • Perfect for lifting structural materials.
  • Square Tubing:
    • Versatile enough for various shapes and sizes.
Applications
  • Lifting
  • Manual and Hand Lifting
  • Below the Hook
  • Automated and Robotic Lifting
Industries
  • Fabrication and Welding
  • Equipment Manufacturing
  • Appliance Manufacturing
  • Furniture Manufacturing
  • Component Stamping
  • Welding
Warranty1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
