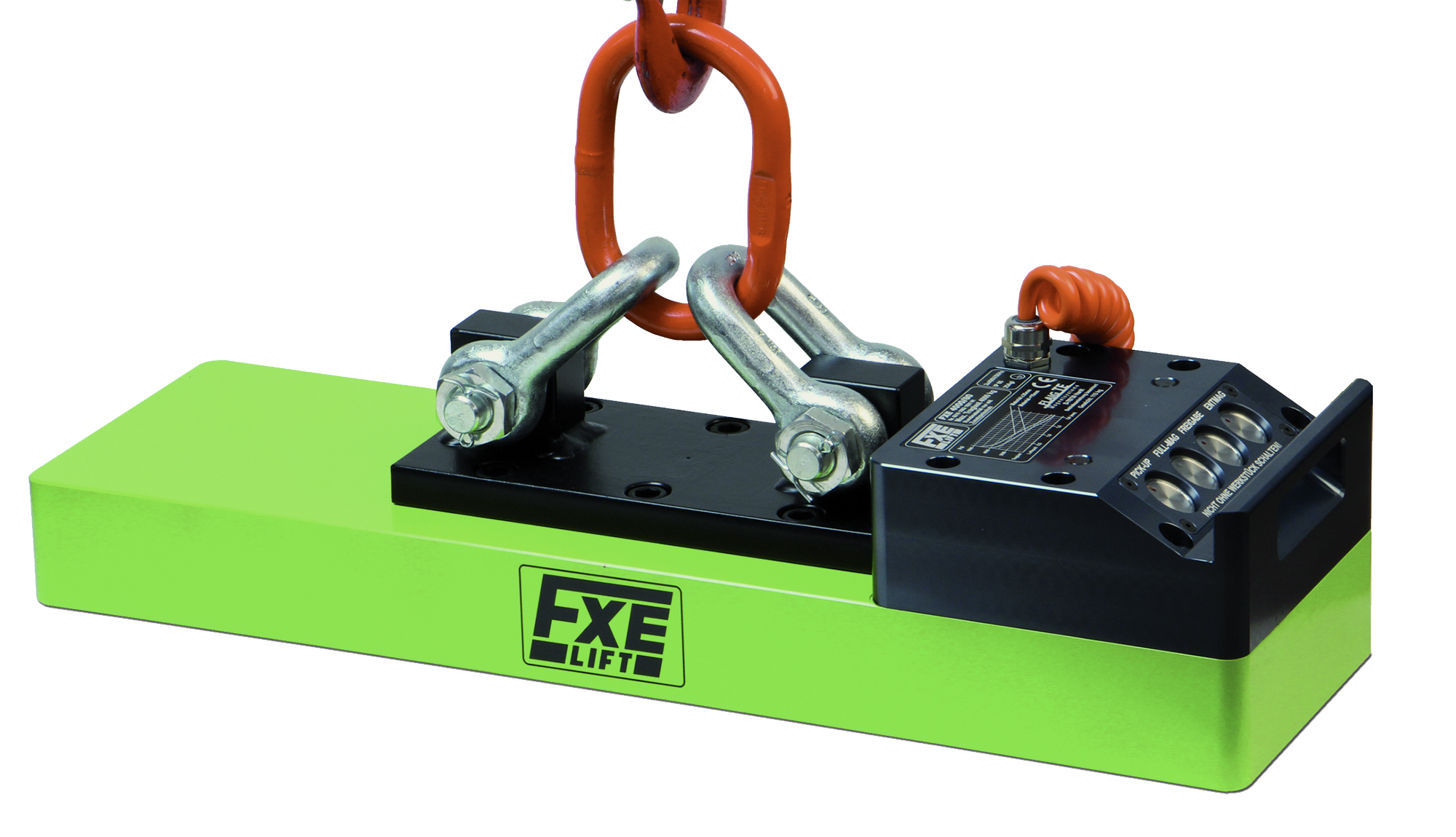

Mag-Mate FXE3525-100 Electro-Permanent Lifting Magnet, 3,525 lb Capacity, Actuated On/Off Control

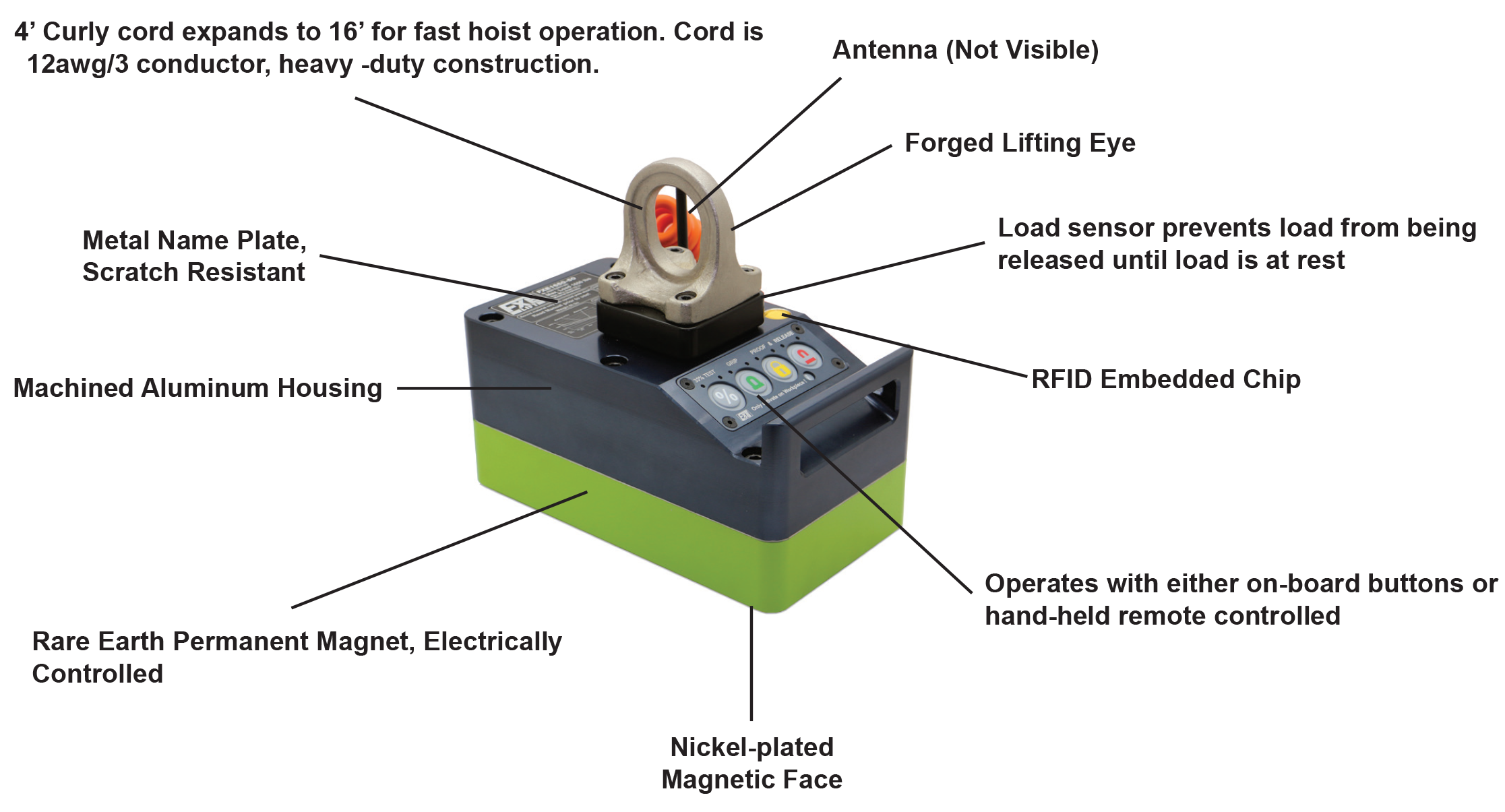

The FXE 100 Series magnet handles heavy, rough materials like castings and forgings with ease. It's built to provide stable lifts in challenging foundry and manufacturing applications.

Manufacturer: Industrial Magnetics, Inc.

Availability: In stock

SKU: FXE3525-100

Manufacturer part number: FXE3525-100

Lead Time (subject to change, call to verify): typically ships in 7-10 business days

Magnet On/Off Control *

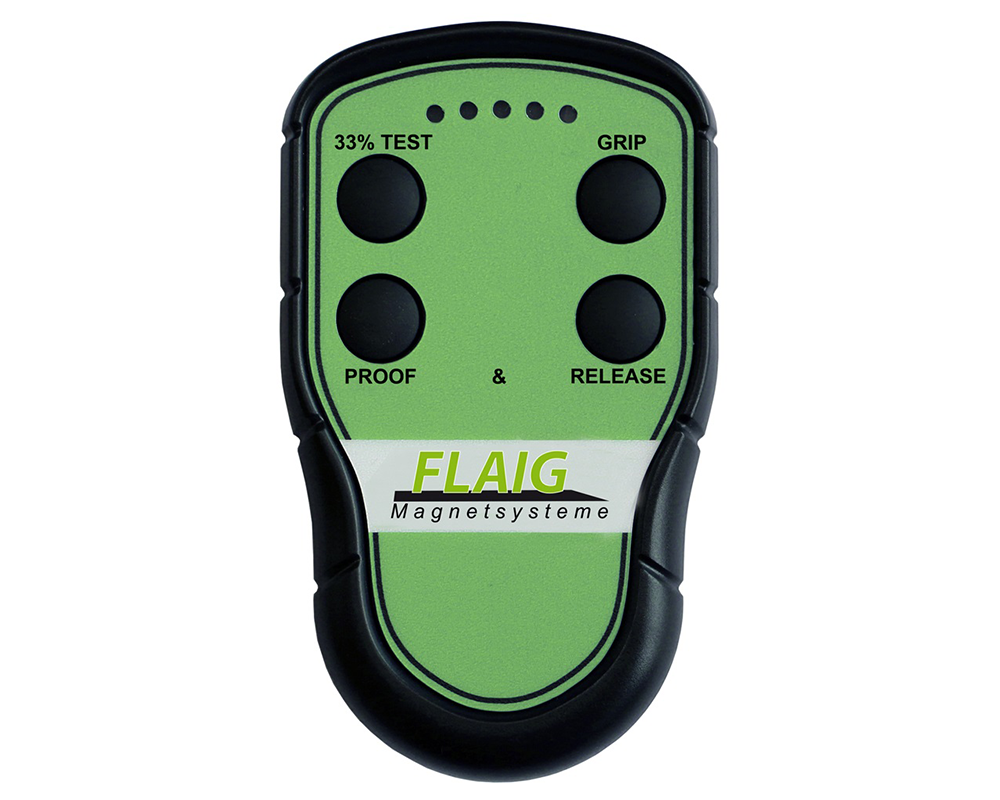

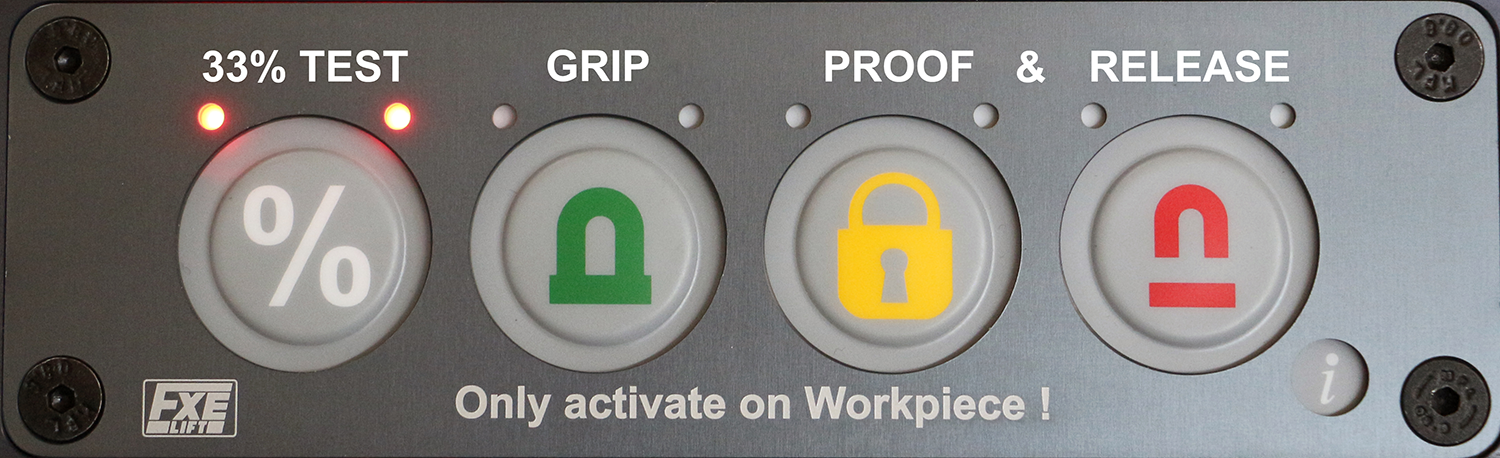

On-Board Buttons or Hand-Held Radio Remote

$9,508.00

Qty:

Documents, Drawings, and Manuals

Brochure

Mag-Mate FXE Series Electro-Permanent Lifting Magnet Brochure

Manual

Mag-Mate FXE Series Electro-Permanent Lifting Magnet Manual

Products Specifications

Attribute name	Attribute value

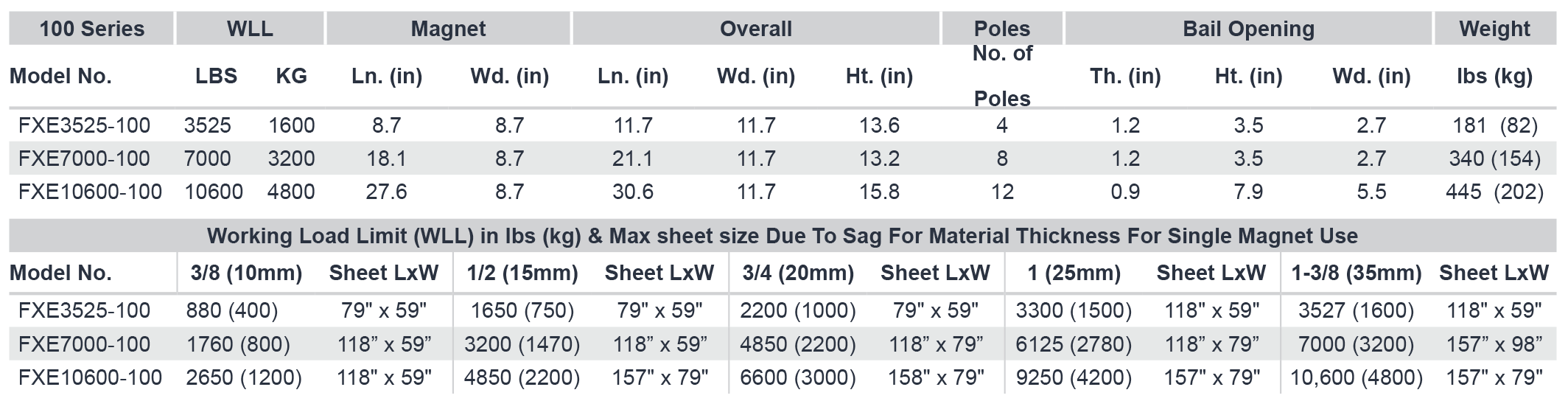

Features	Model Number: FXE3525-100 Working Load Limit: 3525 lb / 1600 kg Overall Dimensions Height: 13-5/8 in. Width: 11-11/16 in. Length: 11-11/16 in. Magnet Dimensions Width: 8-11/16 in. Length: 8-11/16 in. No. of Poles: 4 Bail Opening Thickness: 1-1/8 in. Height: 3-7/16 in. Width: 2-11/16 in. Weight: 181 lb.
Key Benefits	Rough Surfaces: Effectively lifts materials with uneven finishes. Casting and Forging: Ideal for handling heavy foundry products. Slabs: Perfect for lifting large steel slabs securely. Thick, Heavy, Large Metals: Engineered to manage substantial metal loads with ease.
Applications	Lifting Manual and Hand Lifting Below the Hook Automated and Robotic Lifting
Industries	Fabrication and Welding Equipment Manufacturing Appliance Manufacturing Furniture Manufacturing Component Stamping Welding
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
