FXE3525-50 Electro-Permanent Lifting Magnet

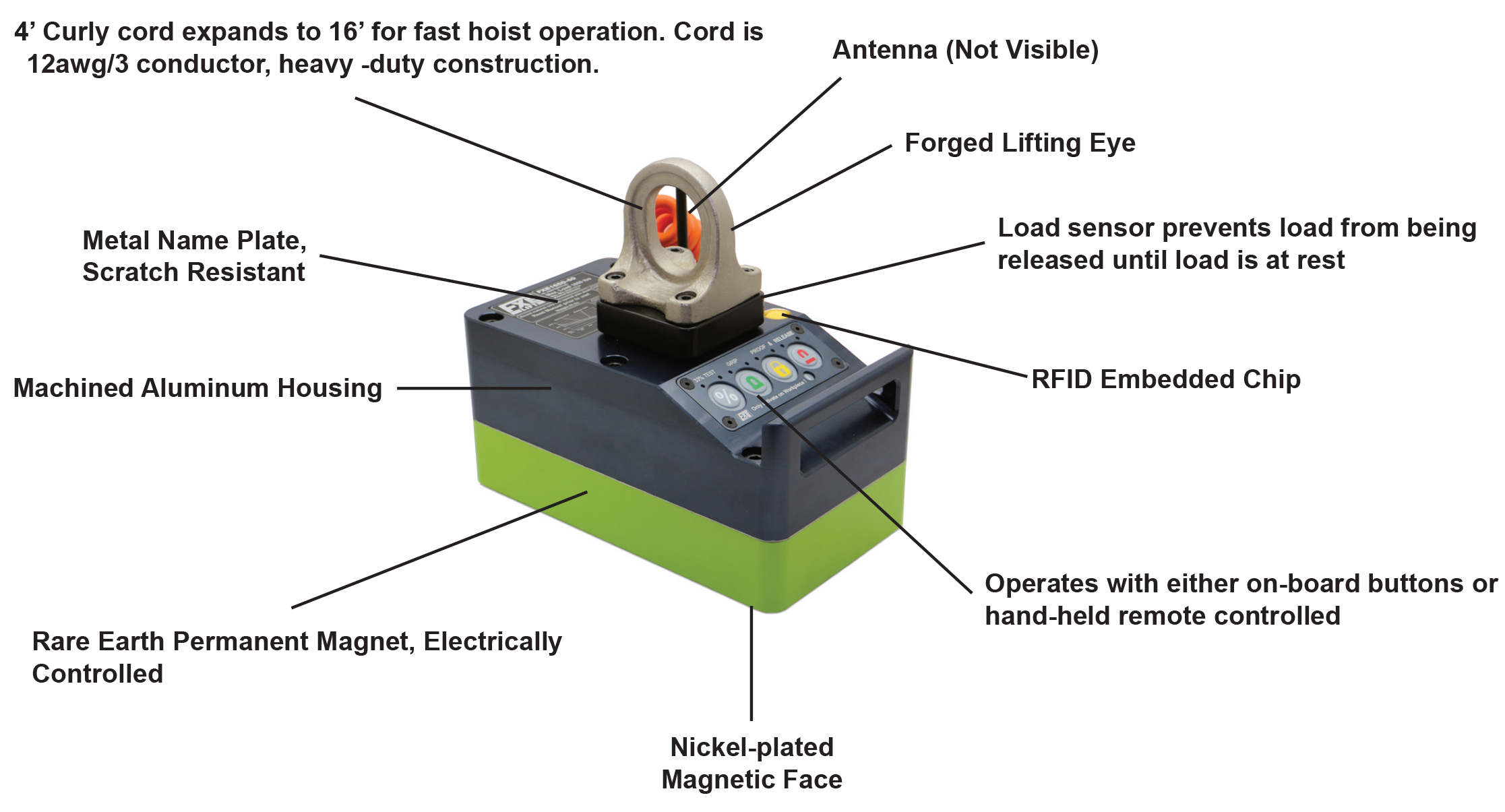

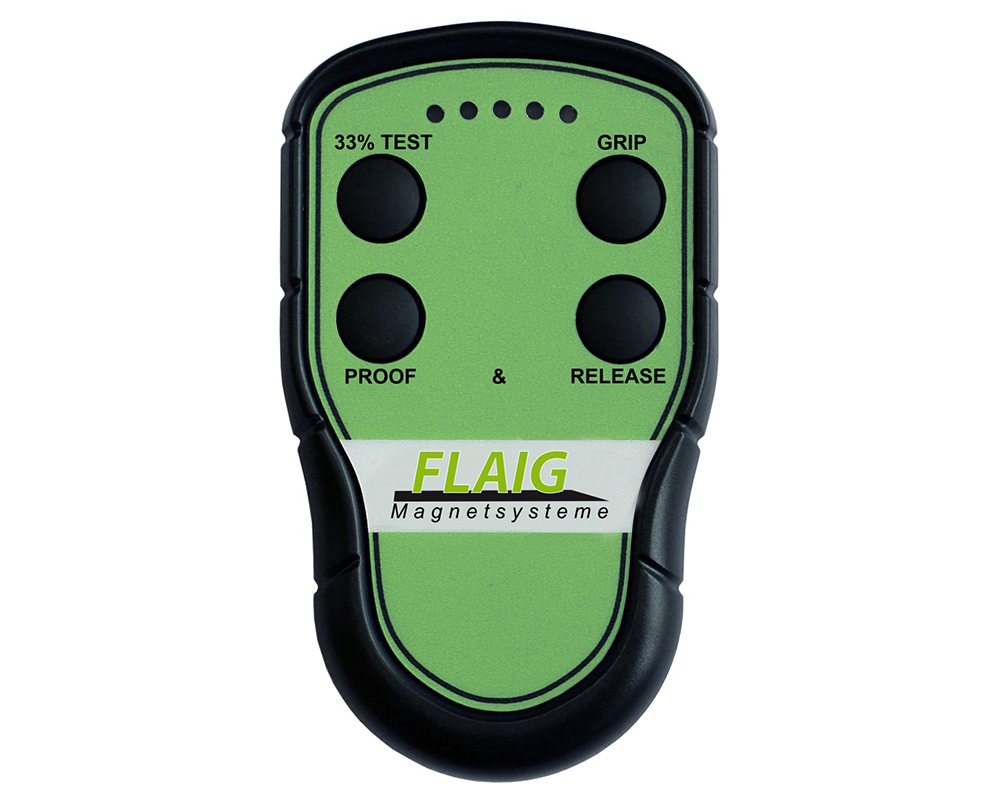

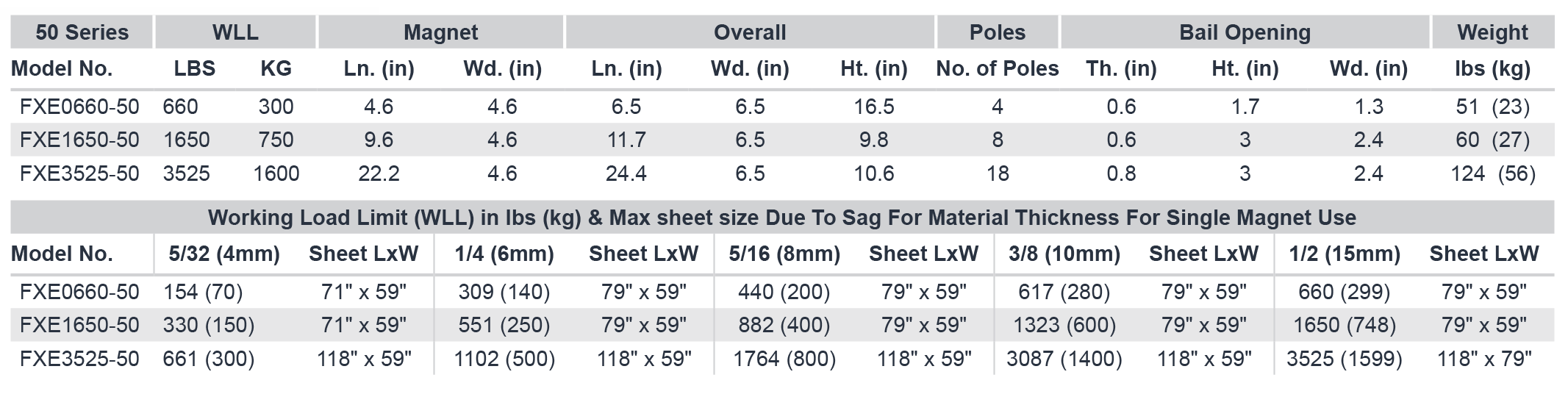

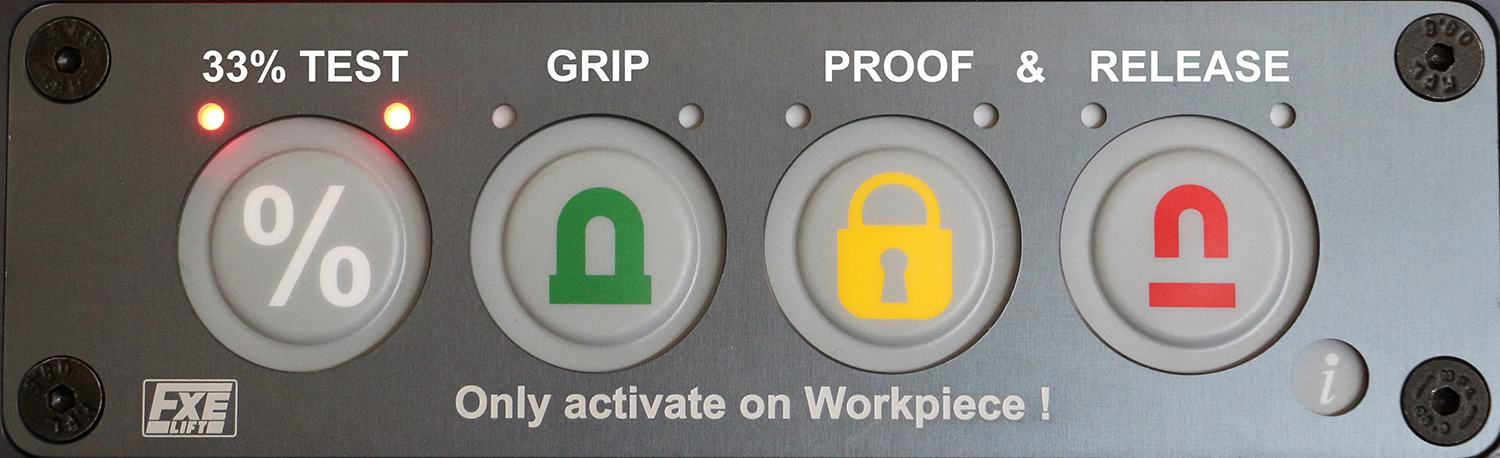

FXE3525-50 Electro-Permanent Lifting Magnet Hand-Held Radio Remote Control FXE Control Panel FXE Electro-Permanent Lifting Magnet Diagram FXE 50 Series Product Specifications

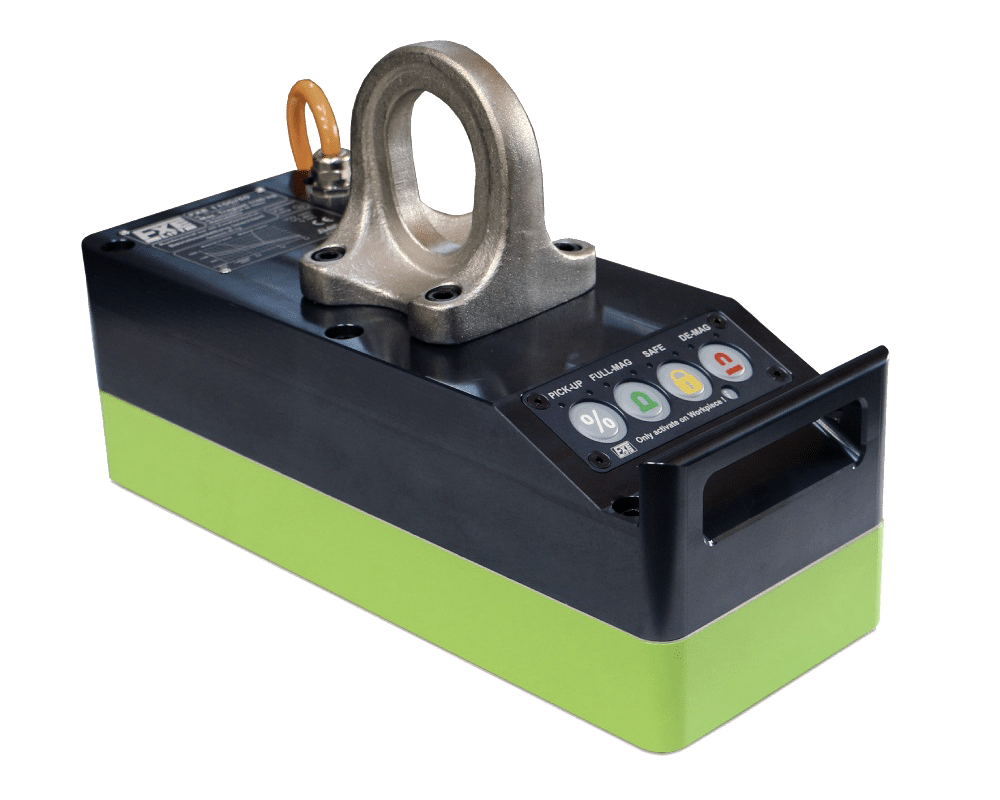

Mag-Mate FXE3525-50 Electro-Permanent Lifting Magnet, 3,525 lb Capacity, Actuated On/Off Control

The FXE 50 Series is optimized for lifting thin, smooth materials, especially in cutting table applications. It's perfect for repetitive, precise lifting tasks in industrial settings.
Manufacturer: Industrial Magnetics, Inc.
Availability: In stock
SKU: FXE3525-50
Manufacturer part number: FXE3525-50
Lead Time (subject to change, call to verify): typically ships in 7-10 business days
*
$7,010.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals

Brochure

Mag-Mate FXE Series Electro-Permanent Lifting Magnet Brochure

Mag-Mate FXE Series Electro-Permanent Lifting Magnet Brochure

Manual

Mag-Mate FXE Series Electro-Permanent Lifting Magnet Manual

Mag-Mate FXE Series Electro-Permanent Lifting Magnet Manual

Products Specifications
Attribute nameAttribute value
Features
  • Model Number: FXE3525-50
  • Working Load Limit: 3525 lb / 1600 kg
  • Overall Dimensions
    • Height: 10-5/8 in.
    • Width: 6-1/2 in.
    • Length: 24-3/8 in.
  • Magnet Dimensions
    • Width: 4-5/8 in.
    • Length: 22-3/16 in.
    • No. of Poles: 18
  • Bail Opening
    • Thickness: 3/4 in.
    • Height: 3 in.
    • Width: 2-3/8 in.
  • Weight: 124 lb.
Key Benefits
  • Smooth Surfaces:
    • Effectively lifts materials with smooth finishes.
  • Smaller Parts:
    • Ideal for handling small components.
  • Cutting Table Loading/Unloading:
    • Streamlines operations on cutting tables.
  • Thinner Metals:
    • Specifically designed for lifting thinner metal sheets.
  • Push button controls:
    • Ideal in fast cycle applications that require operators to grip and release parts quickly.
  • Compliance Standard(s):
    • 2018 ASME B30.20 BTH-1 Design Category B, Service Class 3
Applications
  • Lifting
  • Manual and Hand Lifting
  • Below the Hook
  • Automated and Robotic Lifting
Industries
  • Fabrication and Welding
  • Equipment Manufacturing
  • Appliance Manufacturing
  • Furniture Manufacturing
  • Component Stamping
  • Welding
Warranty1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
