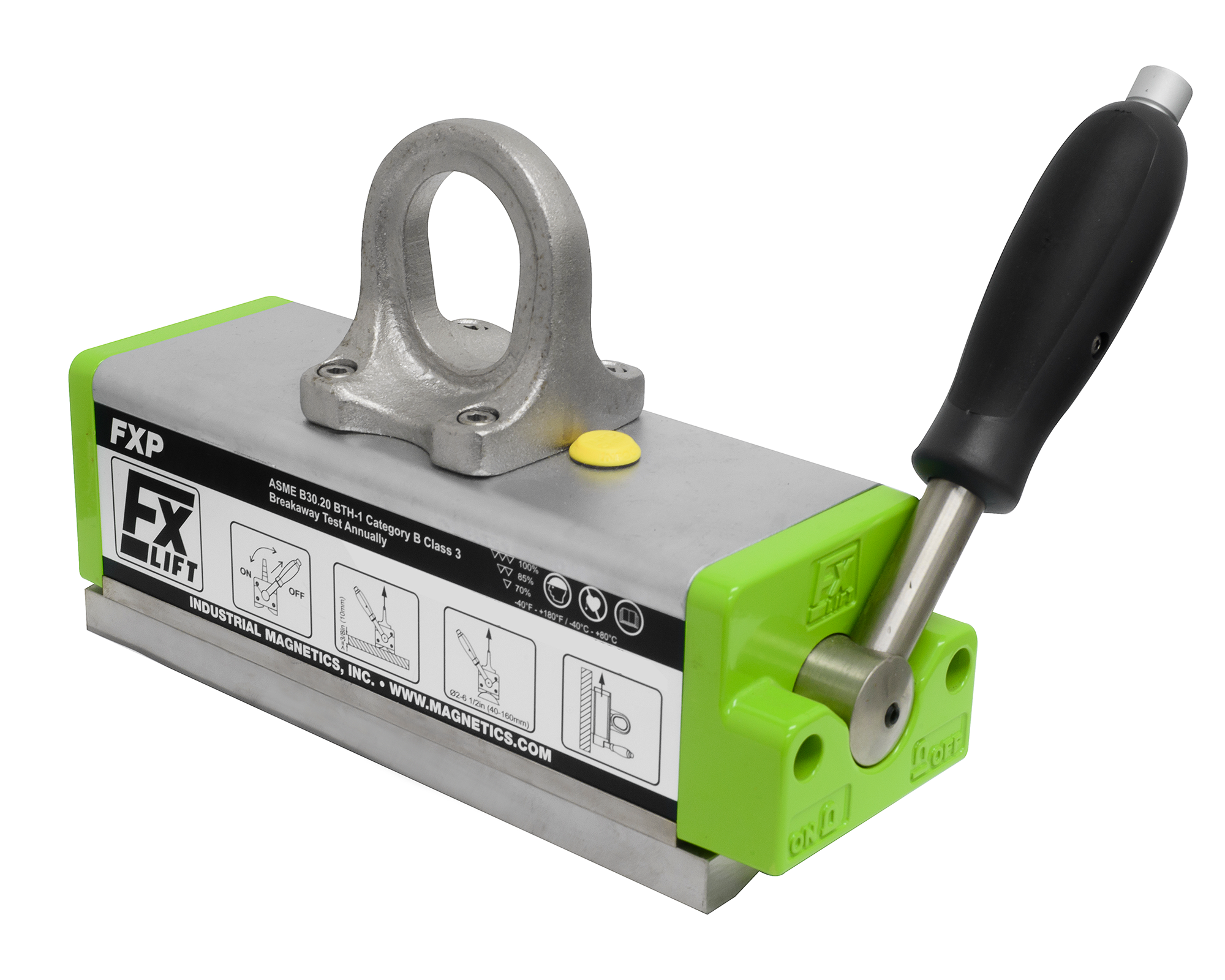

Mag-Mate FXP1450 Thin Sheet & Pipe Permanent Lifting Magnet, 1,450 lb Capacity, Manual On/Off Control

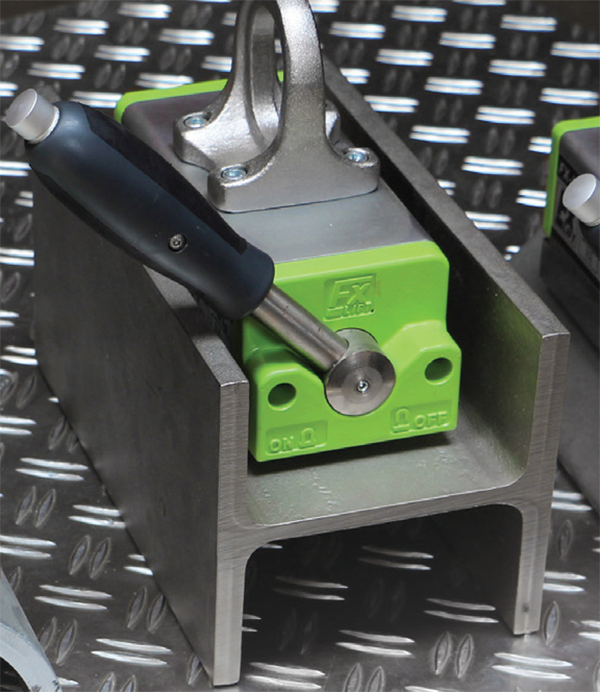

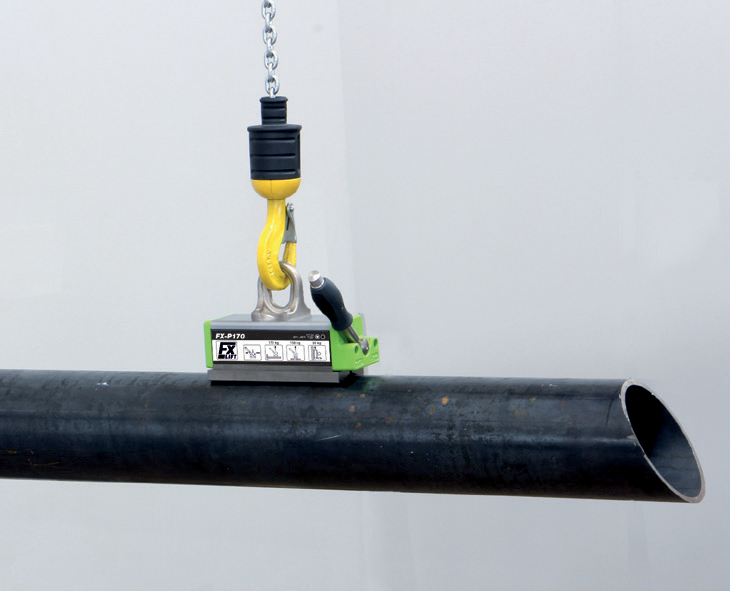

The FXP Thin Sheet & Pipe Lifting Magnet excels in handling thin sheets and tanks, providing secure lifts without surface damage. It's perfect for applications requiring precise, concentrated magnetic force.

Manufacturer: Industrial Magnetics, Inc.

Availability: In stock

SKU: FXP1450

Manufacturer part number: FXP1450

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Magnet On/Off Control *

9 in. Manual Cam Lever

$1,603.00

Qty:

Documents, Drawings, and Manuals

Brochure

Mag-Mate FX Series Permanent Lifting Magnet Brochure

Manual

Mag-Mate FX Series Permanent Lifting Magnet Manual

Diagram

Mag-Mate FX Series Permanent Lifting Magnet Diagram

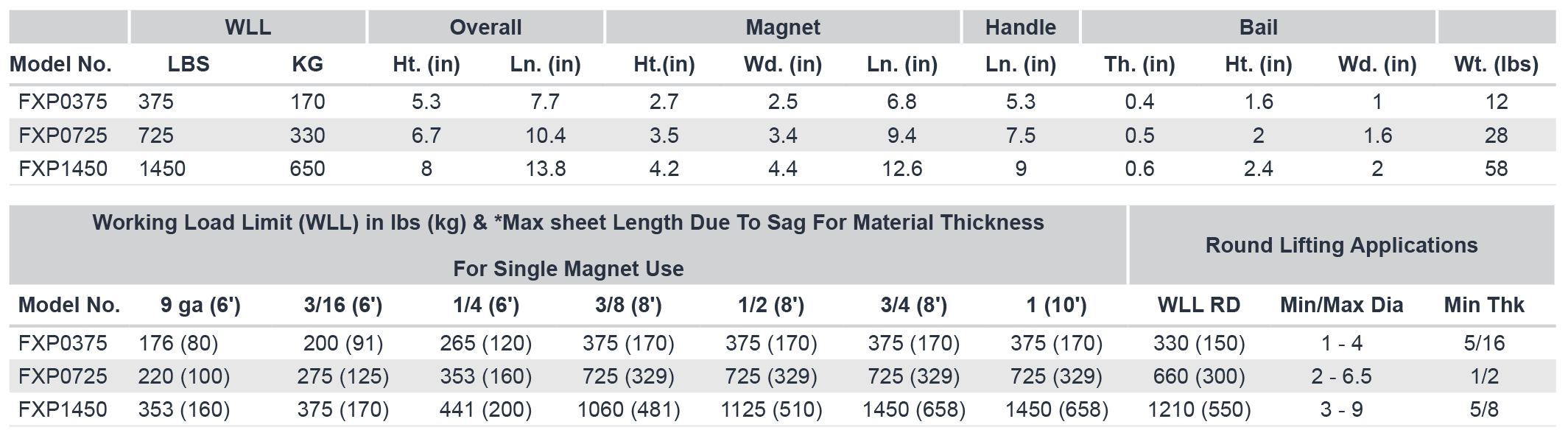

Products Specifications

Attribute name	Attribute value
Features	Model Number: FXP1450 Working Load Limit: 1450 lb / 650 kg Working Load Limit (Round-Horizontal): 1210 lb / 550 kg Overall Dimensions Height: 8 in. Width: 3-7/16 in. Length: 13-23/32 in. Handle Length: 9 in. Magnet Dimensions Height: 4-1/4 in. Width: 4-13/32 in. Length: 12-19/32 in. No. of Poles: 2 Bail Opening Thickness: 5/8 in. Height: 2-7/16 in. Width: 2 in. Weight: 58 lb.
Key Benefits	On/Off Rare Earth Permanent Magnet: Easily switch between magnetic states. User-Friendly Handle: Requires only a 90° rotation to operate, locking securely in both on and off positions. Durable Design: Features recessed metal nameplates, eliminating the risk of peeling stickers. Corrosion-Resistant: Plated-magnet surface provides enhanced durability. Heat Resistance: Capable of withstanding temperatures up to 180°F (82°C). Robust Design Factor: Built with a 3:1 design factor for added safety. Compliance Standards: Meets the 2018 ASME B30.20 BTH-1 Design Category B, Service Class 3 requirements.
Applications	Lifting Manual and Hand Lifting Below the Hook Automated and Robotic Lifting
Industries	Fabrication and Welding Appliance Manufacturing Equipment Manufacturing Furniture Manufacturing Component Stamping Welding
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
