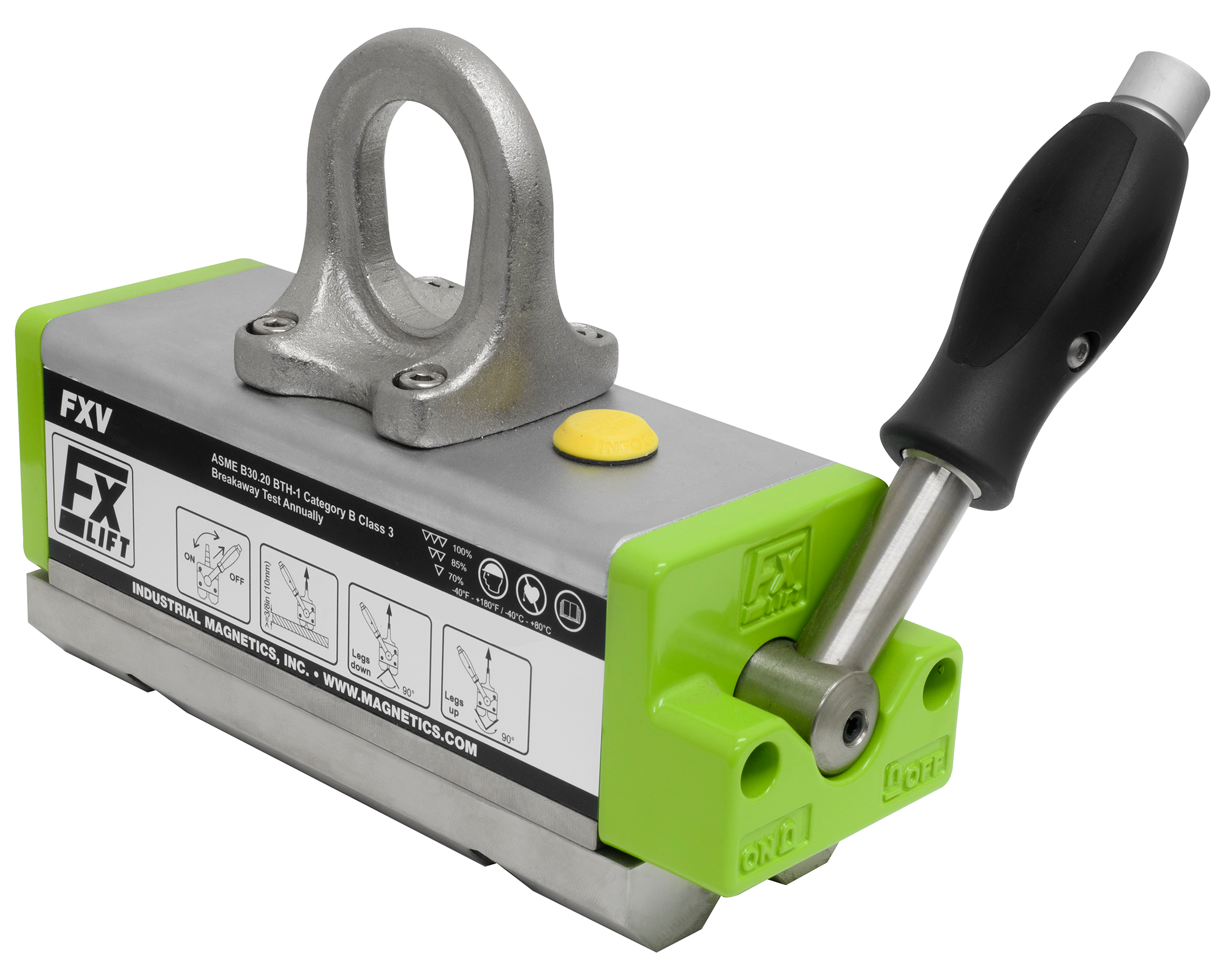

Mag-Mate FXV1775 Angle Steel Permanent Lifting Magnet, 1,775 lb Capacity, Manual On/Off Control

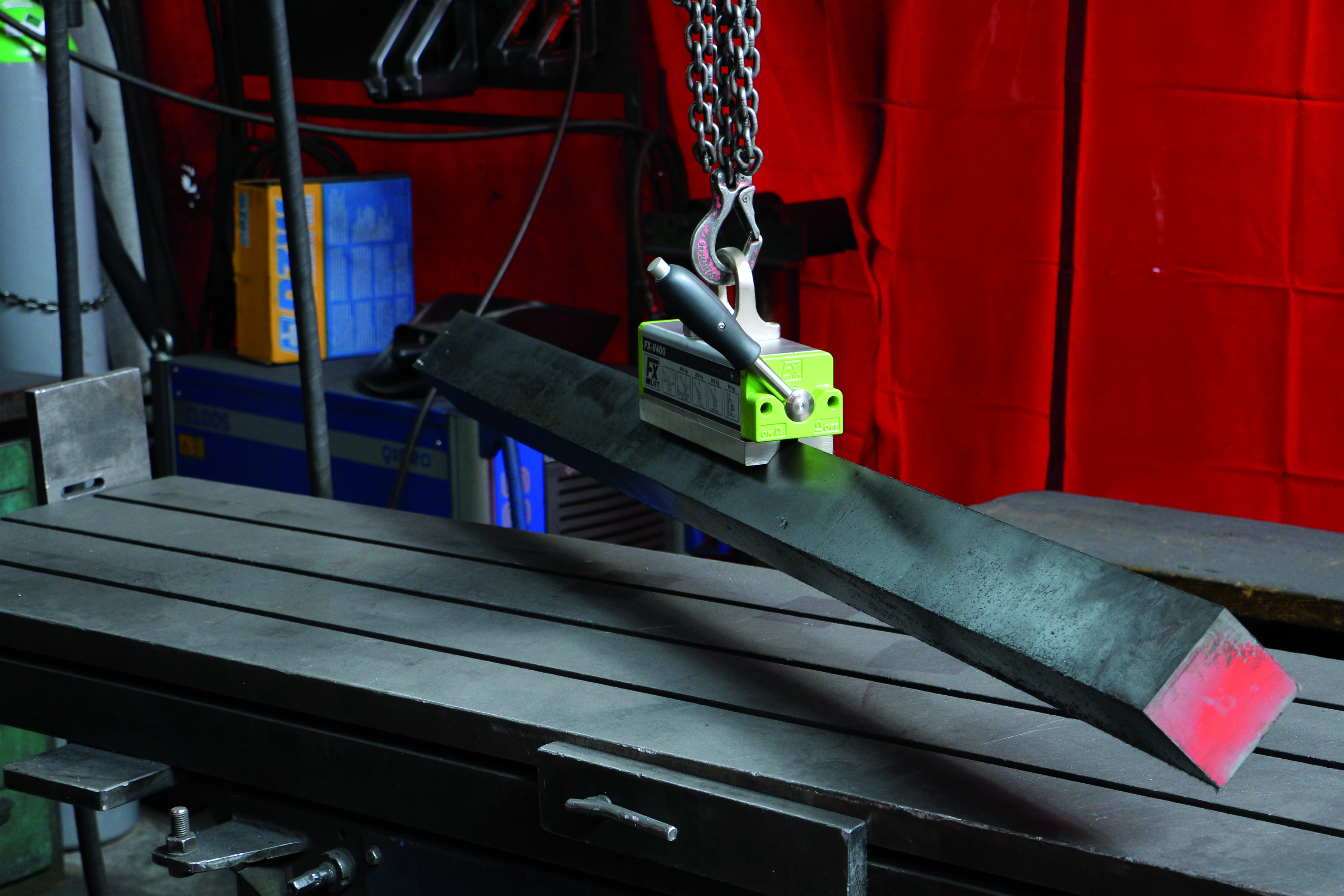

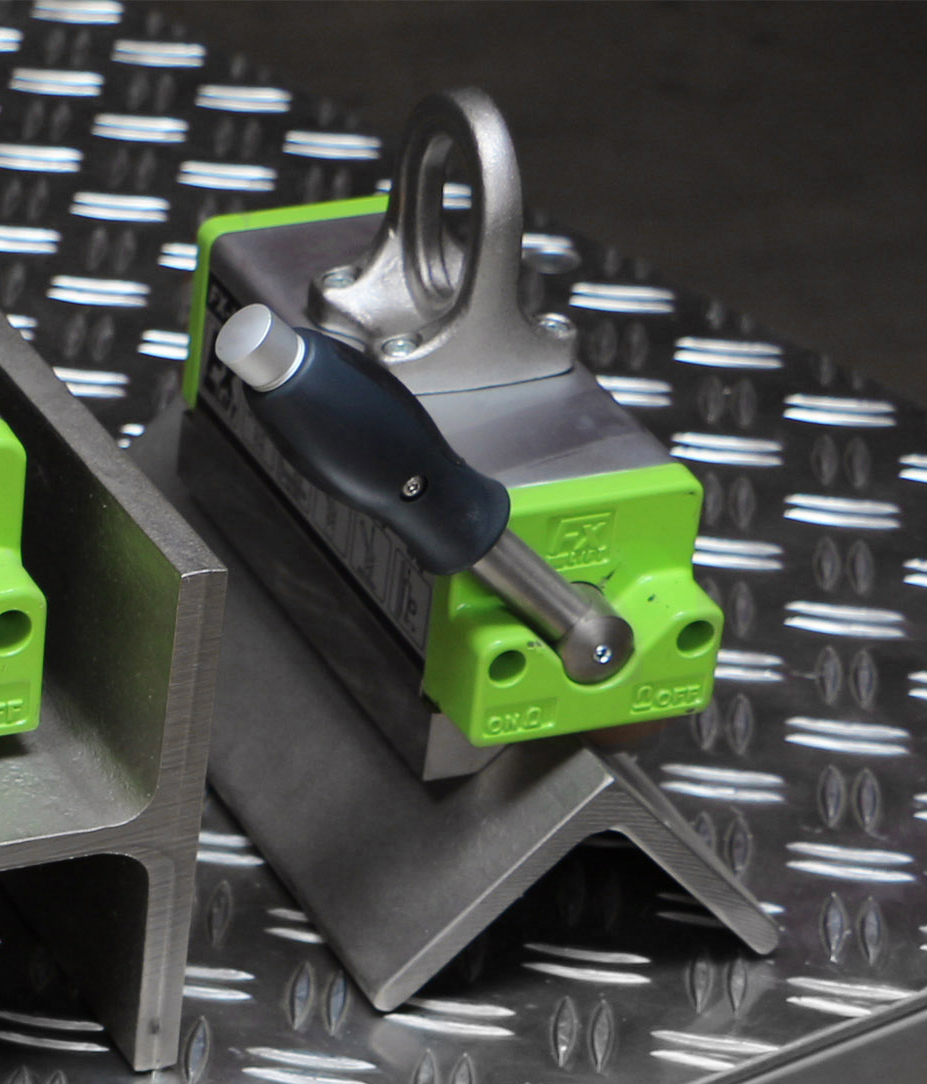

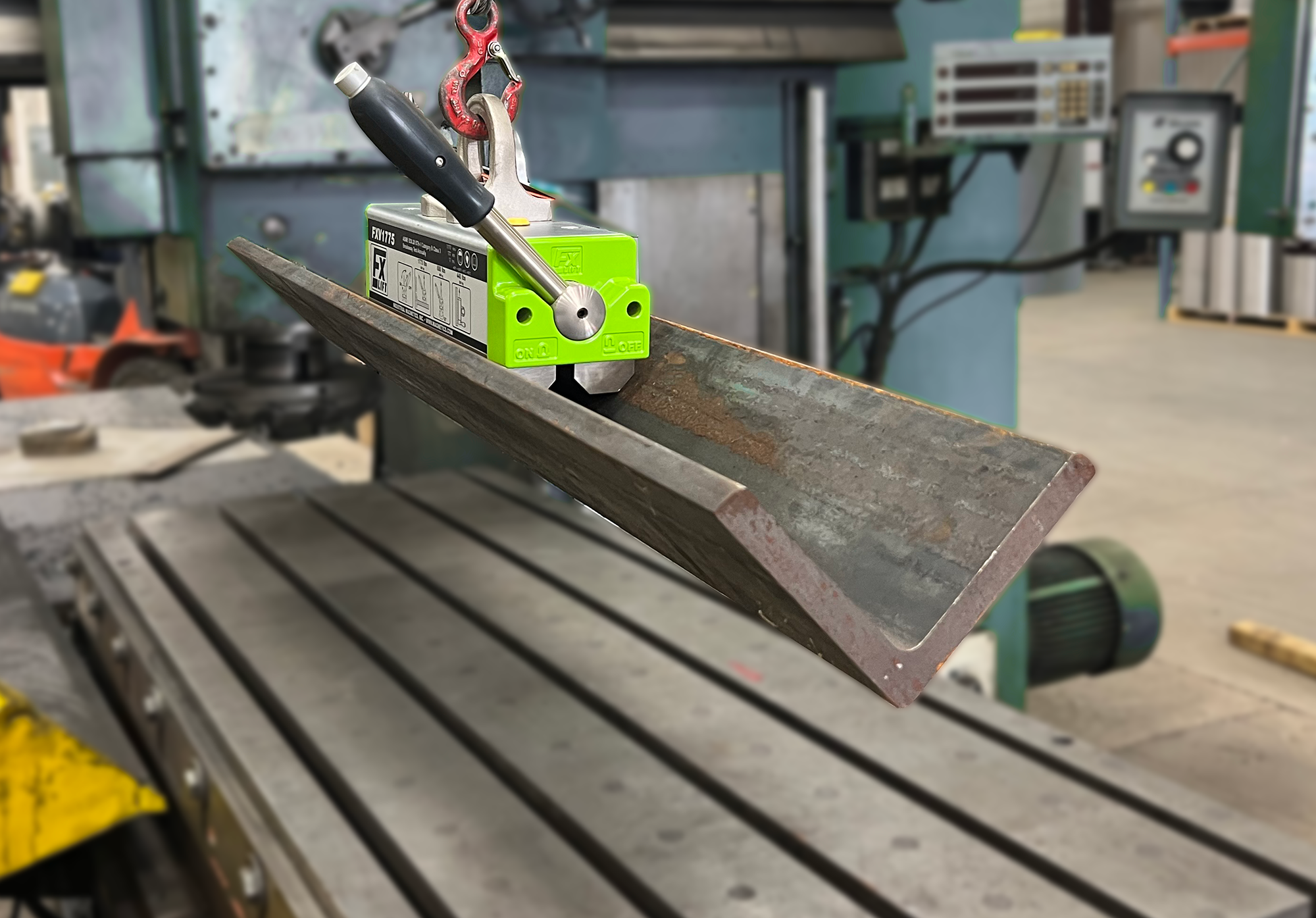

The FXV Angle Steel Lift Magnet offers efficient lifting for 90-degree shapes, including angle iron and square tubing. Its design is ideal for secure handling in structural applications.

Manufacturer: Industrial Magnetics, Inc.

Availability: In stock

SKU: FXV1775

Manufacturer part number: FXV1775

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Magnet On/Off Control *

9 in. Manual Cam Lever

$1,635.00

Qty:

Documents, Drawings, and Manuals

Brochure

Mag-Mate FX Series Permanent Lifting Magnet Brochure

Manual

Mag-Mate FX Series Permanent Lifting Magnet Manual

Diagram

Mag-Mate FX Series Permanent Lifting Magnet Diagram

Products Specifications

Attribute name	Attribute value

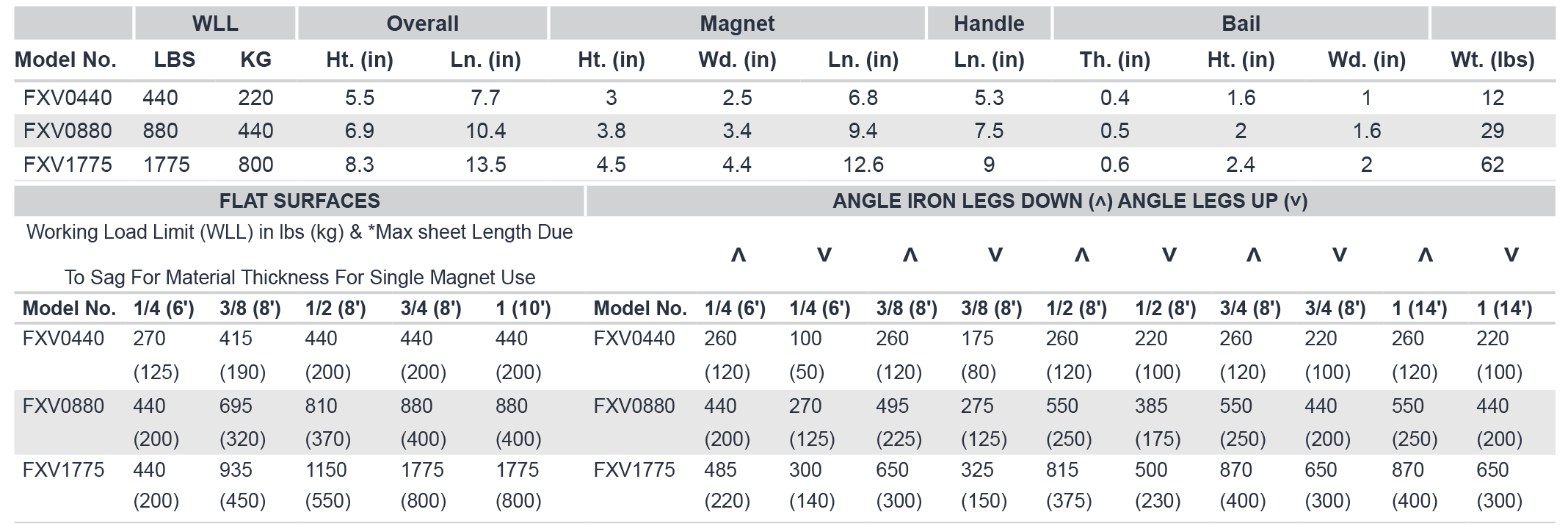

Features	Model Number: FXV1775 Working Load Limit: 1775 lb / 805 kg Overall Dimensions Height: 8-9/32 in. Width: 4-13/32 in. Length: 13-27/32 in. Handle Length: 9 in. Magnet Dimensions Height: 4-1/2 in. Width: 4-13/32 in. Length: 12-19/32 in. No. of Poles: 2 Bail Opening Thickness: 5/8 in. Height: 2-7/16 in. Width: 1-15/16 in. Weight: 62 lb.

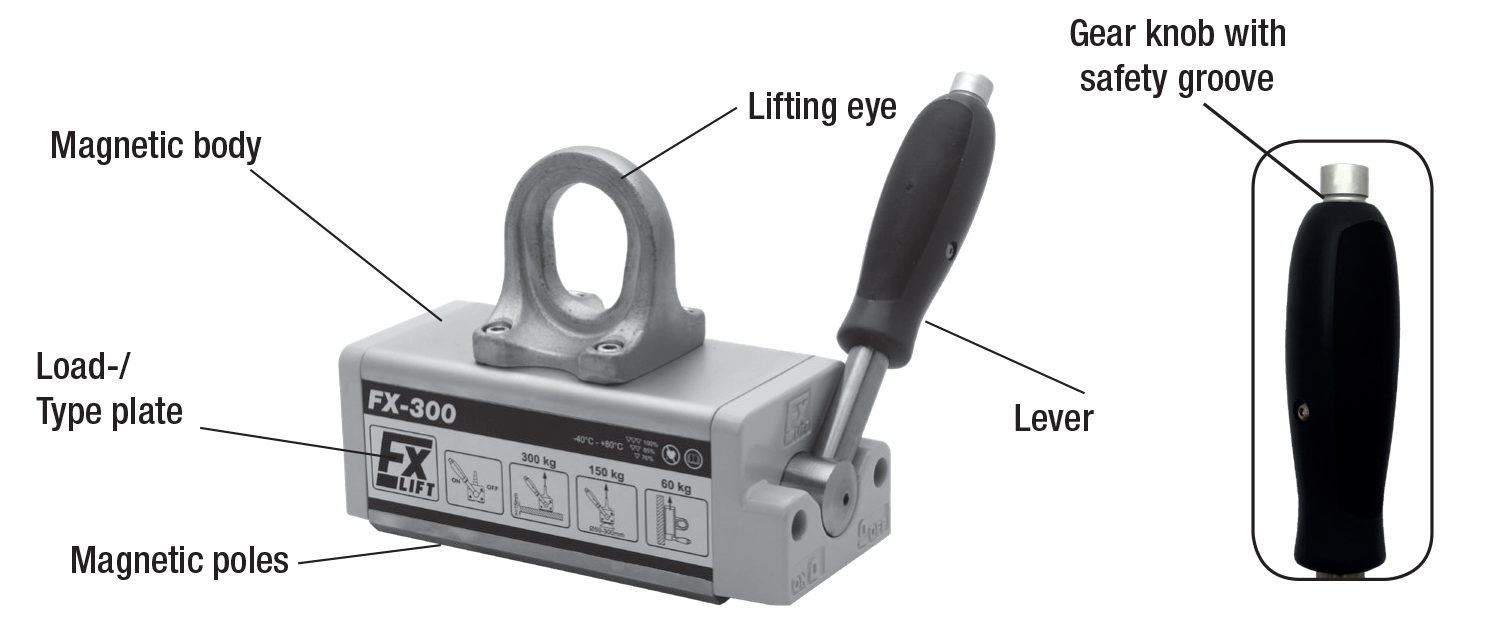

Key Benefits	Versatile Performance: The FXV Series is particularly effective for the inside webbing of I-beams, where higher handle rotation is necessary. User-Friendly Handle: Requires only a 90° rotation to operate, locking securely in both on and off positions. Durable Construction: Features recessed metal nameplates to prevent damage from stickers, ensuring longevity. Corrosion-Resistant: Plated magnet surface enhances durability in tough environments. Robust Design Factor: Built with a 3:1 design factor, providing an additional layer of safety. Compliance Standards: Meets the 2018 ASME B30.20 BTH-1 Design Category B, Service Class 3 requirements.
Applications	Lifting Manual and Hand Lifting Below the Hook Automated and Robotic Lifting
Industries	Fabrication and Welding Appliance Manufacturing Equipment Manufacturing Furniture Manufacturing Component Stamping Welding
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
