Magnetek Flex 8EX2 Radio Control System, Two Speed, Part No: FLEX-8EX2

Manufacturer: Magnetek
Manufacturer part number: FLEX-8EX2
Lead Time: typically ships in 2-3 business days
Products specifications
  • System Applications: Ideal for use in material handling, overhead crane, mobile hydraulic and industrial applications.

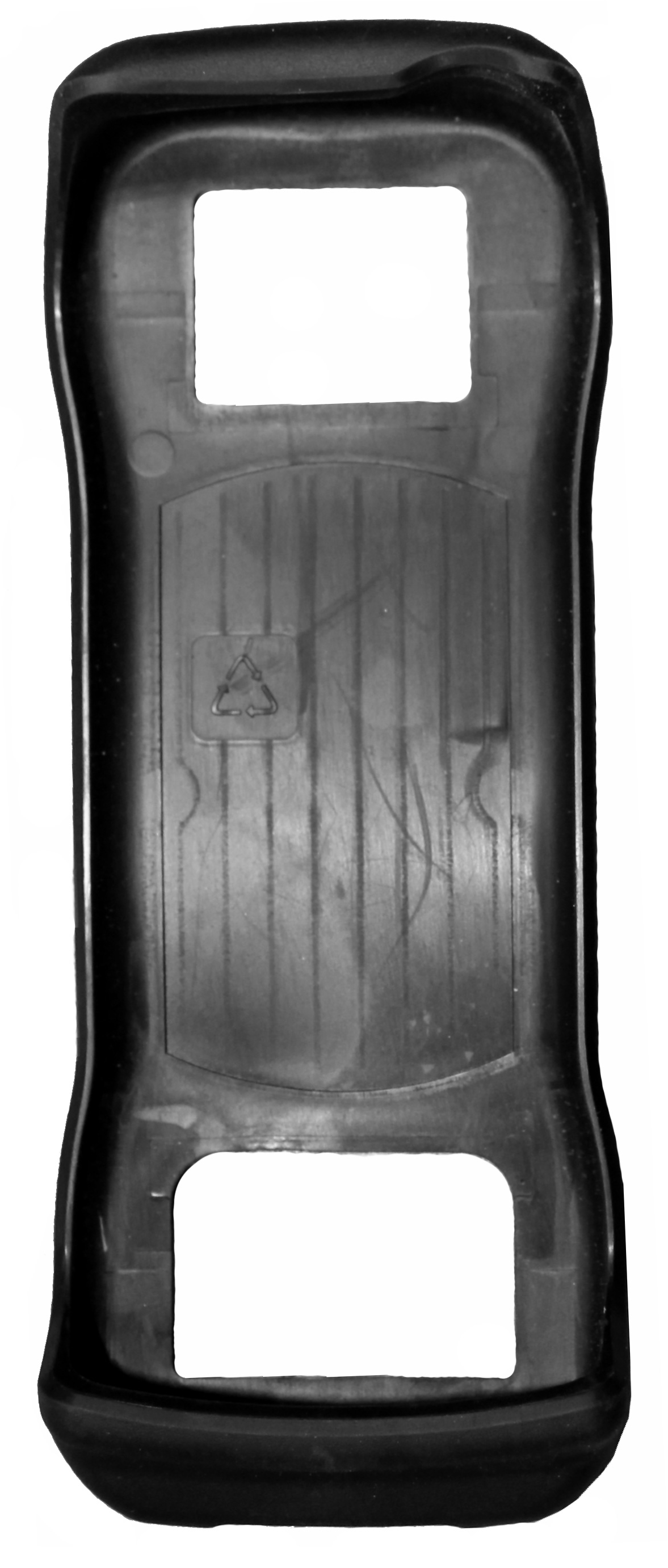

  • System Includes: 2 (two) Flex transmitters with eight 2-speed pushbuttons (4-motion/2-speed, E-stop, and Off/On/Start), 1 (one) Flex receiver, TX label sheets, waist belt, vinyl TX covers, pre-wired output cable, and "AA" batteries, key switch, and necessary mounting hardware.
  • System Model No.: FLEX-8EX2-01-2T (Replaces Older Generation - Model No. 0-FLEX-8EX)
  • Frequency Range: 433MHz~434MHz.
  • Frequency Deviation: 12.5 KHz
  • Number of Channels: 62 channels
  • Modulation: Digital frequency modulation based on Manchester Code, 20bit address, and 32bit CRC Parity Check and Hamming Code
  • Encoding / Decoding Reference: Microprocessor-controlled
  • Transmitting Operating Range: >100 Meters / 328 Feet
  • Frequency Control: Synthesized PLL (Phase Lock Loop)
  • Receiver Type: Frequency Auto Scanning
  • Antenna Impedance: 50 ohms
  • Responding Time: 60 Milliseconds (average)
  • Transmitting Power: 1.0mW
  • Receiver Sensitivity: -116dBm
  • Transmitter Operating Voltage: 3.0VDC
  • Transmitter Power Consumption: 5~22mA
  • Output Contact Rating: 250VAC @ 8A
  • Receiver Supply Voltage Options:
    • 110~120VAC @ 50/60Hz (standard)
    • 24/48VAC @ 50/60Hz (optional)
    • 9~36VDC (optional)
  • Receiver Power Consumption: 11.0 VA
  • Enclosure Rating: IP-66
  • Enclosure Type: NEMA-4X
  • Operating Temperature: -25°C ~ 75°C / -13°F ~ 167°F
  • Transmitter Dimension: 7.24in (L) x 2.71in (W) x 1.33in (H) / 184mm (L) x 69mm (W) x 34mm (H)
  • Receiver Dimension: 14.29in (L) x 8.97in (W) x 2.75in (H) / 363mm (L) x 228mm (W) x 70mm (H)
  • Transmitter Weights: 242g / 8.5oz
  • Receiver Weights: 2.5kg / 5.5lb (includes output cable)
  • Two "AA" alkaline batteries provide more than 100 hours of operation.
  • Unique I-CHIP design allows information and settings to be transferred between transmitters
  • Ergonomically designed to be compact and lightweight to prevent operator fatigue
  • Equipped with more than 200 programmable functions to suit all types of applications
  • Reliable pushbuttons feature gold-plated contacts and are rated for more than one million press cycles. The defined snap-action steps provide positive tactile feedback even while wearing gloves
  • Easy one-handed operation
  • Enclosures are made from industrial-strength nylon and fiberglass composite materials for extra durability
  • Each Flex EX system has over one million unique identification codes (20 Bit) and never repeats
  • Advanced microprocessor controls with 32 bit CRC and Hamming Code provide ultra-fast, safe, precise and error-free encoding and decoding
Warranty1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
