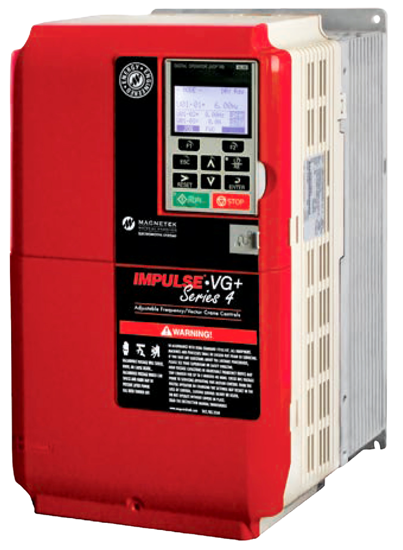

Magnetek IMPULSE VG+ Series 4, VFD, 22FLA, 20HP, 575VAC, Part No. 5022-VG+S4

Manufacturer: Magnetek
SKU: 5022-VG+S4
Manufacturer part number: 5022-VG+S4
Lead Time: typically ships in 3-5 business days
Products specifications
  • Voltage: 575 VAC (3-phase)
  • Max. Motor FLA: 22 Amps (confirm actual motor full load amps)
  • Motor HP: 20 (HP is for reference only and should not be used to size drive)
  • Control Voltage: 120 V (+10%/-15%)/60 Hz (±3 Hz) standard (24 VDC, 24 VAC/60 Hz, 48 VAC/60 Hz, 120 VAC/50 Hz optional)
  • Crane Location: Indoor Only
  • X-Press Programming™ allows programming initial setup within seconds
  • IMPULSE•Link 4.1 — Basic and Wireless Diagnostics Systems (WDS) provide easy parameter management with your PC.
  • Overload capacity: 150% for 60 sec.
  • Crane Duty Classification: A to F Service
  • Certifications: UL, cUL, RoHs (CE available upon request)
  • Two-year manufacturers warranty
  • Fully tested prior to shipment
  • CertificationsUL, cUL, CSA, RoHs; CE available with filters
    Warranty3-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
