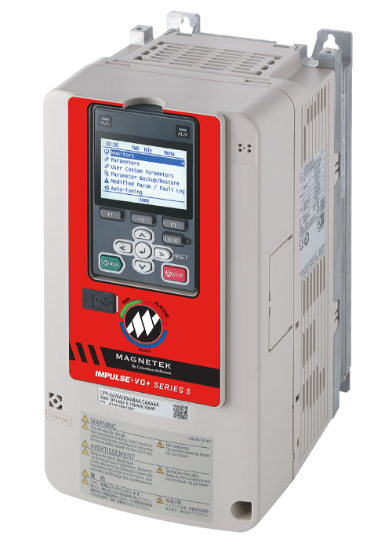

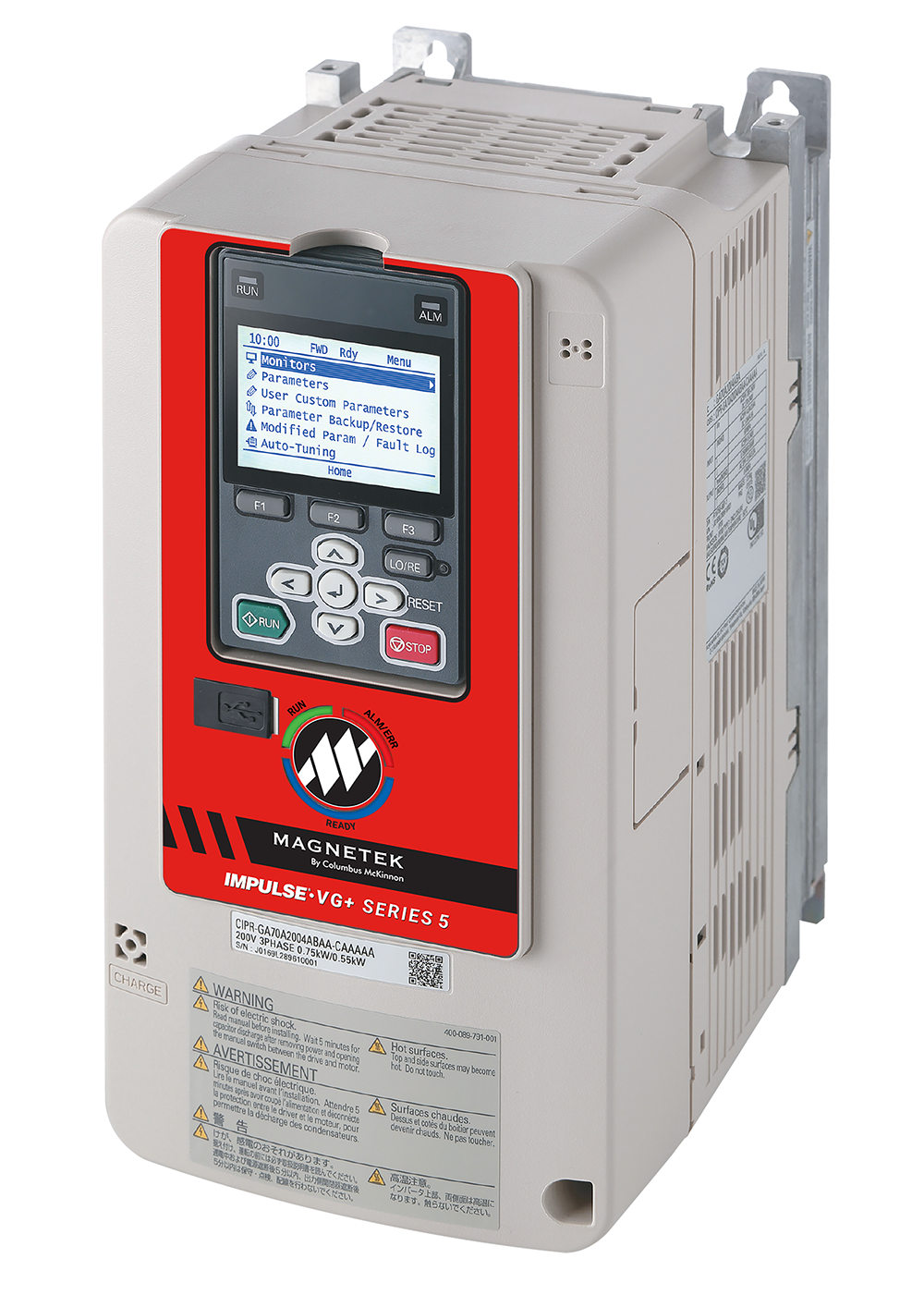

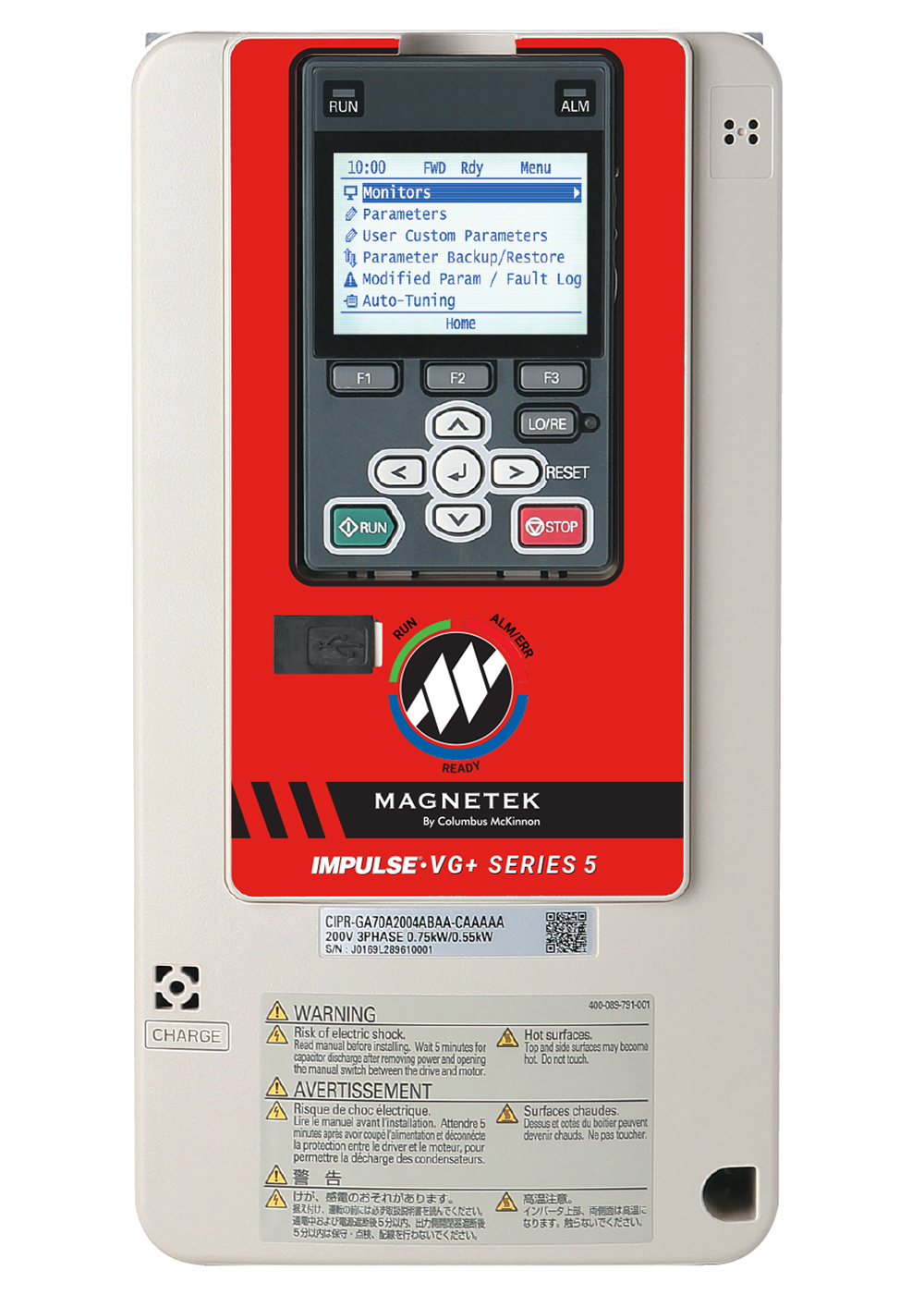

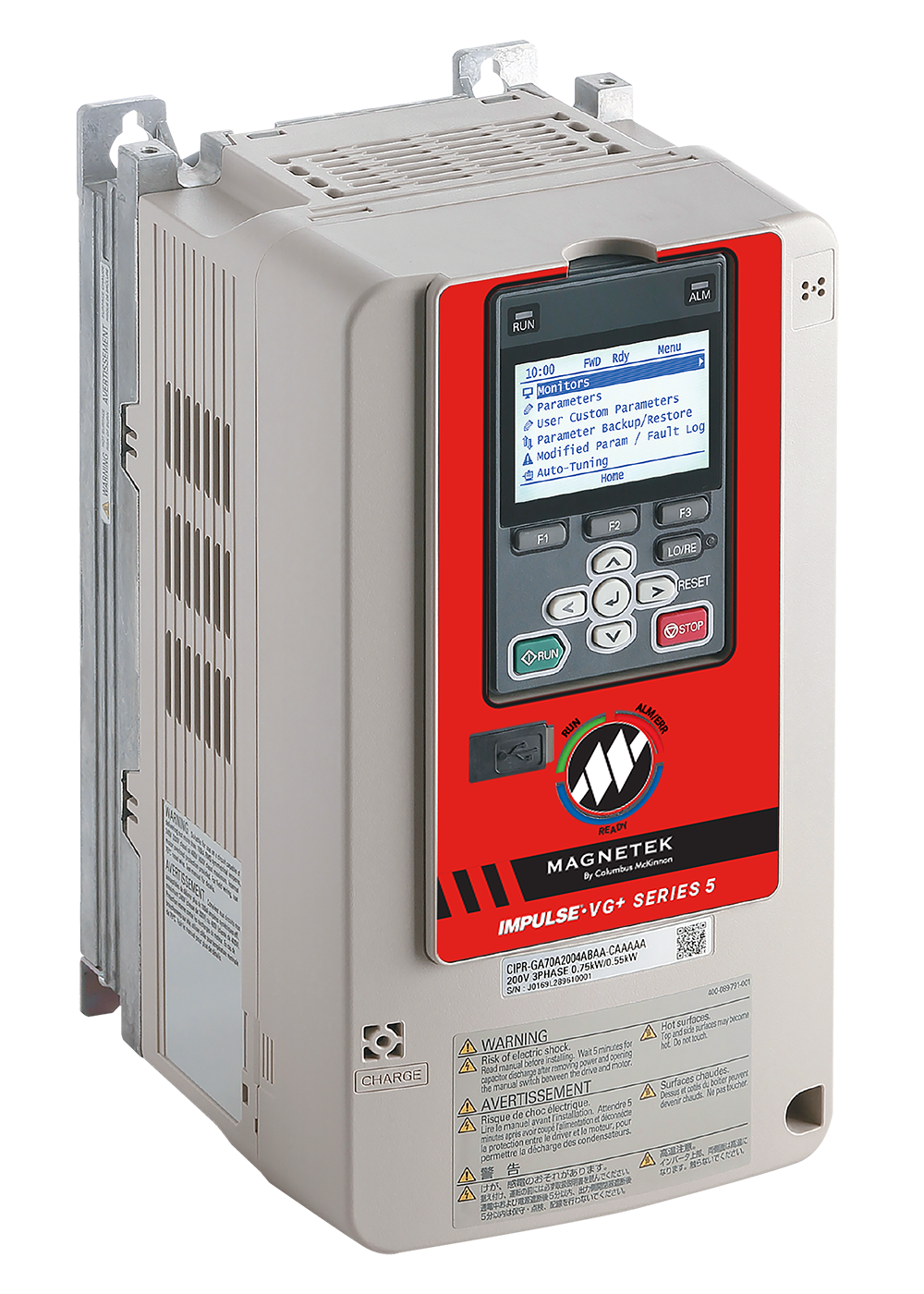

Magnetek IMPULSE VG+ Series 5 VFD, 14FLA, 4HP, 230VAC, Part No. 2014-VG+S5

Premium closed-loop crane control VFD with built-in sway control and precision positioning. Features high-resolution interface, advanced feedback control, and enhanced safety features in a compact design. Compatible with IMPULSE•Link 5 diagnostics.

Manufacturer: Magnetek

Availability: In stock

SKU: 2014-VG+S5

Manufacturer part number: 2014-VG+S5

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

Max. Motor Full Load Amps (FLA)

14 amps

Motor HP (For Reference Only)

4 hp (for reference only)

Voltage

230 VAC (3-phase)

Control Voltage *

$2,387.00

Qty:

Documents, Drawings, and Manuals

Brochure

Series 5 Impulse G+/VG+ Variable Frequency Drive Brochure

Manual

Series 5 Impulse G+/VG+ Variable Frequency Drive Manual

Products Specifications

Attribute name	Attribute value

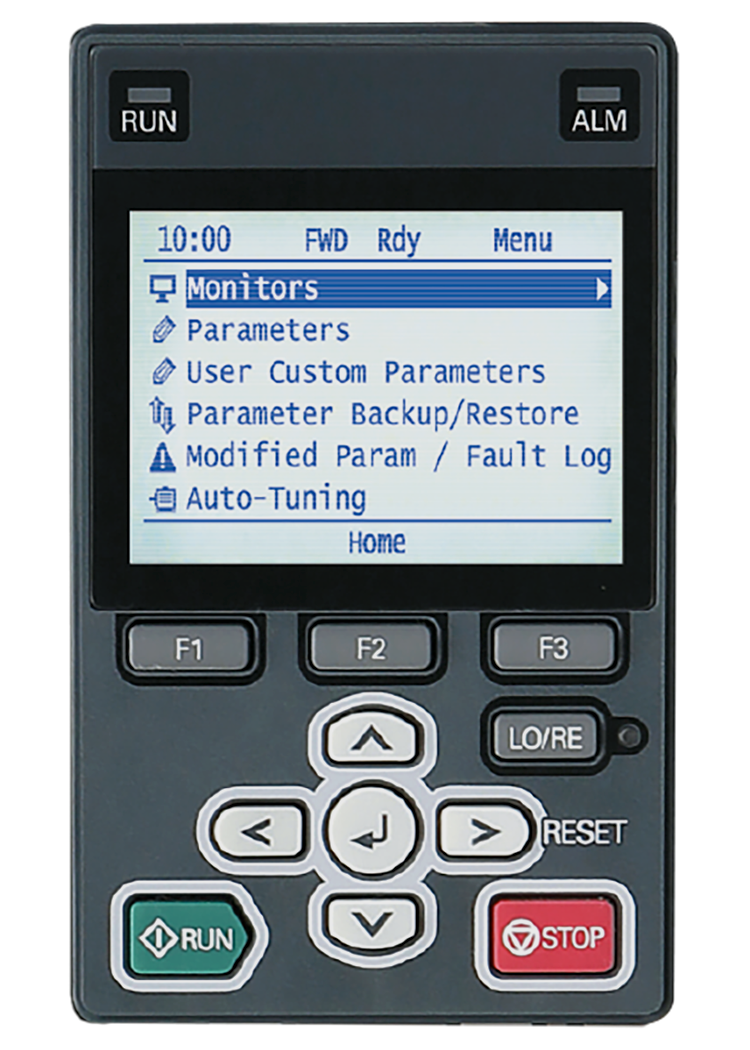

Features	Model Number: 2014-VG+S5 Power Rating: 4 HP \| 14 FLA \| 230 VAC (3-phase) Control Voltage: 24V DC standard (120 VAC optional) Speed Control: 1500:1 (Closed Loop Vector Control) Overload Capacity: 150% for 60 seconds Temperature Range: 14°F to 140°F Service Rating: CMAA Class A-F *Safety Features* SIL3 rated Safe Torque Off protection Integrated load monitoring - no external load cells required Built-in sway control technology Advanced brake monitoring and testing *Advanced Control & Diagnostics* High-resolution digital interface with simplified menus Time-stamped fault logging and diagnostics IMPULSE•Link 5 compatible for remote monitoring 45% more compact than previous generation
Certifications	UL, cUL, CSA, RoHs; CE available with filters
Warranty	3-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
