| Features | - Model Number: ZLTX-4L-3S-VRX
- System Type: ZLTX 4 Lever 3 Speed System
- Radio Frequency: 430-440 MHz with automatic frequency search
- Operating Range: Up to 100 meters (328 feet)
- Enclosure Protection: NEMA 4 (IP66) rating for both transmitter and receiver
- Transmitter Weight (with batteries): Approximately 1.0 kg (2.2 lbs)
- Transmitter Dimensions: 229mm (L) x 141.5mm (W) x 129.2mm (H)
- Receiver Dimensions: 260mm (L) x 204mm (W) x 83mm (H)
- Standard Input Voltage: 100-240 VAC
- Relay Contact Rating: 250V @ 8 Amps
- Battery Life: Over 100 hours of continuous operation on four "AA" alkaline batteries
- Commands
- 4 lever system with 3 stepped levers for each motion
- E-Stop Button
- Push to pair button
- Standard Equipment Included

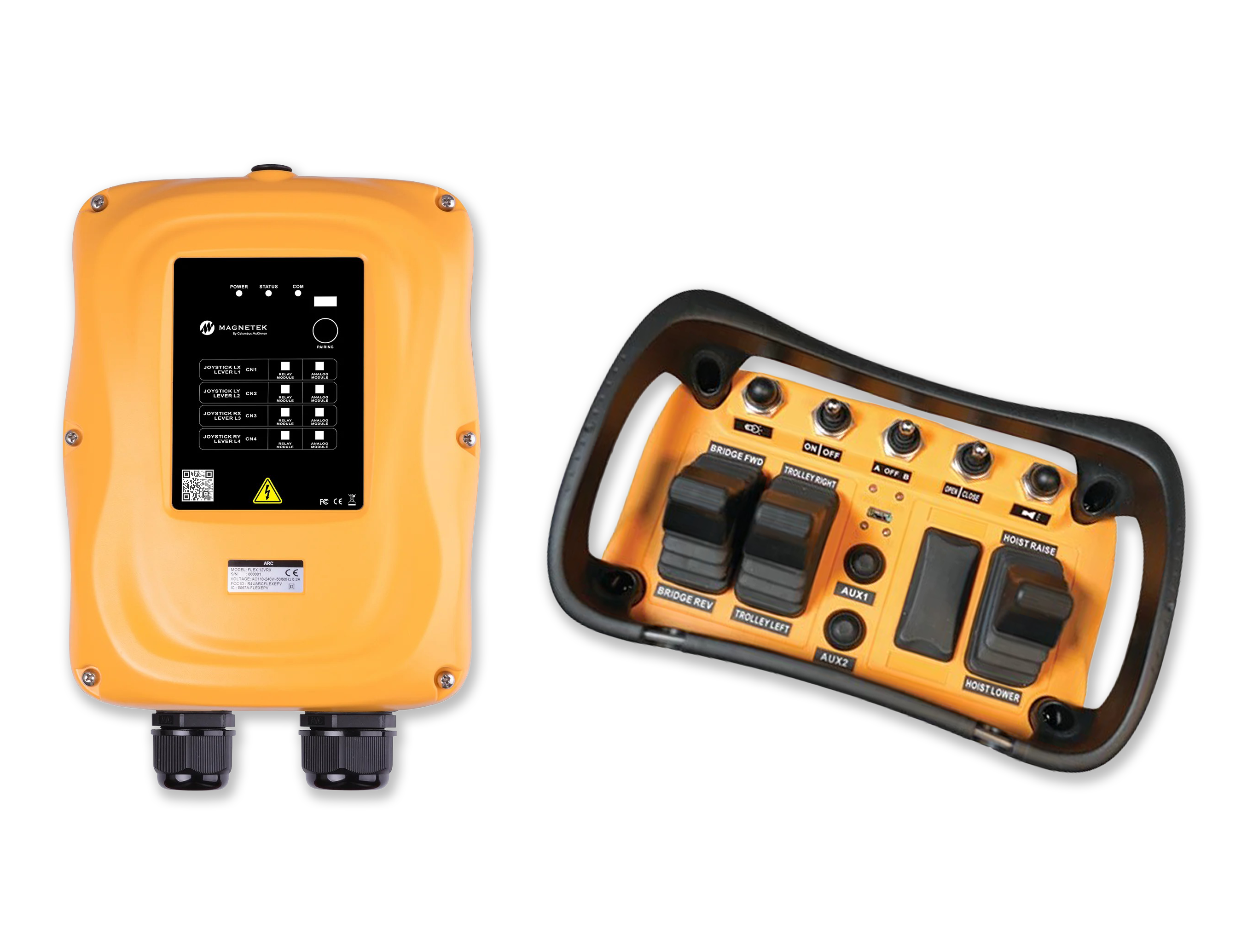

- (1) transmitter and (1) receiver
- (4) AA batteries
- (1) carrying shoulder strap and (1) waist belt
- (1) button/switch and (1) lever label sheet
- (1) receiver mounting bracket
- (1) 5.7-foot connection cable
- Ergonomic and Lightweight Design - The contoured design is comfortable for long shifts and repetitive tasks, weighing approximately 1.0 kg (2.2 lbs) with batteries.
- Flexible Lever Control - Stepped levers provide tactile feedback for precise speed changes, while analog/stepless levers offer fluid, proportional control.
- Advanced RF Technology - The system uses Frequency Hopping Spread Spectrum (FHSS) to automatically switch channels to avoid interference, and the standard VRX receiver is capable of two-way communication for system status and relay output feedback.
- Zero G Sensor - This unique safety feature prevents unintended equipment motion by disabling motion commands if the transmitter is accidentally dropped or tilted.
- Durable and Rugged Construction - The transmitter housing is made from a super-tough nylon and fiberglass composite with a NEMA 4 (IP66) rating, making it resistant to harsh environments, impact, chemicals, and heat. The levers are rated for over five million operating cycles.
- Wireless Pairing Functionality - This feature simplifies setup by allowing information and settings to be easily transferred between two transmitters or a transmitter and receiver, reducing downtime and the need for spare parts.
|
