OZ Alumi-Lite Davit Crane, 500 lb. Capacity, Carbon-Steel Brake Winch, Part No OZA500DAV

Availability: In stock

SKU: OZA500DAV

Manufacturer part number: OZA500DAV

Lead Time (subject to change, call to verify): typically ships in 20-25 business days

Wire/Synthetic Rope Assemblies *

Lift * 3/16" Galvanized cable assembly with ball end fitting and swivel hook with latch.

Lift * 3/16" Stainless Steel cable assembly with ball end fitting and swivel hook with latch.

Lift * 3/16" Synthetic rope assembly with stainless steel swivel hook with latch.

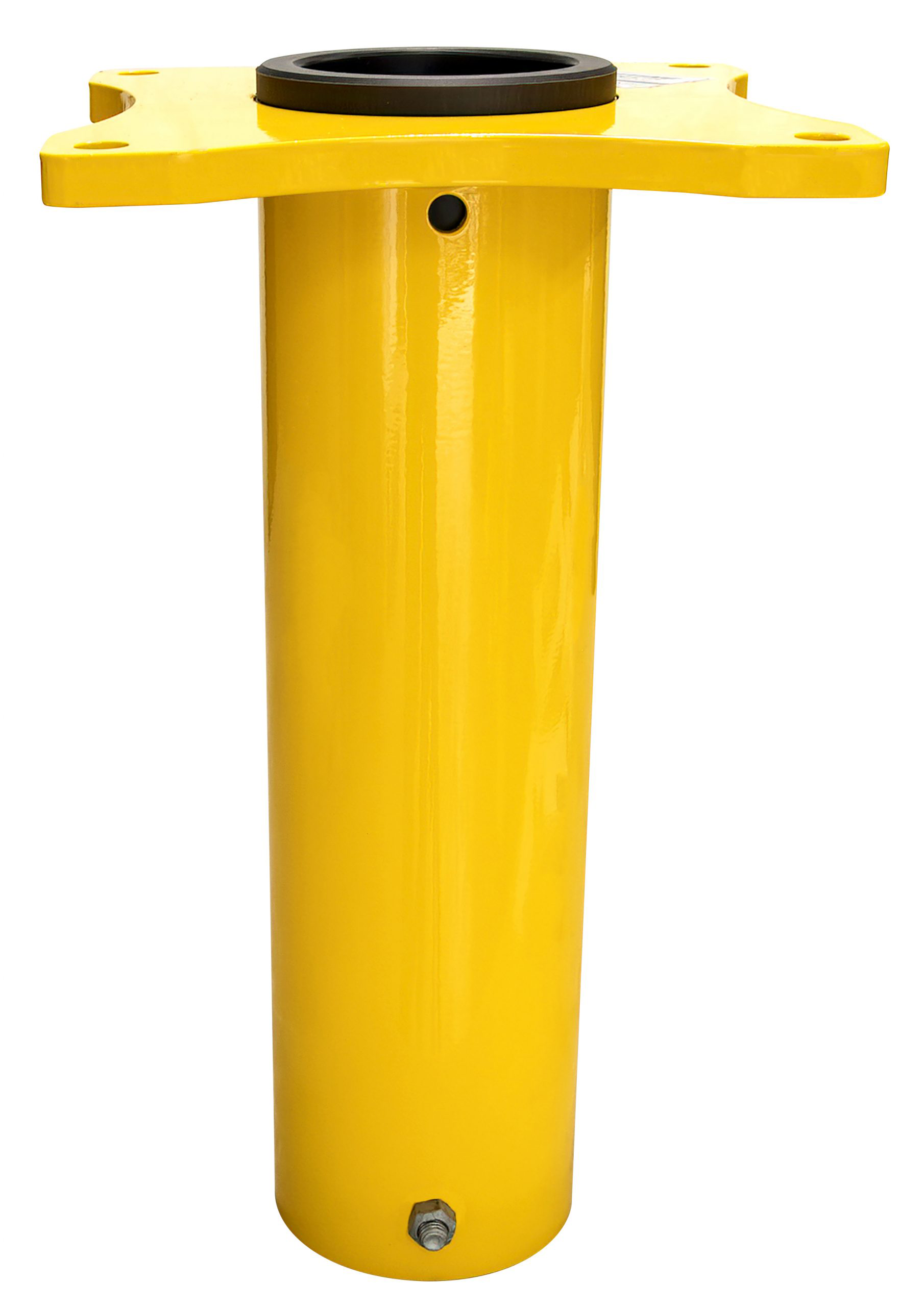

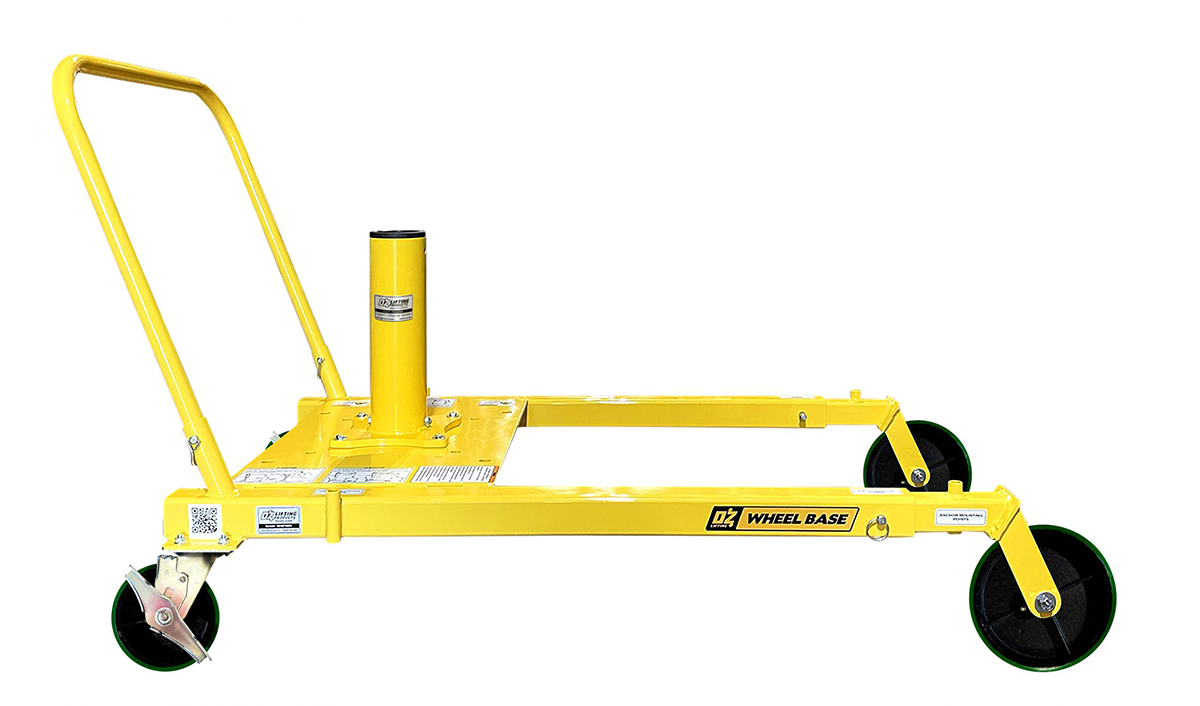

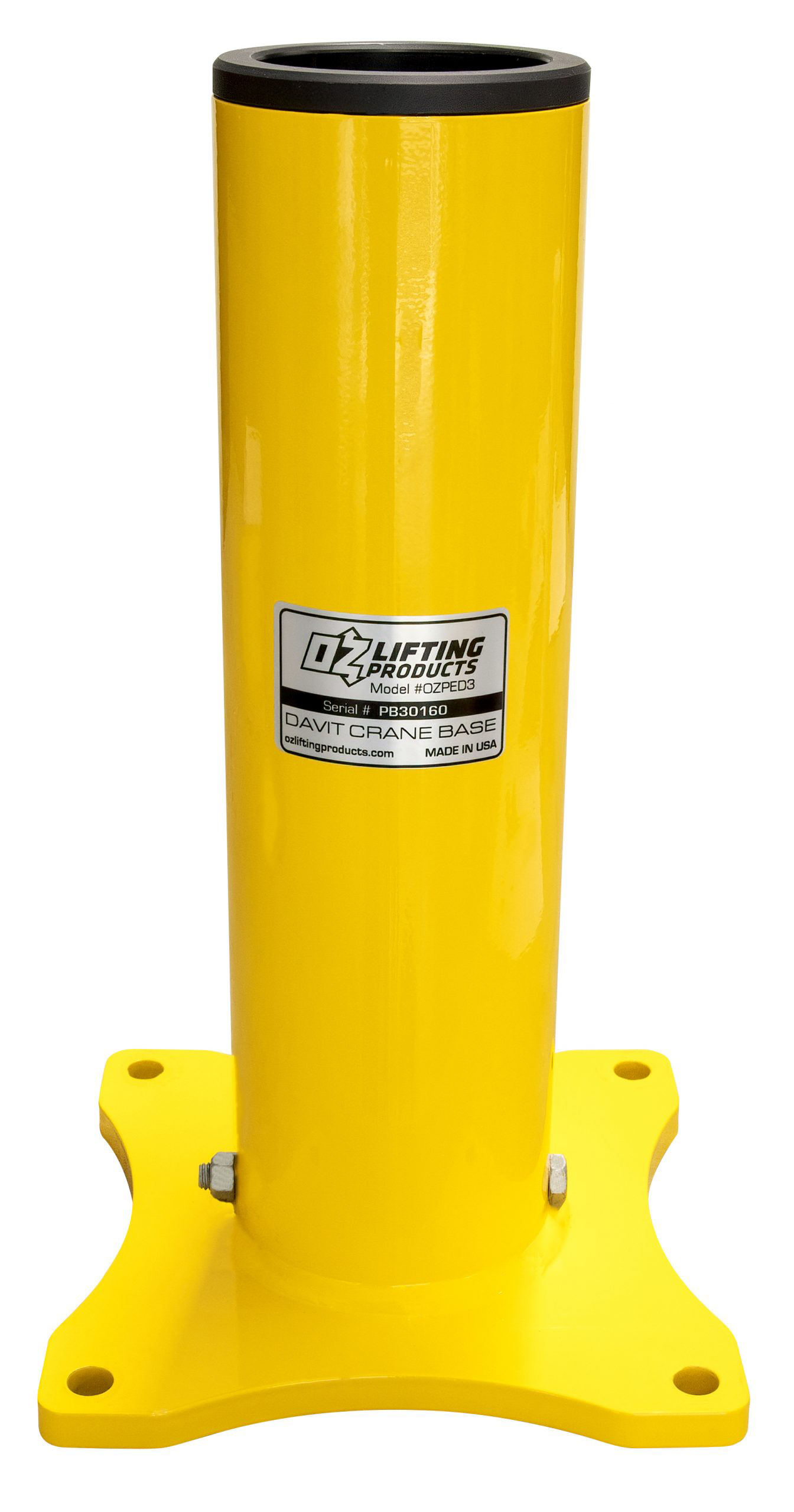

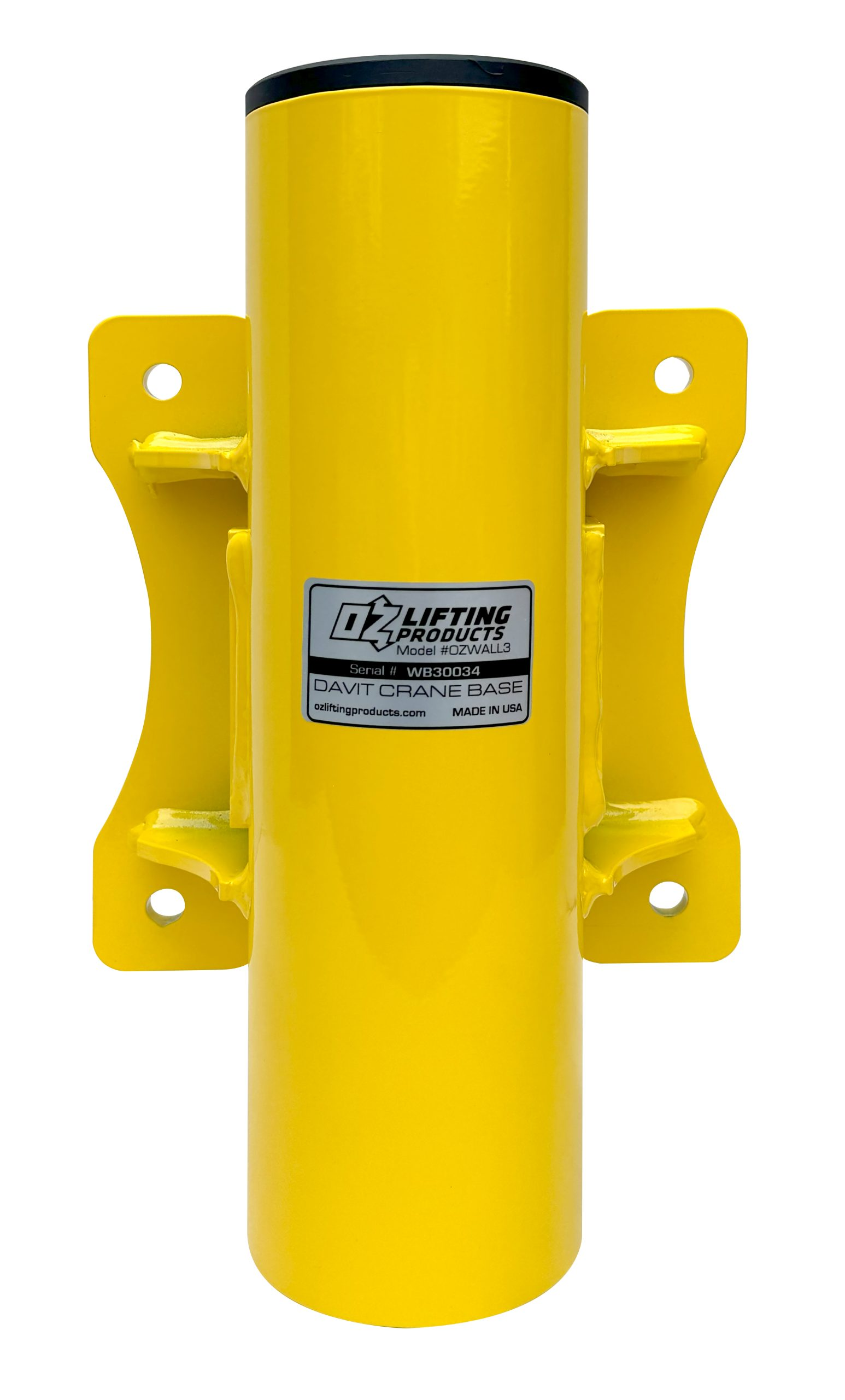

Base Options *

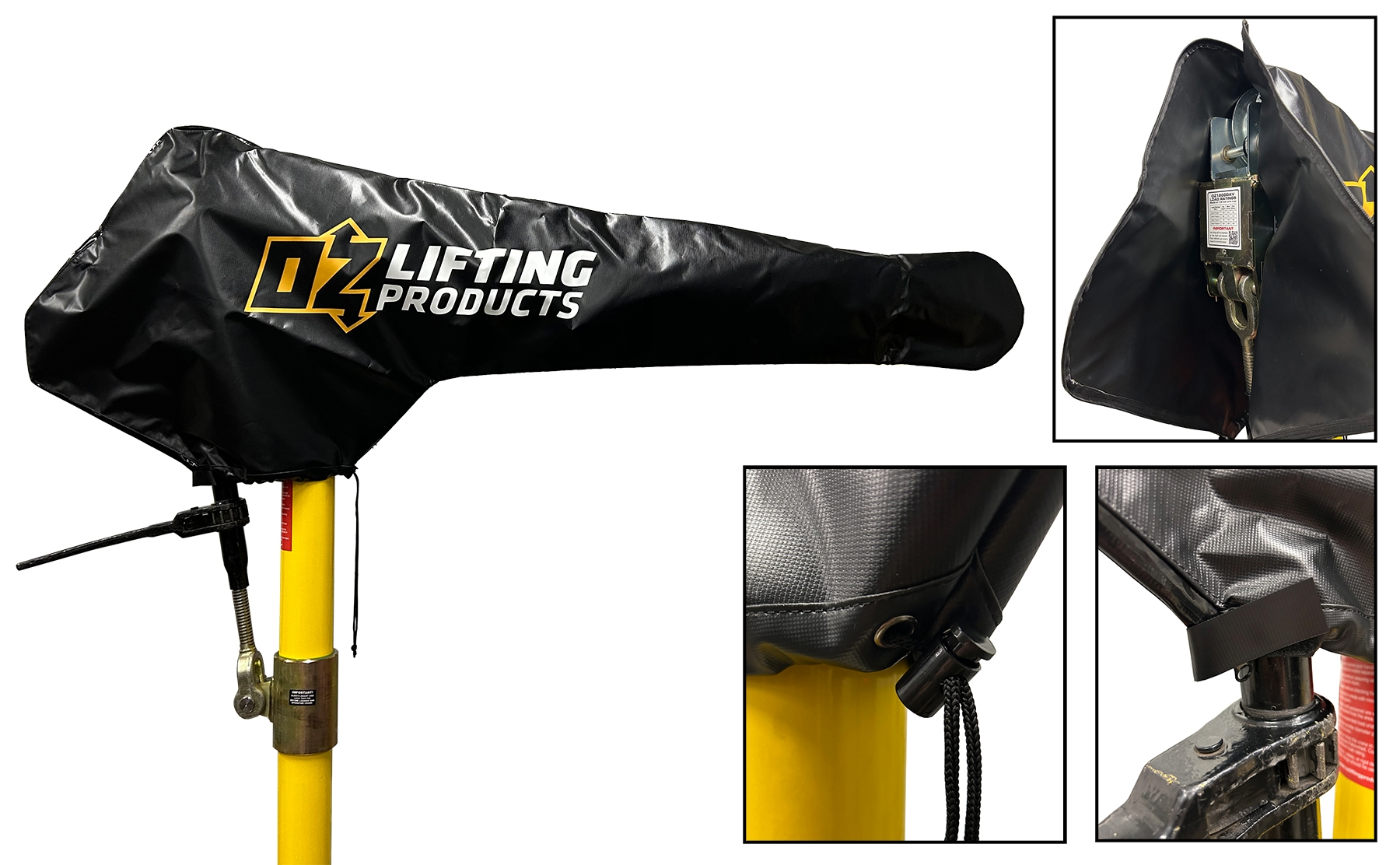

Davit Crane Accessories

$1,163.00

Qty:

Documents, Drawings, and Manuals

Brochure

OZ Alumi-Lite Davit Crane Brochure

Spec Sheet

OZ Alumi-Lite Davit Crane Spec Sheet

Manual

OZ Alumi-Lite Davit Crane Manual

Manual

OZ Lifting Products Winch Manual

Products Specifications

Attribute name	Attribute value

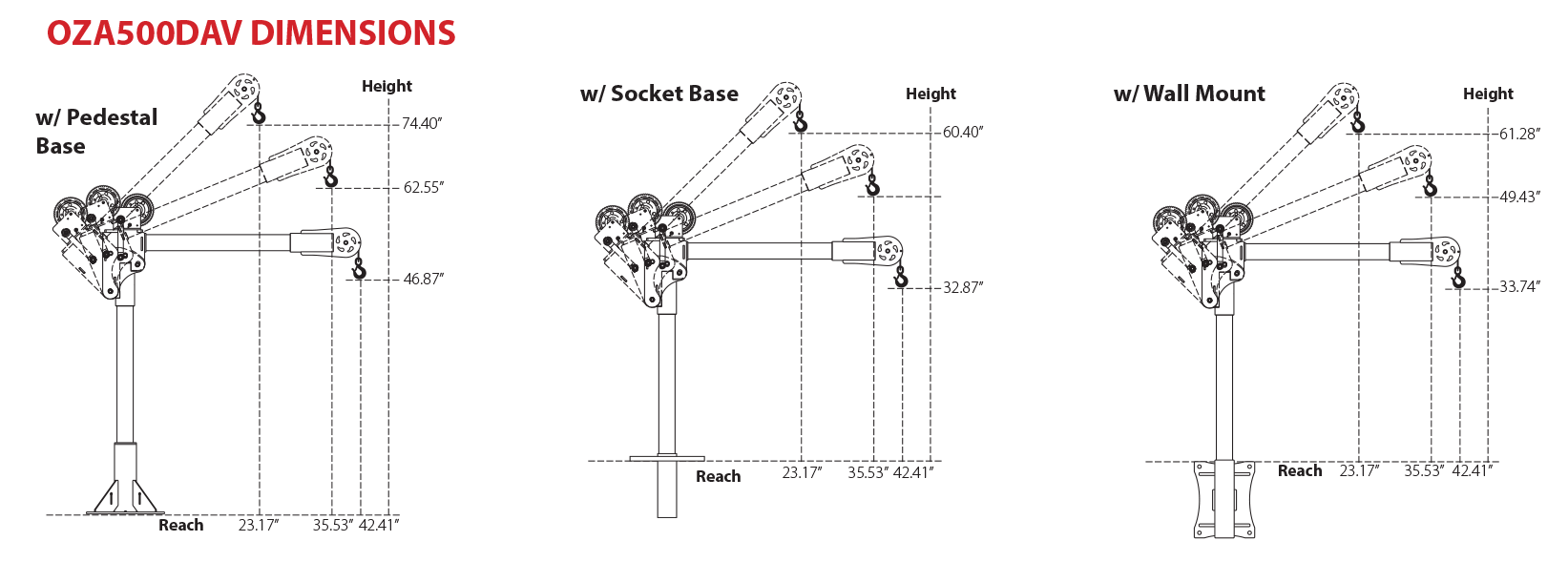

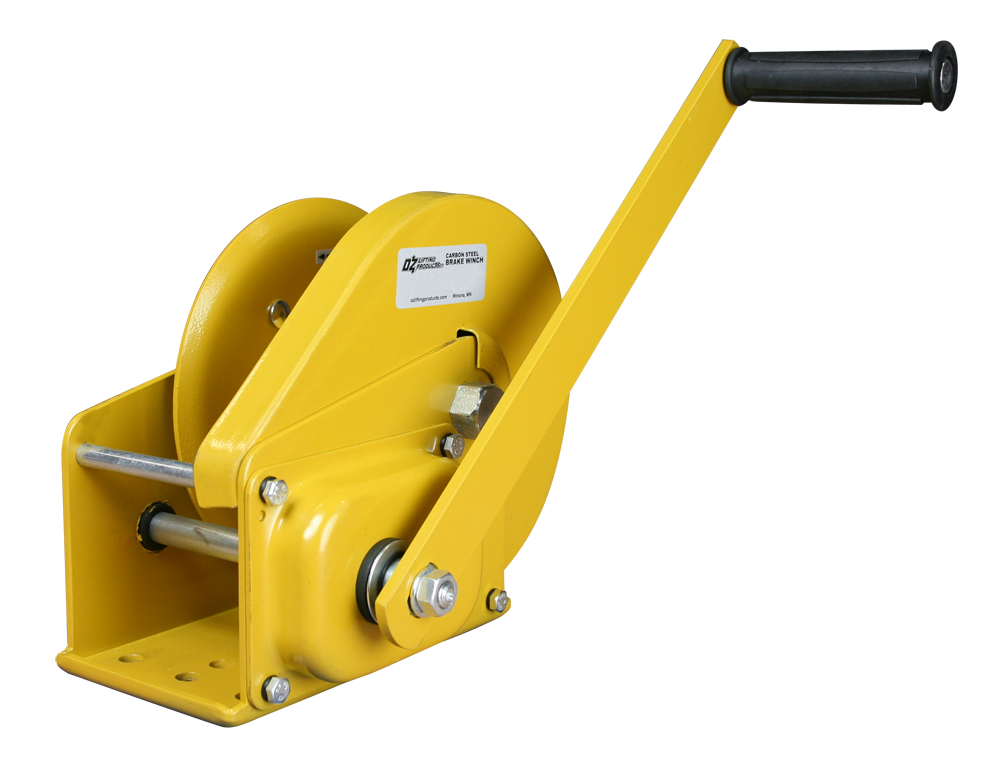

Features	Model: OZA500DAV Capacity: 500 lbs. Boom Reach Horizontal: 42.41 in. Boom Reach 45° Angle: 23.17 in. Lifting Height Horizontal: 32.87 in. (Socket Base) / 46.87 in. (Pedestal Base) / 33.74 in. (Wall Mount) Lifting Height 45° Angle: 60.40 in. (Socket Base) / 74.40 in. (Pedestal Base) / 61.28 in. (Wall Mount) OZ Davit Cranes are portable and versatile cranes that can be used for load handling across various industries. Aluminum Construction - Lightweight, aerospace-grade aluminum construction. Truly Portable Design - Can be completely assembled and disassembled without tools, with a total weight of less than 40 lbs (without winch and cable). 3 Different Boom Height Adjustments - Easy-to-use pin adjustment allows the boom to be adjusted between 4 different positions from horizontal to 45° angle. 360-degree rotation of crane on sleeve bearing. Durable powder coat finish. DIN-Rated hand winch equipped standard with a load-holding, weatherproof Weston brake (Cable assembly sold separately).
Warranty	2-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Made in the USA
