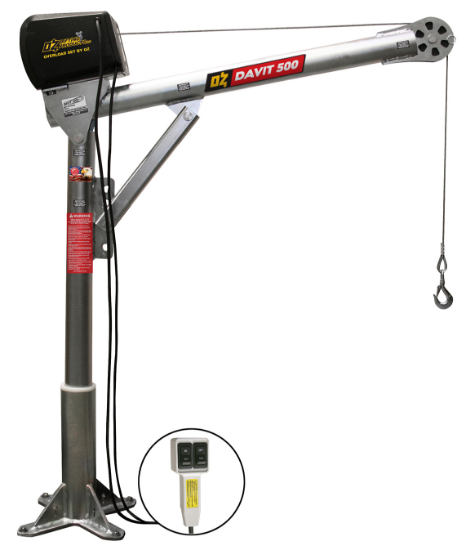

OZ Steel Davit Crane, 500 lb. Capacity, 110V AC Electric Winch, Part No OZ500DAV-ACW

Availability: In stock

SKU: OZ500DAV-ACW

Manufacturer part number: OZ500DAV-ACW

Lead Time (subject to change, call to verify): typically ships in 20-25 business days

Wire/Synthetic Rope Assemblies *

Lift * 3/16" Galvanized cable assembly with swivel hook and latch.

Lift * 3/16" Stainless Steel cable assembly with swivel hook and latch.

Lift * 3/16" Synthetic rope assembly with stainless steel swivel hook with latch.

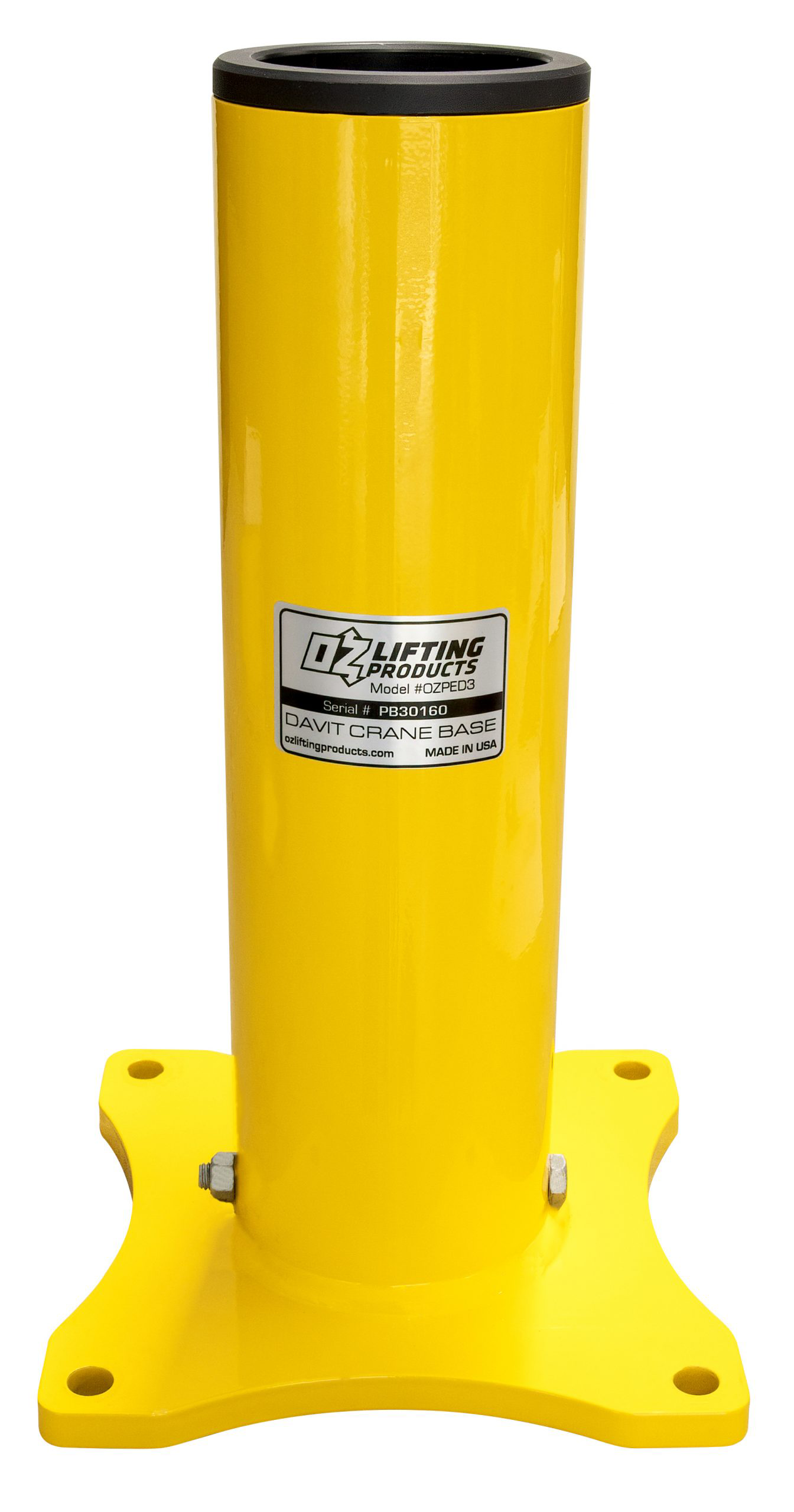

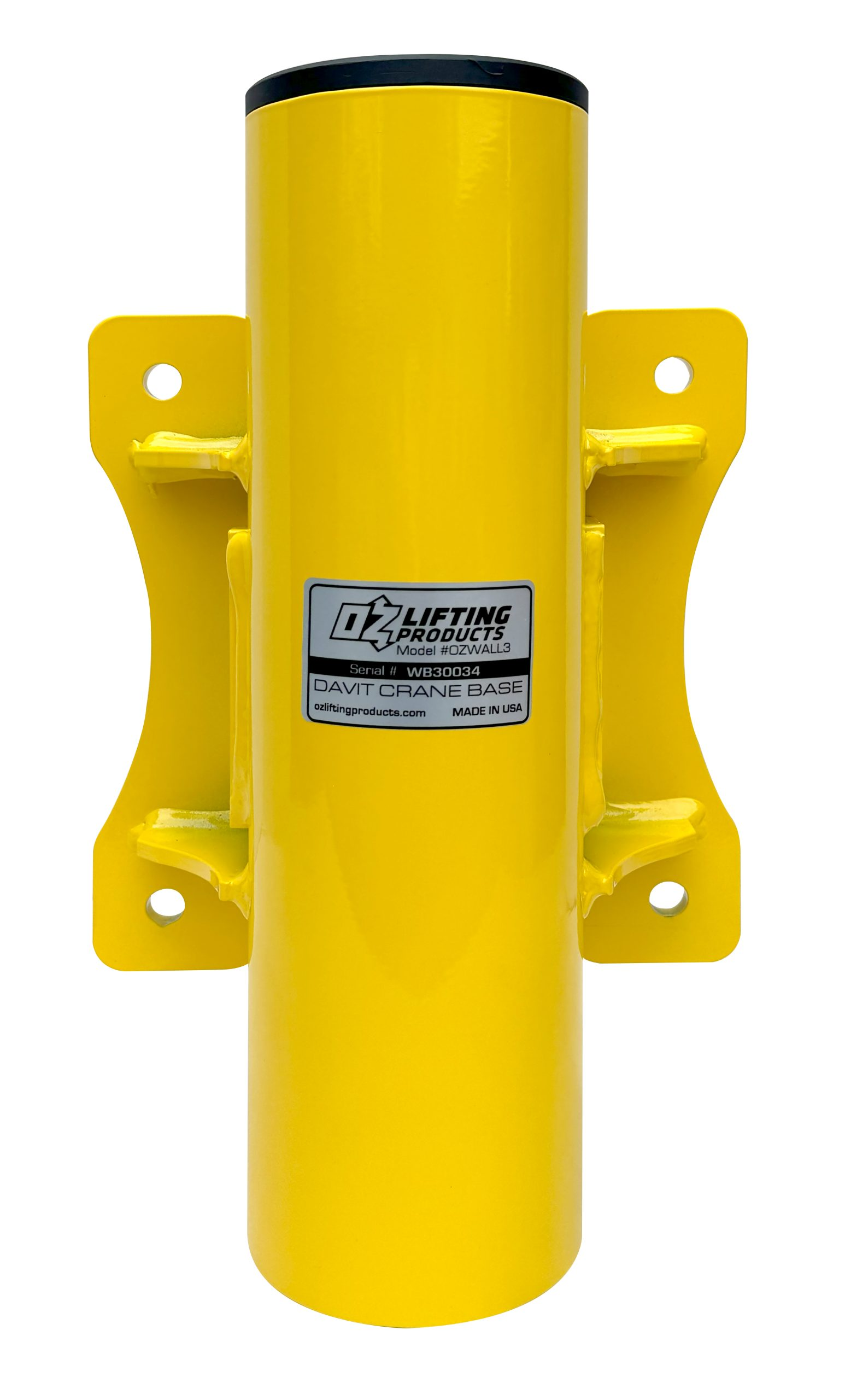

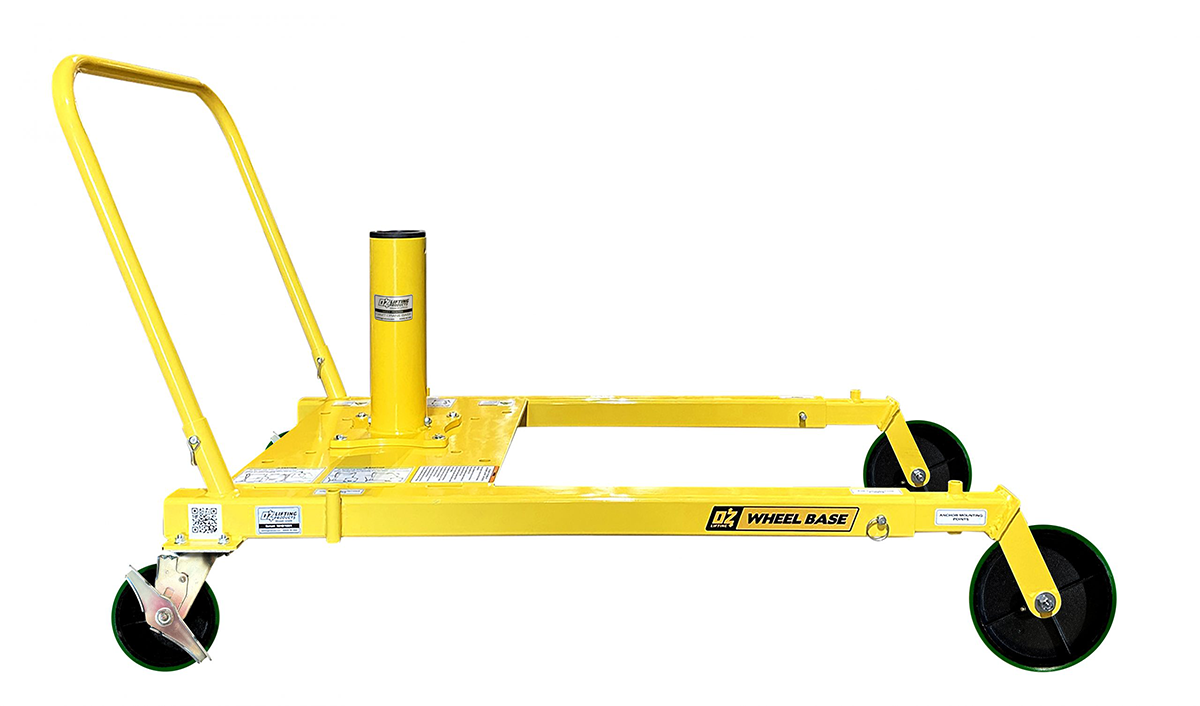

Base Options *

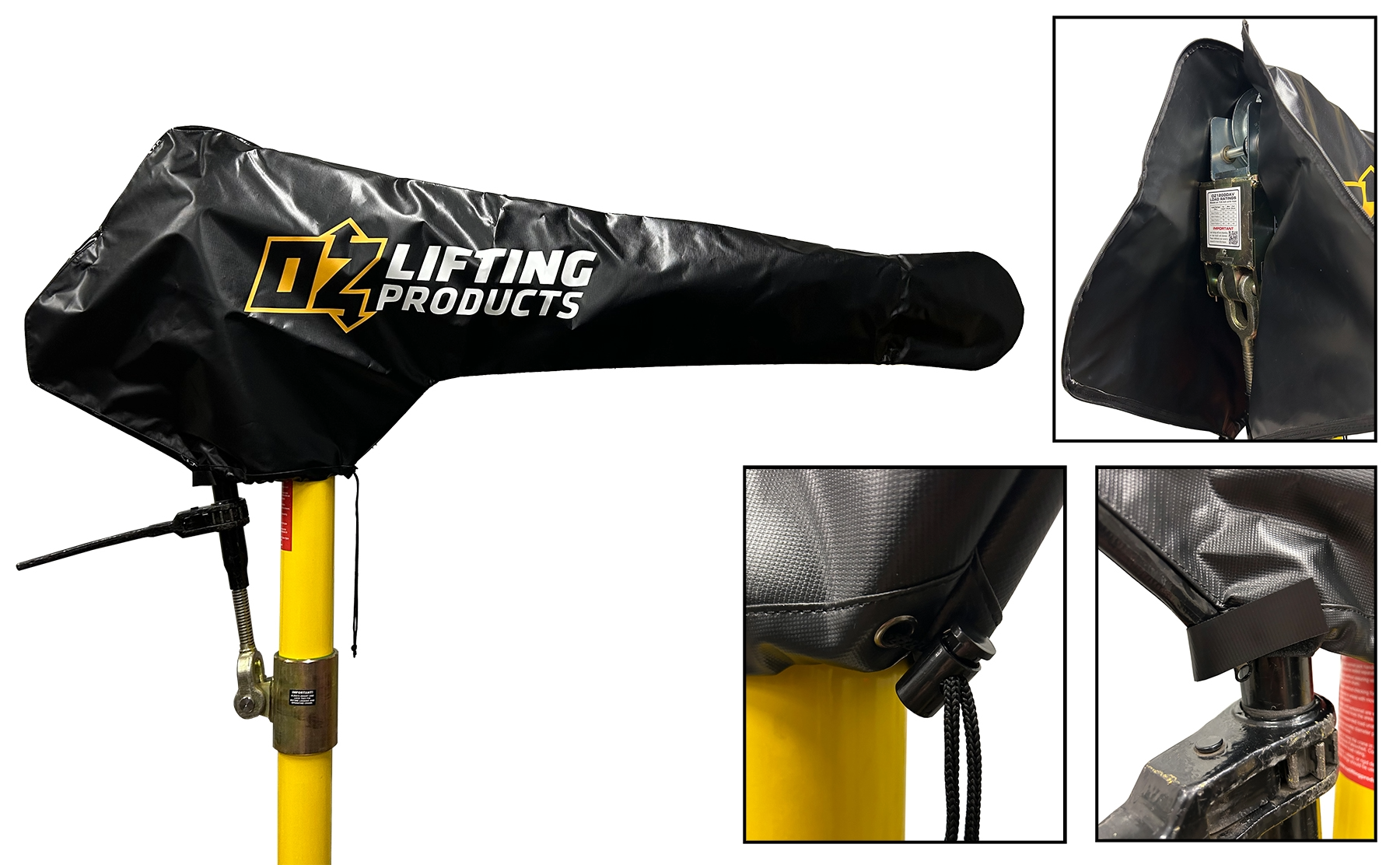

Davit Crane Accessories

$1,753.00

Qty:

Documents, Drawings, and Manuals

Brochure

OZ Steel Davit Crane Brochure

Spec Sheet

OZ Steel Davit Crane Spec Sheet

Manual

OZ Steel Davit Crane Manual

Manual

OZ Lifting Products Winch Manual

Products Specifications

Attribute name	Attribute value

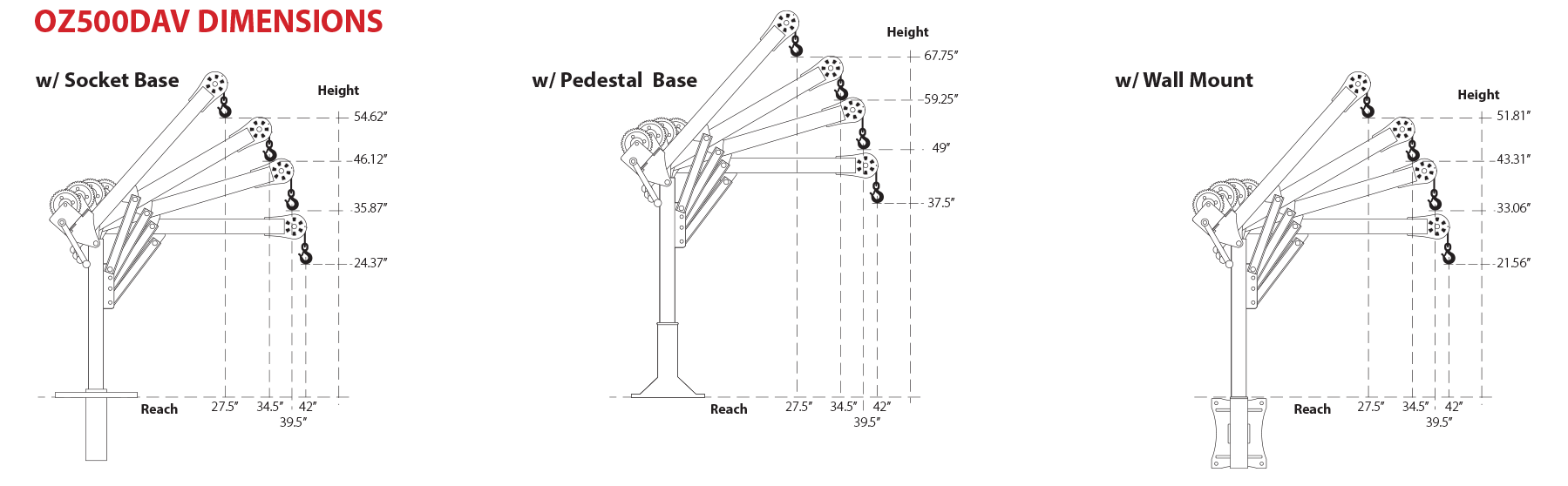

Features	Model: OZ500DAV-ACW Capacity: 500 lbs. Boom Reach Horizontal: 42 in. Boom Reach 45° Angle: 27.5 in. Lifting Height Horizontal: 24.37 in. (Socket Base) / 37.5 in. (Pedestal Base) / 21.56 in. (Wall Mount) Lifting Height 45° Angle: 54.62 in. (Socket Base) / 67.75 in. (Pedestal Base) / 51.81 in. (Wall Mount) OZ Davit Cranes are portable and versatile cranes that can be used for load handling across various industries. 4 Different Boom Height Adjustments - Easy-to-use pin adjustment allows the boom to be adjusted between 4 different positions from horizontal to 45° angle. 360-degree rotation of crane on sleeve bearing. Corrosion-resistant, zinc-plated finish. DIN-Rated hand winch equipped standard with a load-holding, weatherproof Weston brake (Cable assembly sold separately).
Warranty	2-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Made in the USA
