OZ Tele-Pro Davit Crane, 500 lb. Capacity, 110V AC Electric Winch, Part No OZTP500DAV-ACW

Availability: In stock

SKU: OZTP500DAV-ACW

Manufacturer part number: OZTP500DAV-ACW

Lead Time (subject to change, call to verify): typically ships in 20-25 business days

Base Options *

Davit Crane Accessories

$2,799.00

Qty:

Documents, Drawings, and Manuals

Brochure

OZ Tele-Pro Davit Crane Brochure

Spec Sheet

OZ Tele-Pro Davit Crane Spec Sheet

Manual

OZ Tele-Pro Davit Crane Manual

Manual

OZ Lifting Products Winch Manual

Products Specifications

Attribute name	Attribute value

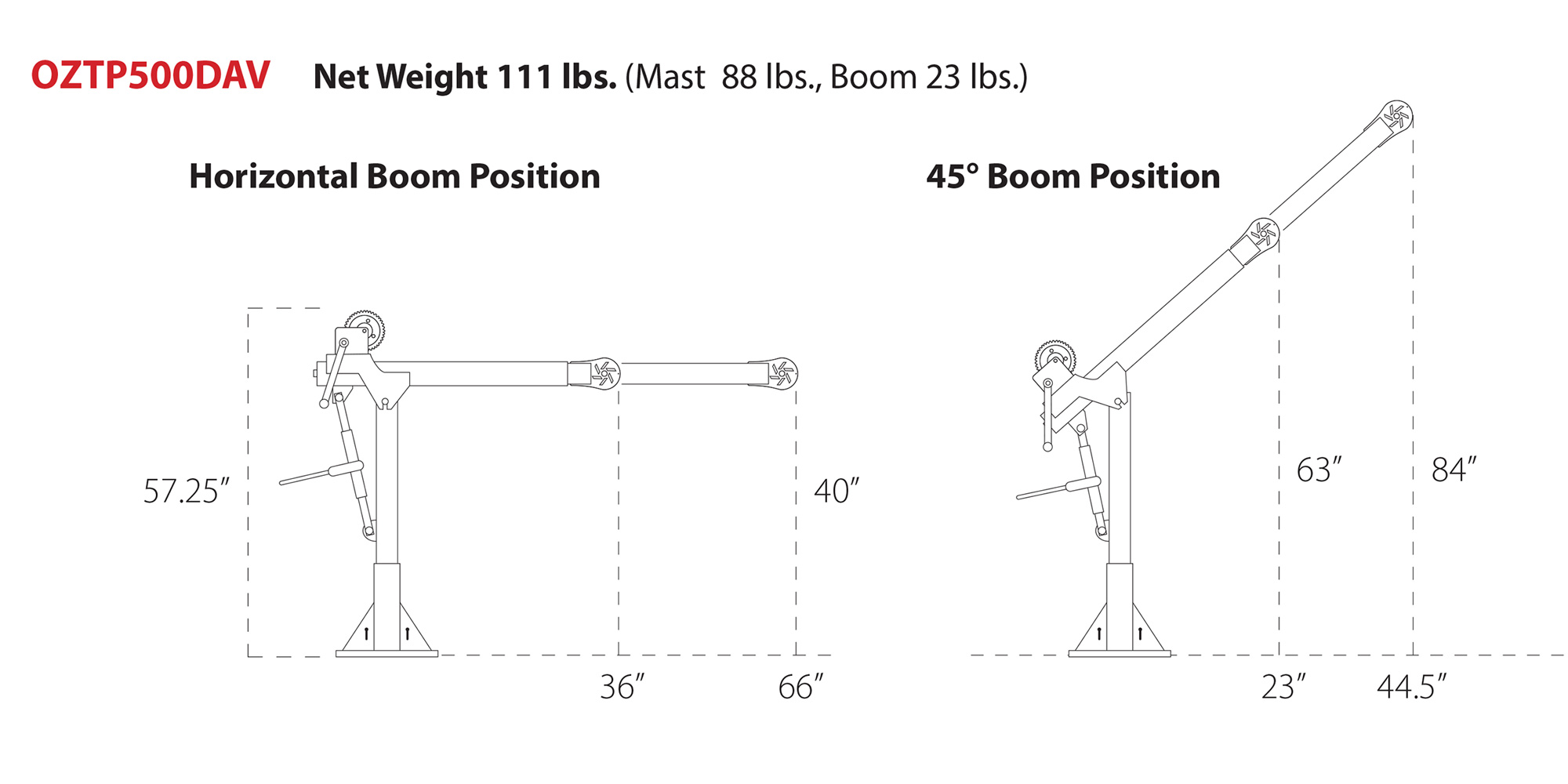

Features	Model: OZTP500DAV-ACW Capacity: 500 lbs. Boom Length Horizontal: 36 to 66 in. Boom Length 45° Angle: 23 to 44.5 in. Lifting Height Horizontal: 40 in. Lifting Height 45° Angle: 63 to 84 in. OZ Davit Cranes are portable and versatile cranes that can be used for load handling across various industries. Adjustable Under Load - The OZ TELE-PRO Davit Crane has a unique boom that is capable of being adjusted while under load. Both the angle and extension of the boom can be changed while the crane is under load. Telescoping Boom - Adjusted using quick connect winch handle or drill drive adapter (included). Adjustable Boom Angle - Ratchet screw jack adjusts boom between horizontal position and 45° angle. 360-degree rotation of crane on sleeve bearing. Smart Latch technology at boom/mast connection. Corrosion-resistant, zinc-plated finish. DIN-Rated hand winch equipped standard with a load-holding, weatherproof Weston brake (Cable assembly sold separately).
Warranty	2-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Made in the USA
