OZ XR Series Steel Davit Crane, 500 lb. Capacity, Carbon-Steel Brake Winch, Part No OZXR500DAV

Availability: In stock

SKU: OZXR500DAV

Manufacturer part number: OZXR500DAV

Lead Time (subject to change, call to verify): typically ships in 20-25 business days

Wire/Synthetic Rope Assemblies *

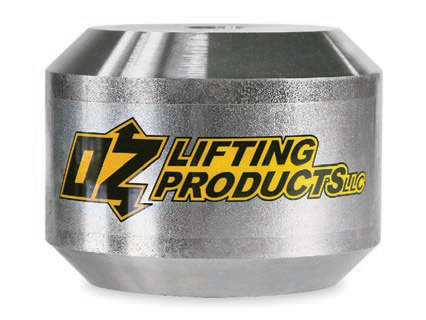

Lift * 3/16" Galvanized cable assembly with ball end fitting and swivel hook with latch.

Lift * 3/16" Stainless Steel cable assembly with ball end fitting and swivel hook with latch.

Lift * 3/16" Synthetic rope assembly with stainless steel swivel hook with latch.

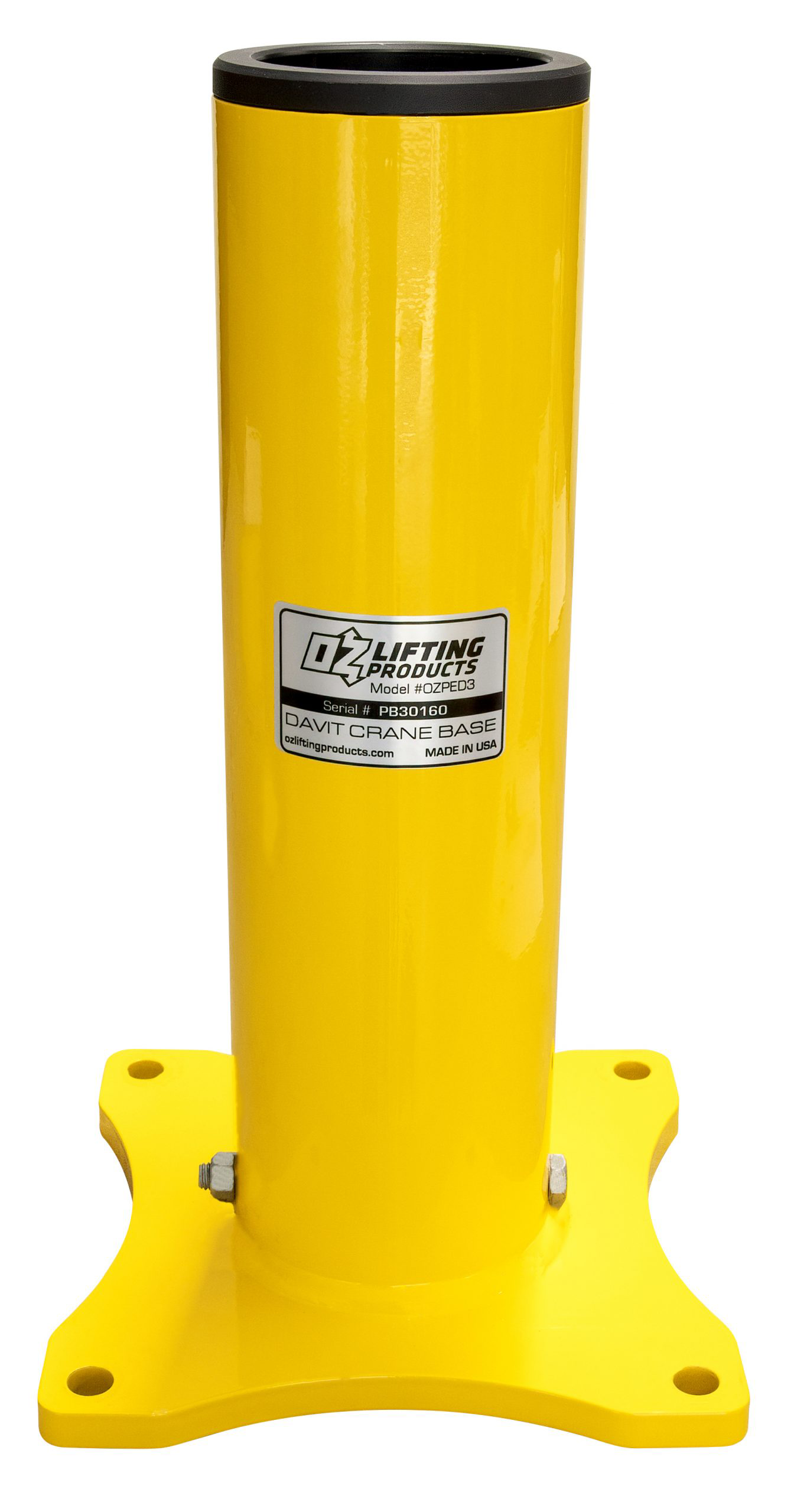

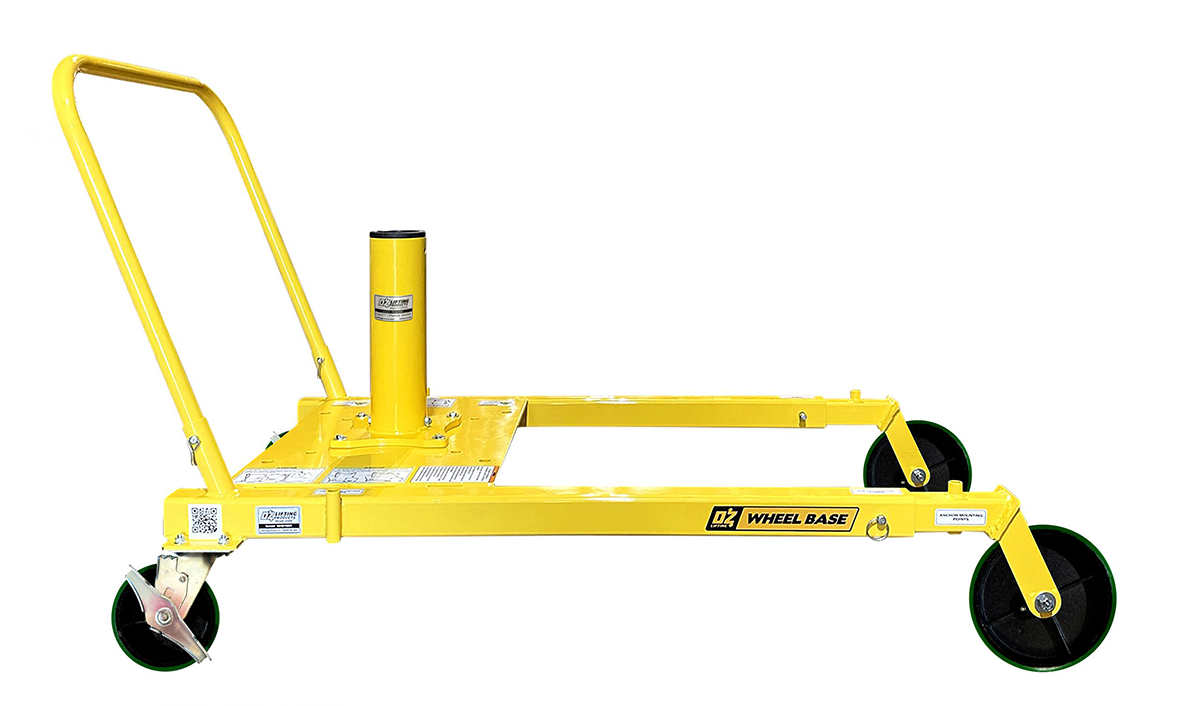

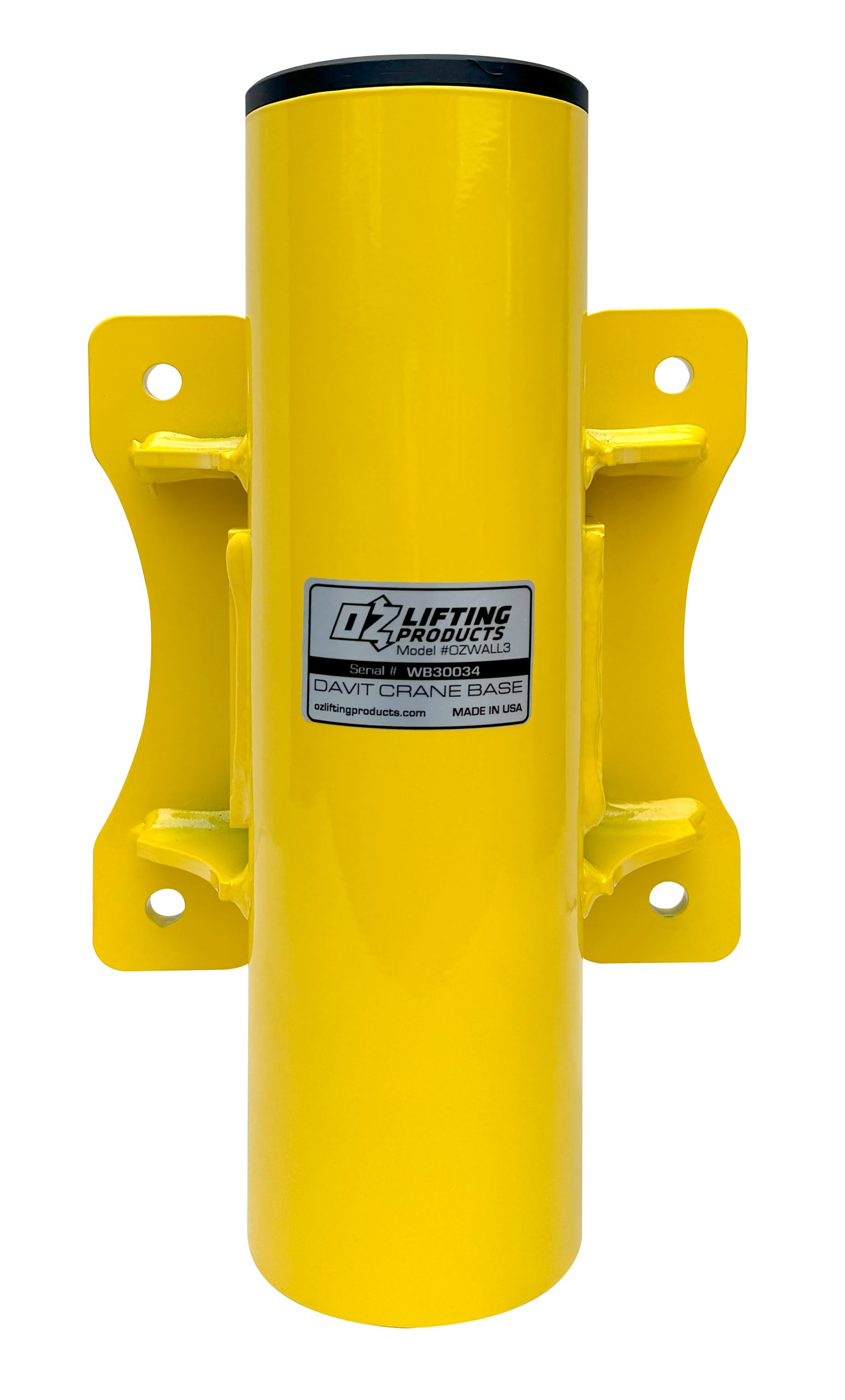

Base Options *

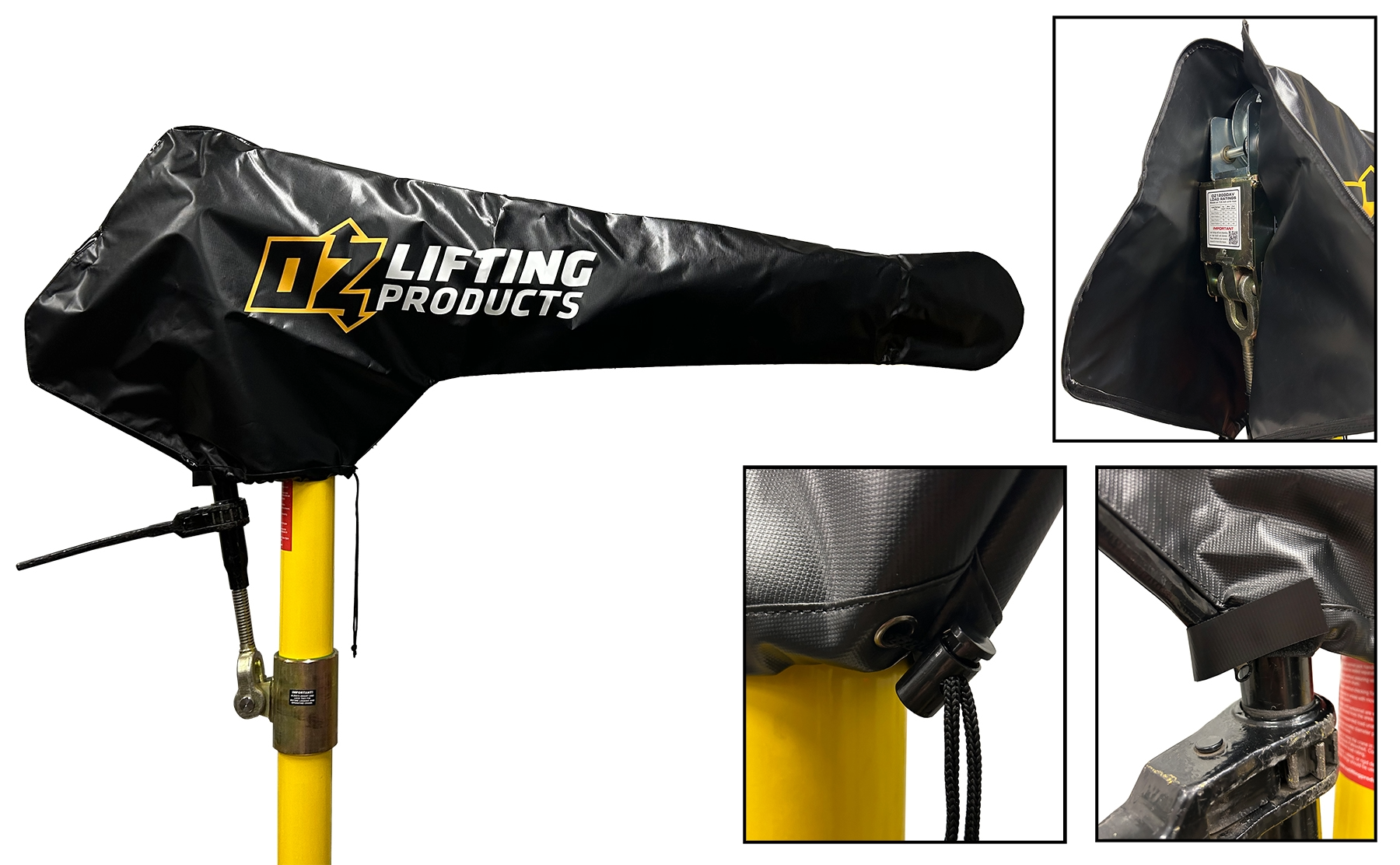

Davit Crane Accessories

$1,405.00

Qty:

Documents, Drawings, and Manuals

Brochure

OZ XR Series Steel Davit Crane Brochure

Spec Sheet

OZ XR Series Steel Davit Crane Spec Sheet

Manual

OZ XR Series Steel Davit Crane Manual

Manual

OZ Lifting Products Winch Manual

Products Specifications

Attribute name	Attribute value

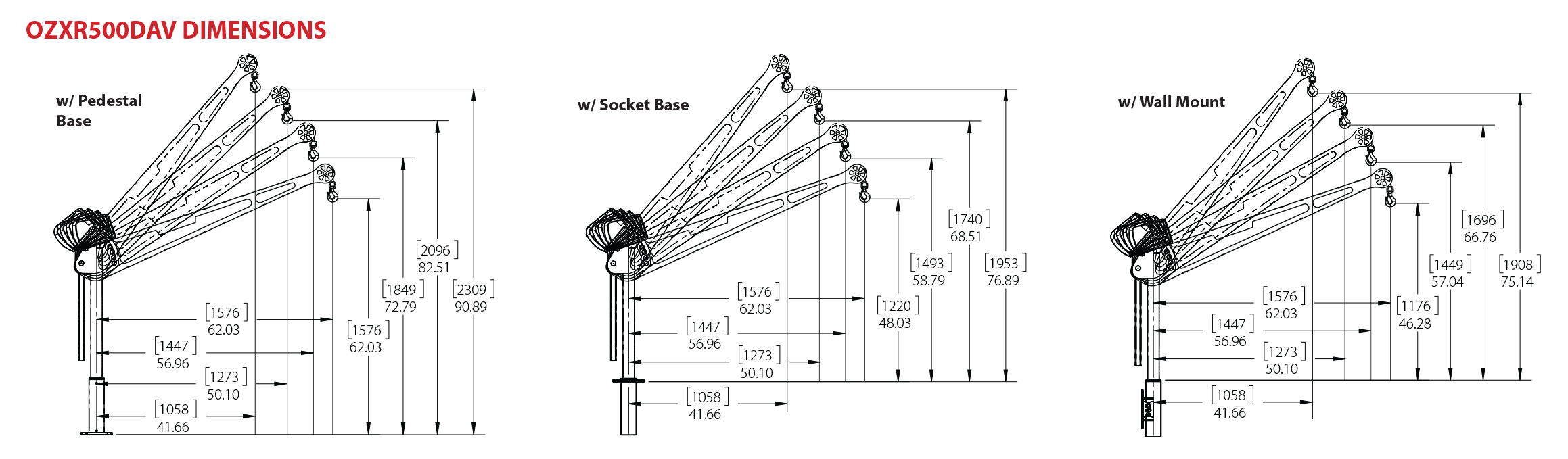

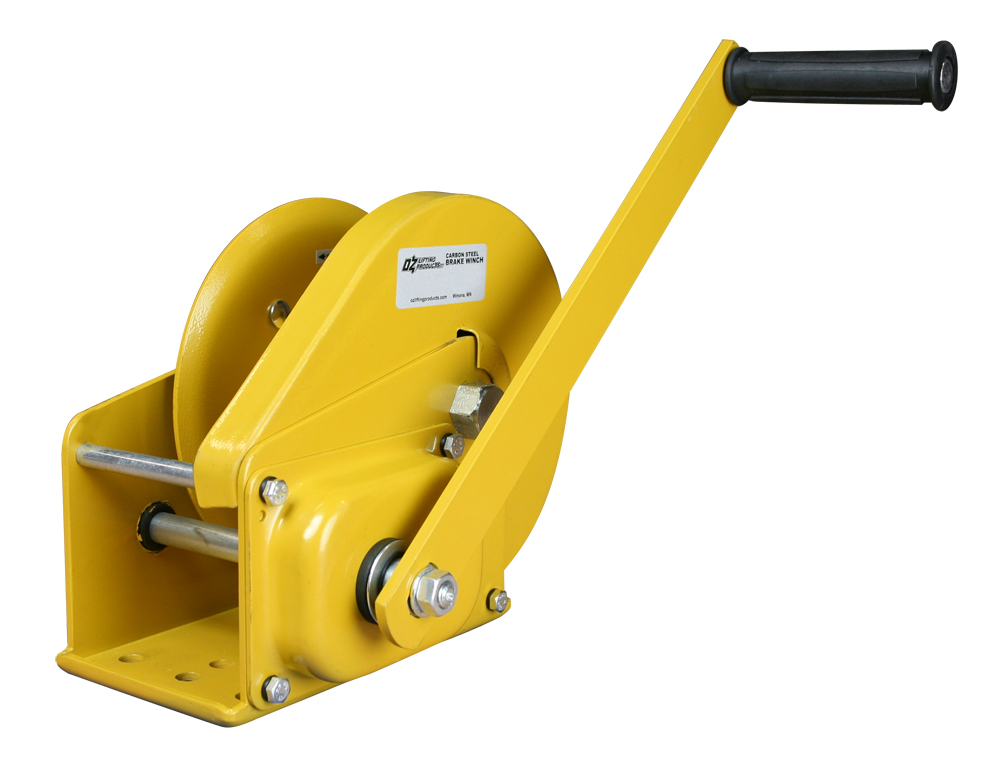

Features	Model: OZXR500DAV Capacity: 500 lbs. Boom Reach @ Max. Height (46° Angle): 41.66 in. Boom Reach @ Min. Height (16° Angle): 62.03 in. Lifting Height @ Max. Height (46° Angle): 90.89 in. Lifting Height @ Min. Height (16° Angle): 62.03 in. OZ Davit Cranes are portable and versatile cranes that can be used for load handling across various industries. Max Load Capacity at Any Angle - Maintains maximum weight capacity in all positions. 4 Different Boom Height Adjustments - Easy-to-use pin adjustment allows the boom to be adjusted between 4 different angles from 16° to 46°. 360-degree rotation of crane on sleeve bearing. Durable steel construction with powder coat finish. DIN-Rated hand winch equipped standard with a load-holding, weatherproof Weston brake (Cable assembly sold separately).
Warranty	2-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of Origin	Made in the USA
